X-Treme

Stiff Arm Backhoe Attachment

Our X-treme Stiff Arm Backhoe is an excellent tool for digging ditches, removing stumps and digging footings. With the option of adding a thumb, you can move logs, chunks of cement and most anything else. Buckets come in sizes of 8″, 12″, 16″, 20″ and 24″. The bucket is powered by an American made 3″ x 16″ cylinder. With 7′ of digging depth and 14,000 lbs. of ripping force, it is an aggressive digging machine.

Available Colors:

Gray

Specs

Model:

Will This Fit My Skid Steer?

Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!

CLICK HERE >

Product FamilyStiff Arm Backhoe
ProductXBHSTA
DescriptionStiff Arm Backhoe
Digging Depth7"
Bucket Sizes8" to 24"
Cylinder Size3" x 16"
Weight (lbs)394
NotesOptional Thumb Attachment

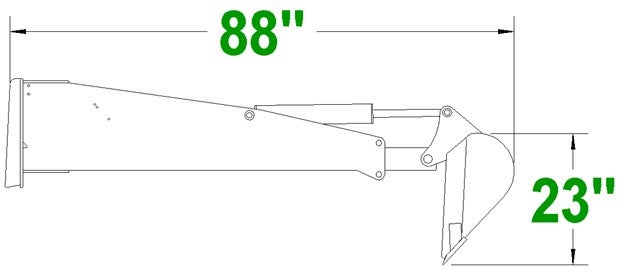

Diagram:


Diagram of product
