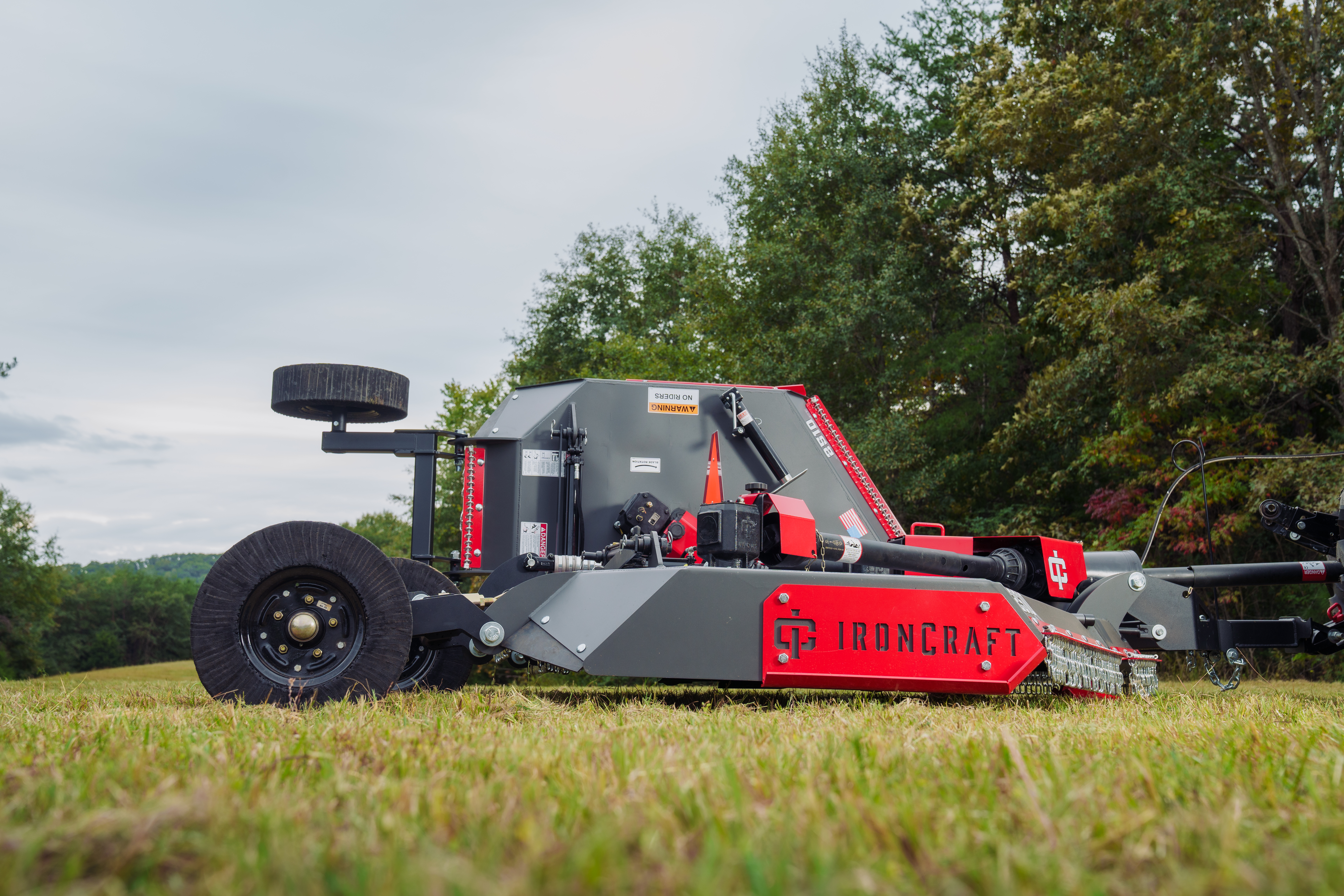

2510 Flex-Wing Cutter 10' Flex-Wing Cutter

The IronCraft 2510 Cutter is built for powerful performance with minimal horsepower. With a high-speed gearbox, heavy-duty materials, and an easy-to-clean flat top deck, it’s designed to handle tough terrain and keep maintenance simple. Plus, its narrow transport width means you can get wherever the work takes you.

View Literature

View Manual

View Video

Available Colors:

Gray

,

Orange

,

Red

,

Green

,

Blue

Model:

We've Got You Covered.

Find a Dealer near you to get started.

Dealer Locator

Become a Dealer

Product Family	2510 Series
Product	2510
Description	10' Flex-Wing Cutter
RPM	540
HP Required	25 - 60 PTO
Working Width	123"
Overall Width	132"
Transport Width	96.5"
Tongue Weight	830 lbs
Weight (lbs)	2400 lbs with 4-20" Laminated Tires
Cutting Height	1-3/4" to 11-1/2"
Cutting Capacity	up to 2"
Deck Thickness	11 GA
Deck Height	11"
Side Bands	7 GA
Suspension	1 Medium Duty Spring in Center Tailwheel Assembly
Skid Shoes	Replaceable
PTO Drive Shaft	ASAE CAT 5
Wing Drive PTO	ASAE CAT 4
Driveline Protection	Slip Clutch
Blade Holder	Round Stump Jumper
Gearbox Rating	175 HP
Outboard Gearbox Rating	75 HP
Wing Flex	20 Degrees Down to 85 Degrees Up
Blades	1/2" x 3" Uplift
Blade Overlap	5-1/4"
Wheel Type	20" Laminated
Hitch Type	Swivel Pivot Self Leveling
Gearbox Warranty	5 Year Limited
Safety Tow Chain	Standard
Guarding Options	Single Row Chains Standard
FPM	14600

Machine Width:	N/A
Machine Height:	N/A
Machine Length:	N/A
Wheelbase:	N/A
Operating Weight:	N/A
Tipping Load:	N/A
Operating Capacity:	N/A
Operating Capacity (50%):	N/A
Hydraulic Horsepower (Standard Flow):	N/A
Hydraulic Horsepower (High Flow):	N/A

3-Point Tractor

25-60 PTO
