X-treme Root Grapple Attachment
The X-treme Root Grapple is the grapple of choice for those who need an attachment that will hold up in severe applications. It can handle more material and is more rugged that our other grapples. It’s built from 5/8″ thick steel plate on the top, 1/2″ on bottom, and incorporates 4″ square tubing. It also features enclosed hydraulic cylinders and shafts.
Available Colors:
Gray
Specs
Model:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG63 |
| Description | X-TREME ROOT GRAPPLE, 63” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 63" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |

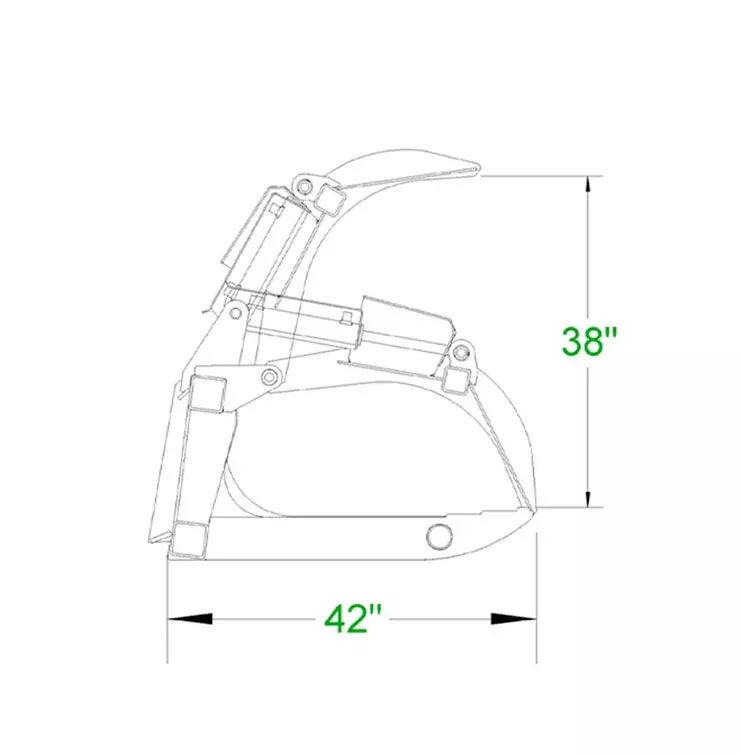

Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG66 |
| Description | X-TREME ROOT GRAPPLE, 66” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 66" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG72 |
| Description | X-TREME ROOT GRAPPLE, 72” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 72" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG78 |
| Description | X-TREME ROOT GRAPPLE, 78” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 78" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG81 |
| Description | X-TREME ROOT GRAPPLE, 81” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 81" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG84 |
| Description | X-TREME ROOT GRAPPLE, 84” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 84" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG90 |
| Description | X-TREME ROOT GRAPPLE, 90” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 90" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
| Product Family | X-Treme Duty Root Grapple |
| Product | XRG96 |
| Description | X-TREME ROOT GRAPPLE, 96” |
| Thickness of square tubing | 4" |
| Plate Thickness | 5/8" top plate & 1/2" bottom plate |
| Cylinder Size | 2" bore x 10" stroke |
| RPM | Recommend for machines 65 HP and above |
| Working Width | 96" |
| Notes | Hydraulic lines routed inside the tubing to prevent tears, optional spacer tines |
Diagram:
