Skid Steer & Loader
Attachments
IronCraft
X-treme Rock Grapple Attachment
Our X-Treme Rock Grapple is great for sifting through dirt in order to remove rocks. With the tines set at 3” apart, you pick up most everything but the dirt. You can also pick up large rocks, logs, brush or just about anything else by use of the grapples. We use twin 2” bore by 10” stroke cylinders rated at 4,000 psi on all of our grapples. 65 HP and up.
Available Colors:
Gray
Specs
Model:
| Product Family | X-treme Duty Rock Grapple |
| Product | XROKG60 |
| Description | X-TREME DUTY ROCK GRAPPLE, 60” |
| Tine Spacing | 3" |
| Tine Thickness | 5/8" |
| Wear Bars & Side Edge | Bolt on Sides |
| Cylinder Size | 2" x 10" rated at 4000 PSI |
| Working Width | 60" |
| Notes | Fully Welded Front Teeth Standard |

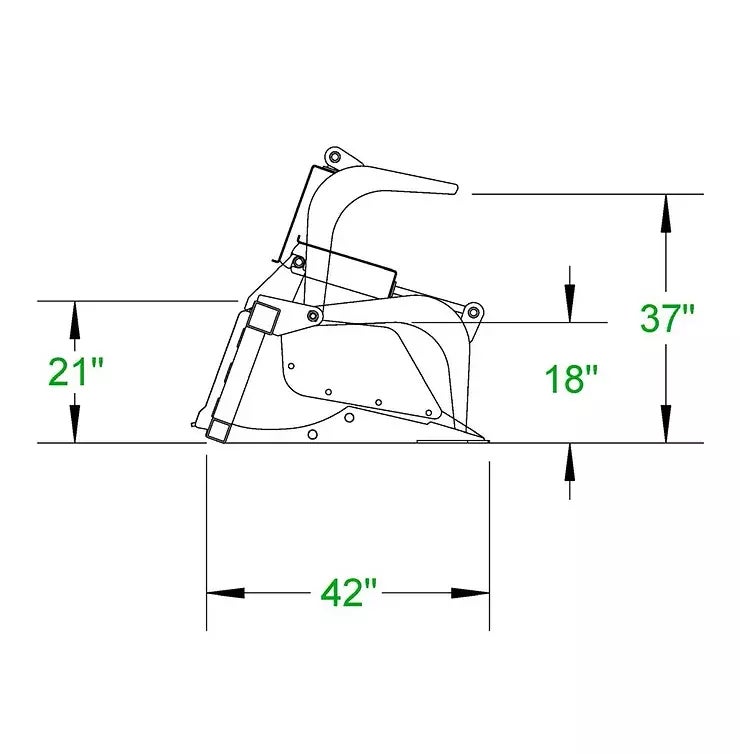

Diagram:
| Product Family | X-treme Duty Rock Grapple |
| Product | XROKG66 |
| Description | X-TREME DUTY ROCK GRAPPLE, 66” |
| Tine Spacing | 3" |
| Tine Thickness | 5/8" |
| Wear Bars & Side Edge | Bolt on Sides |
| Cylinder Size | 2" x 10" rated at 4000 PSI |
| Working Width | 66" |
| Notes | Fully Welded Front Teeth Standard |
Diagram:
| Product Family | X-treme Duty Rock Grapple |
| Product | XROKG72 |
| Description | X-TREME DUTY ROCK GRAPPLE, 72” |
| Tine Spacing | 3" |
| Tine Thickness | 5/8" |
| Wear Bars & Side Edge | Bolt on Sides |
| Cylinder Size | 2" x 10" rated at 4000 PSI |
| Working Width | 72" |
| Notes | Fully Welded Front Teeth Standard |
Diagram:
| Product Family | X-treme Duty Rock Grapple |
| Product | XROKG78 |
| Description | X-TREME DUTY ROCK GRAPPLE, 78” |
| Tine Spacing | 3" |
| Tine Thickness | 5/8" |
| Wear Bars & Side Edge | Bolt on Sides |
| Cylinder Size | 2" x 10" rated at 4000 PSI |
| Working Width | 78" |
| Notes | Fully Welded Front Teeth Standard |
Diagram:
| Product Family | X-treme Duty Rock Grapple |
| Product | XROKG81 |
| Description | X-TREME DUTY ROCK GRAPPLE, 81” |
| Tine Spacing | 3" |
| Tine Thickness | 5/8" |
| Wear Bars & Side Edge | Bolt on Sides |
| Cylinder Size | 2" x 10" rated at 4000 PSI |
| Working Width | 81" |
| Notes | Fully Welded Front Teeth Standard |
Diagram:
| Product Family | X-treme Duty Rock Grapple |
| Product | XROKG84 |
| Description | X-TREME DUTY ROCK GRAPPLE, 84” |
| Tine Spacing | 3" |
| Tine Thickness | 5/8" |
| Wear Bars & Side Edge | Bolt on Sides |
| Cylinder Size | 2" x 10" rated at 4000 PSI |
| Working Width | 84" |
| Notes | Fully Welded Front Teeth Standard |
Diagram:
