X-treme Grapple Bucket Attachment

The X-treme Grapple Bucket is ideal for picking up logs, rocks, left over building supplies or any other type of debris. It can handle more material and is intended for larger machines than our Heavy Duty Grapple Bucket. One feature that separates our X-treme Grapple Bucket from our competitor’s comparable attachment is the enclosed hydraulic cylinder shaft. Most grapple buckets only have the actual cylinder enclosed and not the shaft. We protect both! Anyone that has had debris fall on the cylinder shaft knows what damage this can cause.

It features 2″ bore by 10″ stroke cylinders that operate independently to adjust for uneven loads. The hydraulic lines are routed inside the tubing to prevent tears. It is also built with top quality steel, oversized points and bushings, with grease fittings at every pivot point. The X-treme Grapple Bucket has a 1″ x 8″ cutting edge. Every unit exceeds the lifting capacity of the skid steer machine it is attached to. 65 HP and up.

Available Colors:

Gray

Specs

Model:

Product FamilyX-Treme Grapple Bucket
ProductXGB66
DescriptionX-TREME GRAPPLE BUCKET, 66”
Tine Thickness5/8" top tines
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for 65 HP and above machines
Working Width66"
Cutting Edges1" x 8"
NotesHydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge

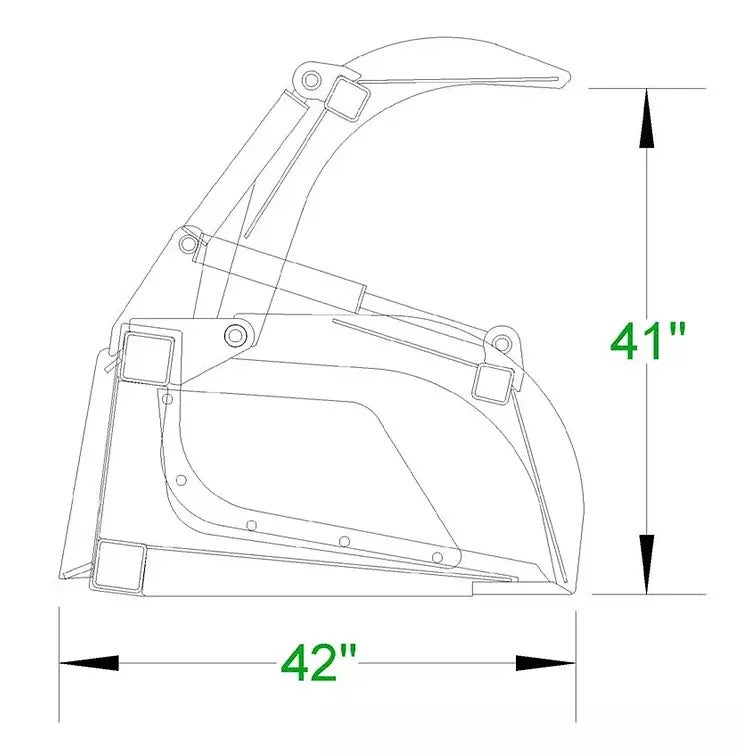

Diagram:


Diagram of product
Product FamilyX-Treme Grapple Bucket
ProductXGB72
DescriptionX-TREME GRAPPLE BUCKET, 72”
Tine Thickness5/8" top tines
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for 65 HP and above machines
Working Width72"
Cutting Edges1" x 8"
NotesHydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge

Diagram:


Diagram of product
Product FamilyX-Treme Grapple Bucket
ProductXGB78
DescriptionX-TREME GRAPPLE BUCKET, 78”
Tine Thickness5/8" top tines
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for 65 HP and above machines
Working Width78"
Cutting Edges1" x 8"
NotesHydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge

Diagram:


Diagram of product
Product FamilyX-Treme Grapple Bucket
ProductXGB81
DescriptionX-TREME GRAPPLE BUCKET, 81”
Tine Thickness5/8" top tines
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for 65 HP and above machines
Working Width81"
Cutting Edges1" x 8"
NotesHydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge

Diagram:


Diagram of product
Product FamilyX-Treme Grapple Bucket
ProductXGB84
DescriptionX-TREME GRAPPLE BUCKET, 84”
Tine Thickness5/8" top tines
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for 65 HP and above machines
Working Width84"
Cutting Edges1" x 8"
NotesHydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge

Diagram:


Diagram of product
Product FamilyX-Treme Grapple Bucket
ProductXGB96
DescriptionX-TREME GRAPPLE BUCKET, 96”
Tine Thickness5/8" top tines
Cylinder Size2" x 10" 4,000 PSI
RPMRecommended for 65 HP and above machines
Working Width96"
Cutting Edges1" x 8"
NotesHydraulic lines on top & routed inside the tubing to prevent tears, grease fittings at every pivot point, bolt on sides standard, optional weld on teeth & bolt on edge

Diagram:


Diagram of product
