X-treme

Brush Cutter Attachment

Our X-treme Brush Cutter is an ideal attachment for tough clearing applications. The cutter comes in a 60″, 72″, or 78″ cutting width. It is equipped with bidirectional blades, powered by a high torque motor and features a 100–hp Omni gear box. A flow of 14–20 gpm is required on the low flow, 20–30 gpm on the mid flow. The one year warranty does not cover the blades or hoses.

Available Colors:

Gray

Specs

Model:

Product FamilyBrush Cutters
ProductXBC60LF
DescriptionX-Treme 14-20 GPM Brush Cutter - 60"
MotorHigh Torque Parker Motor w/ built in relief valve
Case DrainNot Required
Flow Requirement (GPM)14 - 20 GPM
Gearbox100 HP right angle
Working Width60'
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400

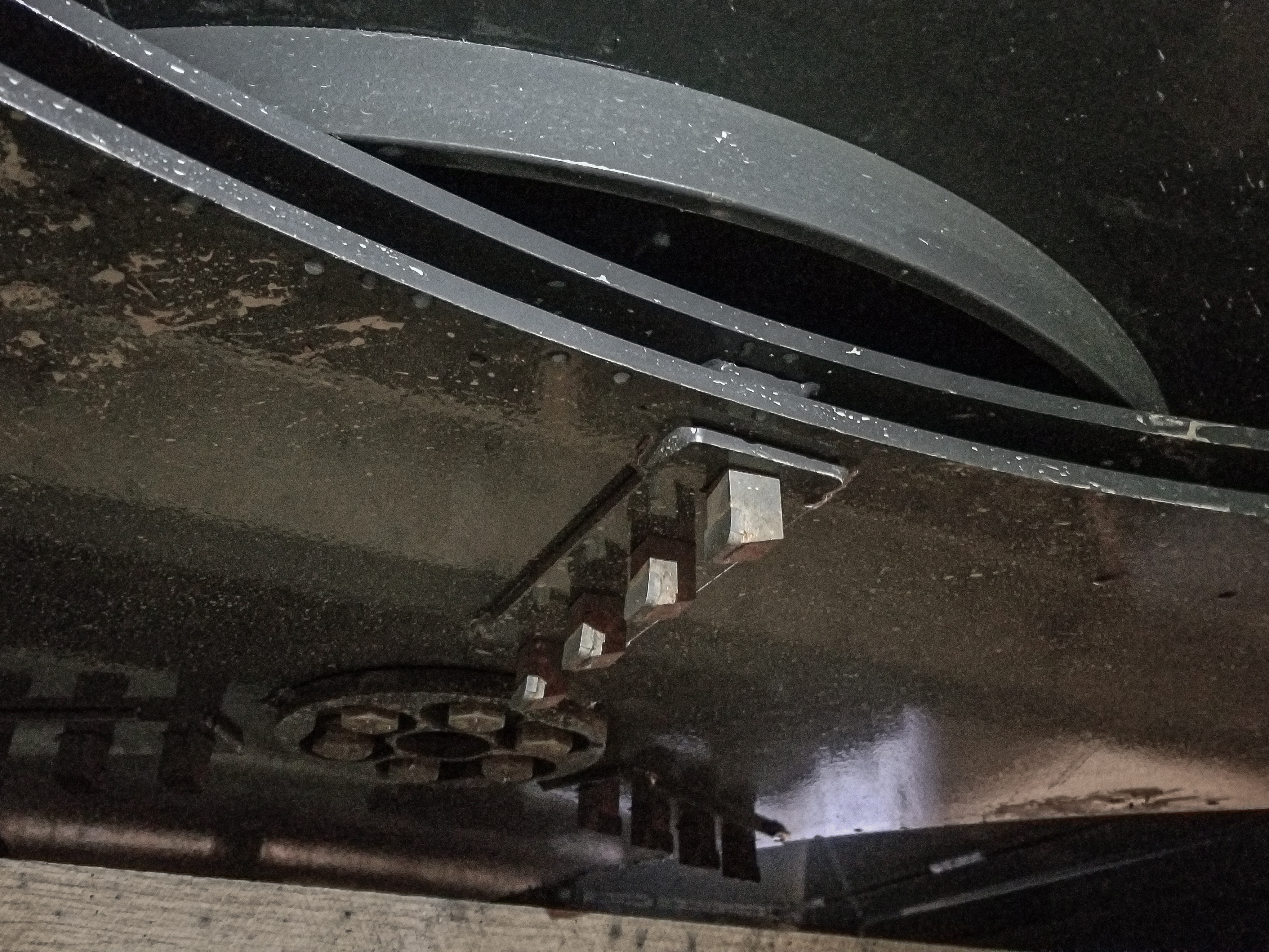

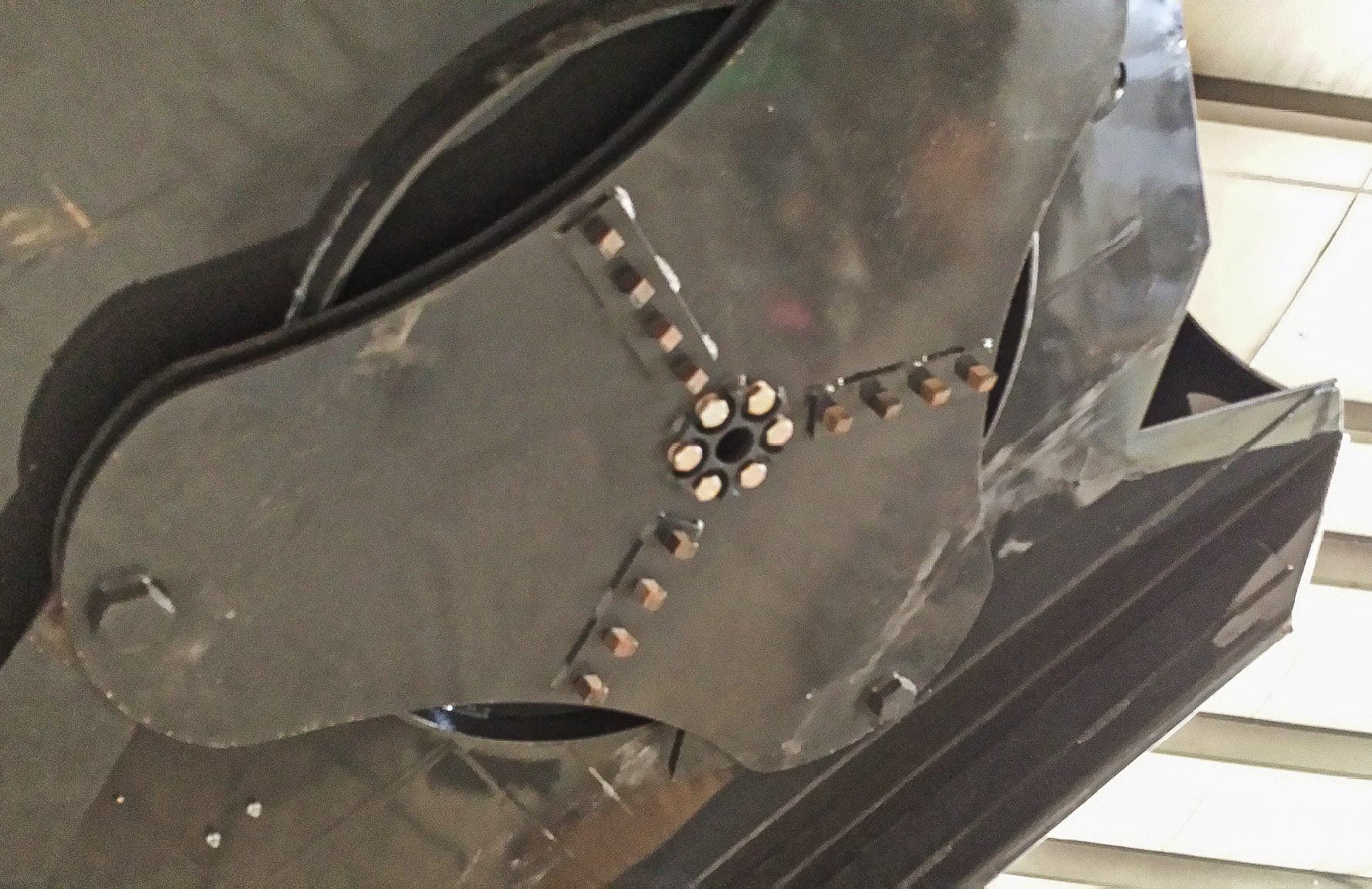

NotesOptional Items: 1/4" deck upgrade, Mulching Teeth, and Motor Upgrade to 16-26 GPM

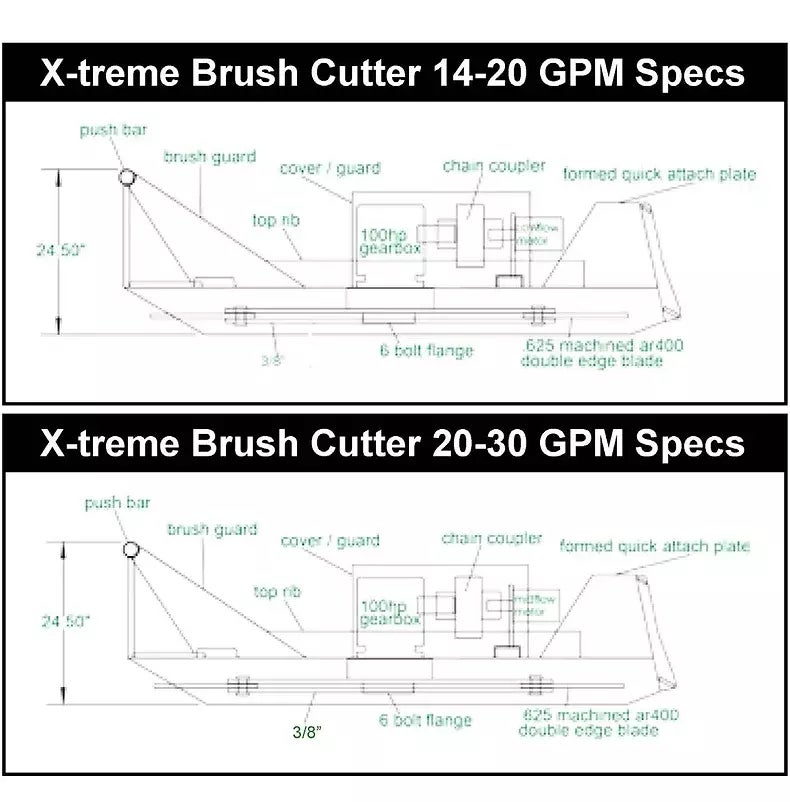

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC72LF
DescriptionX-Treme 14-20 GPM Brush Cutter - 72"
MotorHigh Torque Parker Motor w/ built in relief valve
Case DrainNot Required
Flow Requirement (GPM)14 - 20 GPM
Gearbox100 HP right angle
Working Width72"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" deck upgrade, Mulching Teeth, and Motor Upgrade to 16-26 GPM

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC78LF
DescriptionX-Treme 14-20 GPM Brush Cutter -78"
MotorHigh Torque Parker Motor w/ built in relief valve
Case DrainNot Required
Flow Requirement (GPM)14 - 20 GPM
Gearbox100 HP right angle
Working Width78"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" deck upgrade, Mulching Teeth, and Motor Upgrade to 16-26 GPM

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC84LF
DescriptionX-Treme 14-20 GPM Brush Cutter - 84"
MotorHigh Torque Parker Motor w/ built in relief valve
Case DrainNot Required
Flow Requirement (GPM)14 - 20 GPM
Gearbox100 HP right angle
Working Width84"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" deck upgrade, Mulching Teeth, and Motor Upgrade to 16-26 GPM

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC60MF
DescriptionX-Treme 20-30 GPM Brush Cutter - 60"
MotorHigh Torque Parker Motor
Case DrainNot Required
Flow Requirement (GPM)20 - 30 GPM
Gearbox100 HP right angle
Working Width60"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" Deck & Mulching Teeth

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC72MF
DescriptionX-Treme 20-30 GPM Brush Cutter - 72"
MotorHigh Torque Parker Motor
Case DrainNot Required
Flow Requirement (GPM)20 - 30 GPM
Gearbox100 HP right angle
Working Width72"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" Deck & Mulching Teeth

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC78MF
DescriptionX-Treme 20-30 GPM Brush Cutter - 78"
MotorHigh Torque Parker Motor
Case DrainNot Required
Flow Requirement (GPM)20 - 30 GPM
Gearbox100 HP right angle
Working Width78"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" Deck & Mulching Teeth

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC84MF
DescriptionX-Treme 20-30 GPM Brush Cutter - 84"
MotorHigh Torque Parker Motor
Case DrainNot Required
Flow Requirement (GPM)20 - 30 GPM
Gearbox100 HP right angle
Working Width84"
# of Blades3
Cutting Capacity6"
Deck Thickness3/16" deck w/ 3/8" AR400 reinforced sides
Blade Holder6 Bolt Flange Blade Carrier
Blades5/8" AR400
NotesOptional Items: 1/4" Deck & Mulching Teeth

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC162660
DescriptionX-Treme 16-26 GPM Brush Cutter - 60"

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC162672
DescriptionX-Treme 16-26 GPM Brush Cutter - 72"

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC162678
DescriptionX-Treme 16-26 GPM Brush Cutter - 78"

Diagram:


Diagram of product
Product FamilyBrush Cutters
ProductXBC162684
DescriptionX-Treme 16-26 GPM Brush Cutter - 84"

Diagram:


Diagram of product
