X-treme Angle Broom Attachment

Our X-treme Angle Broom is hydraulically-driven and is an ideal, efficient and effective way to sweep away dirt, light snow and other debris. It is available in 48″, 60″, 72″ and 84″ widths and comes with your choice of hydraulic or manual angles. This attachment is powered by a reversible high torque motor. It has an 8″ core and a 26″ wafer. Poly and steel wafers are available.

Available Colors:

Gray

Specs

Model:

Product FamilyBrooms
ProductHAB48
DescriptionHydraulic Angle, 48"
Cylinder Size2" x 6"
Wiring Harness OptionsUniversal, 8 Pin, or 14 Pin
Wafer MaterialPoly, Wire, or Mix
Angle AdjustmentHydraulic Left or Right
NotesOptional 32" Wafers with 10" Core

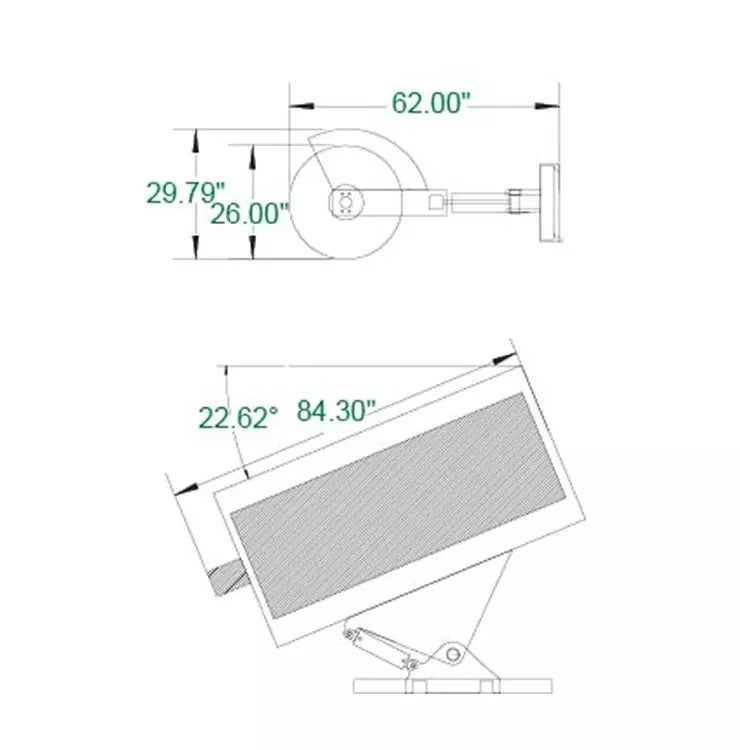

Diagram:


Diagram of product
Product FamilyBrooms
ProductHAB60
DescriptionHydraulic Angle, 60"
Cylinder Size2" x 6"
Wiring Harness OptionsUniversal, 8 Pin, or 14 Pin
Wafer MaterialPoly, Wire, or Mix
Angle AdjustmentHydraulic Left or Right
NotesOptional 32" Wafers with 10" Core

Diagram:


Diagram of product
Product FamilyBrooms
ProductHAB72
DescriptionHydraulic Angle, 72"
Cylinder Size2" x 6"
Wiring Harness OptionsUniversal, 8 Pin, or 14 Pin
Wafer MaterialPoly, Wire, or Mix
Angle AdjustmentHydraulic Left or Right
NotesOptional 32" Wafers with 10" Core

Diagram:


Diagram of product
Product FamilyBrooms
ProductHAB84
DescriptionHydraulic Angle, 84"
Cylinder Size2" x 6"
Wiring Harness OptionsUniversal, 8 Pin, or 14 Pin
Wafer MaterialPoly, Wire, or Mix
Angle AdjustmentHydraulic Left or Right
NotesOptional 32" Wafers with 10" Core

Diagram:


Diagram of product
Product FamilyBrooms
ProductHAB96
DescriptionHydraulic Angle, 96"
Cylinder Size2" x 6"
Wiring Harness OptionsUniversal, 8 Pin, or 14 Pin
Wafer MaterialPoly, Wire, or Mix
Angle AdjustmentHydraulic Left or Right
NotesOptional 32" Wafers with 10" Core

Diagram:


Diagram of product
