3-Point Tractor

Attachments

25 - 50 PTO HP

UM Series Medium-Duty Gear-Drive Tillers

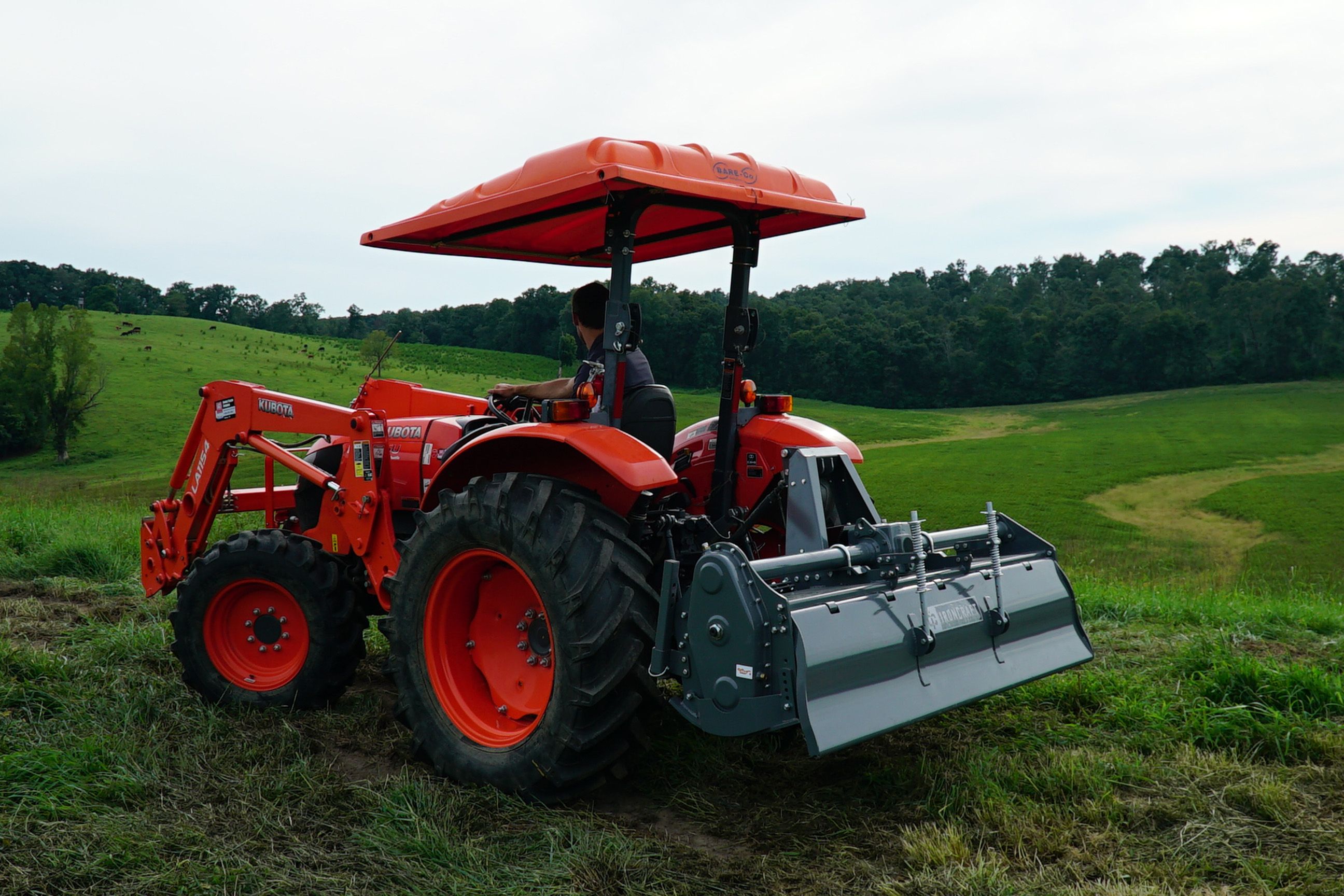

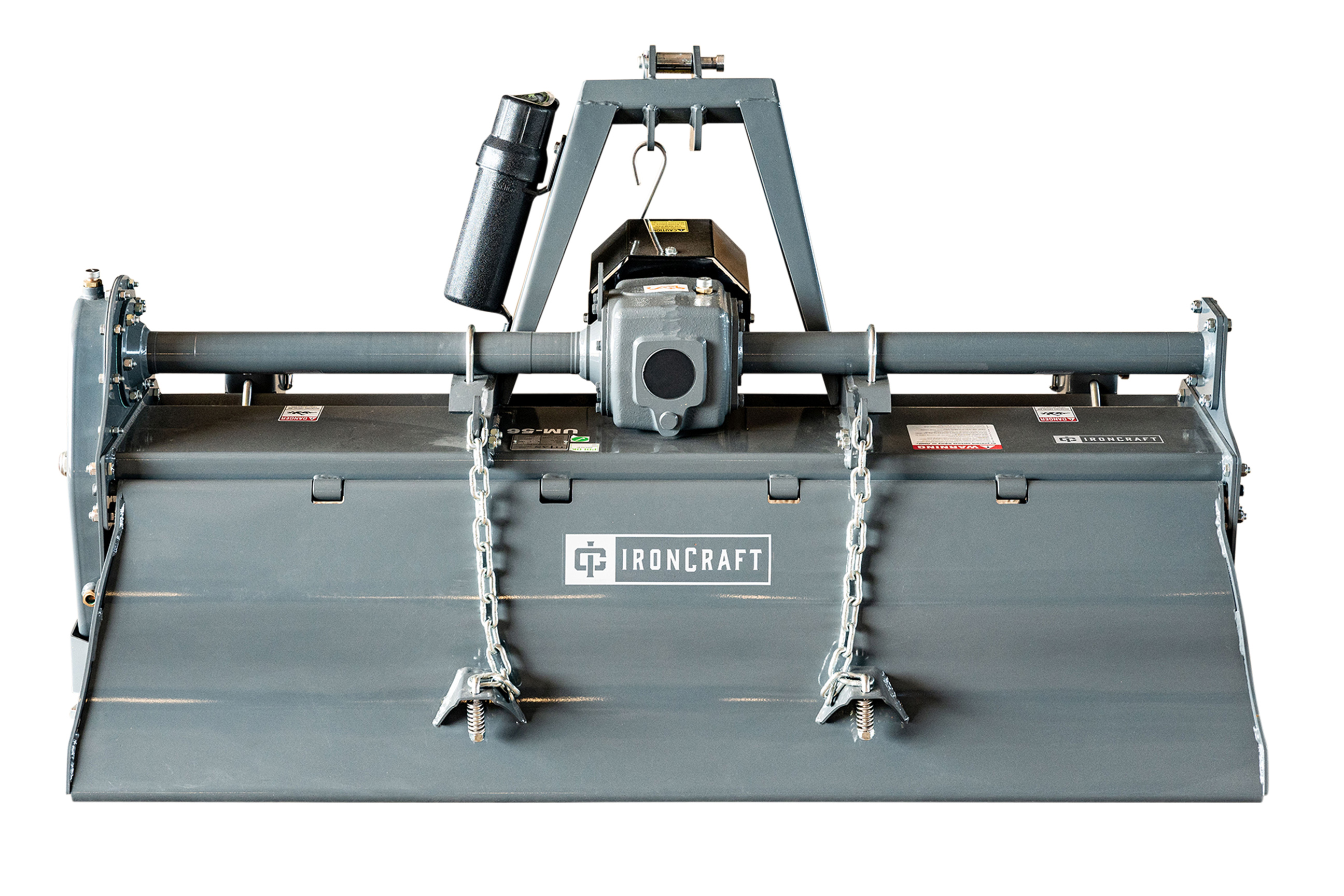

The UM Rotary Tiller is medium-duty and dependable, able to work demanding soils like vineyards or orchards. The UM series is suitable for tractors from 25 to 50 horsepower with a category 1 hitch.

Available Colors:

Gray

Specs

Model:

Product FamilyUM Series
ProductUM-56
Description60" Medium Duty Gear Drive Tiller
RotationForward
RPM540
HP Required25 - 50
Working Width60"
Max Working Depth7"
# of Flanges on Rotor7
# of Tines per Flange6
Total # of Tines42
Rotor Thickness or Diameter3"
Rotor Swing Diameter17"
Overall Width65"
Weight578 lbs
HitchCat 1
Product FamilyUM Series
ProductUM-72
Description72" Medium Duty Gear Drive Tiller
RotationForward
RPM540
HP Required25 - 50
Working Width73"
Max Working Depth7"
# of Flanges on Rotor9
# of Tines per Flange6
Total # of Tines54
Rotor Thickness or Diameter3"
Rotor Swing Diameter17"
Overall Width78"
Weight684 lbs
HitchCat 1
