3-Point Tractor

Attachments

50 - 65 PTO HP

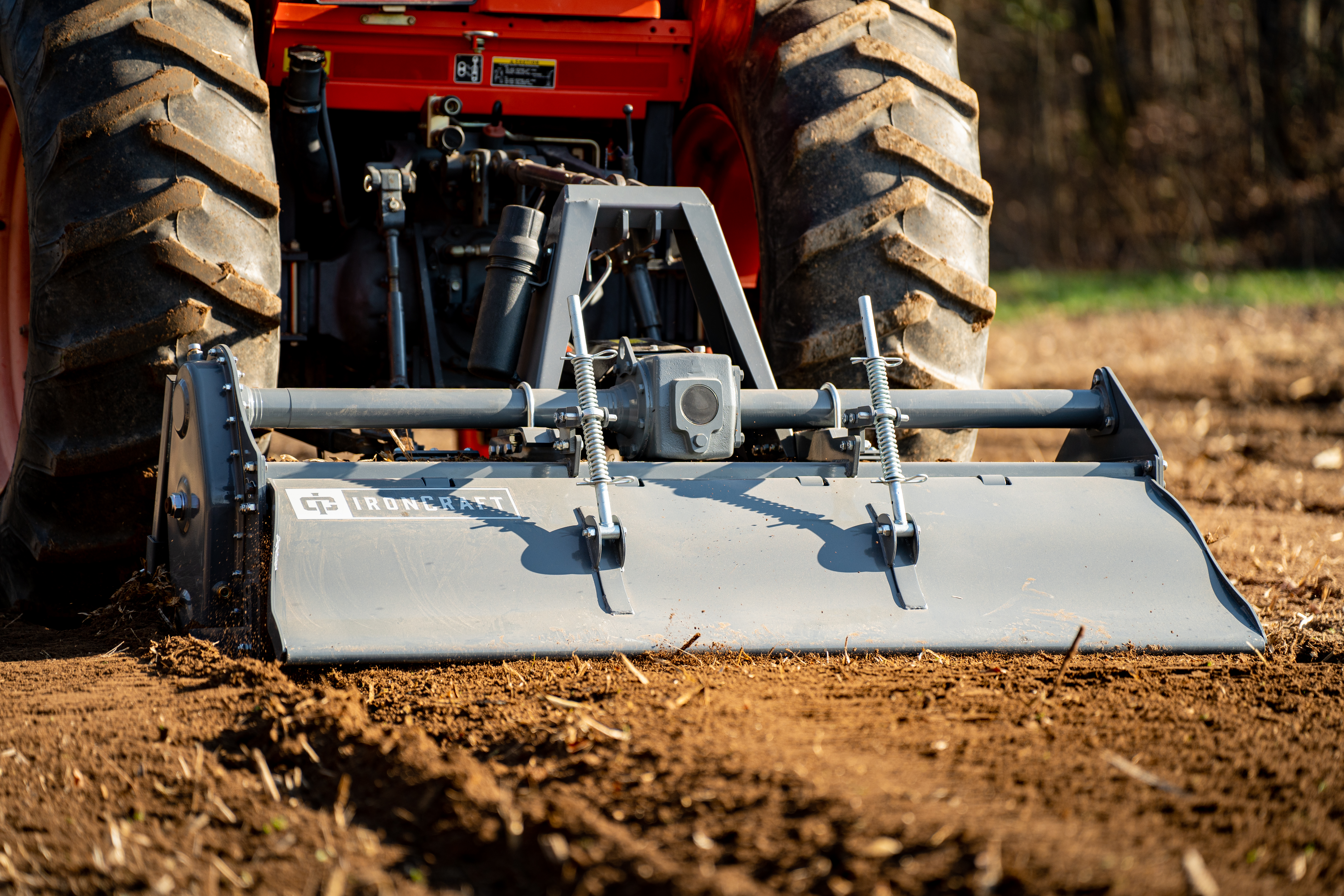

UH Series Heavy-Duty Rotary Tillers

The UH series is suitable for tractors from 50 to 65 hp with a Category 2 hitch. The UH models are heavy-duty and dependable, cutting through very demanding and stony soils.

Available Colors:

Gray

Specs

Model:

Product FamilyUH Series
ProductUH-60-R
Description60" Heavy Duty Reverse Rotation Gear Drive Tiller
RotationReverse
RPM540
HP Required40 - 55
Working Width65"
Max Working Depth7-1/2"
# of Flanges on Rotor7
# of Tines per Flange6
Total # of Tines42
Rotor Thickness or Diameter3-1/2"
Rotor Swing Diameter19"
Weight860 lbs
HitchCat 1 & 2
Product FamilyUH Series
ProductUH-72-R
Description72" Heavy Duty Reverse Rotation Gear Drive Tiller
RotationReverse
RPM540
HP Required45 - 60
Working Width72"
Max Working Depth7-1/2"
# of Flanges on Rotor8
# of Tines per Flange6
Total # of Tines48
Rotor Thickness or Diameter3-1/2"
Rotor Swing Diameter19"
Weight926 lbs
HitchCat 1 & 2
Product FamilyUH Series
ProductUH-84
Description84" Heavy Duty Gear Drive Tiller
RotationForward
RPM540
HP Required50 - 65
Working Width85"
Max Working Depth8"
# of Flanges on Rotor9
# of Tines per Flange6
Total # of Tines54
Rotor Thickness or Diameter4"
Rotor Swing Diameter19"
Overall Width90"
Weight993 lbs
HitchCat 2
