Swing Boom Brush Cutter

Our Swing Boom Cutter is a great implement to add to your collection. It is designed for cutting banks, fence lines, and right of ways. It also works great for clearing pond banks and cutting trails. This cutter has a significant reach advantage over our typical cutter. With a reach of 96” when extended horizontally and a vertical reach of sixteen feet, it makes clearing unwanted tree limbs less of a hassle. The cutter will also swing to the right and can be used as a side cutter. It is powered by a high torque motor with built in relief valve with a maximum supply pressure of 4000 PSI. A flow of 14-20 gpm is required. The one year warranty does not cover the blades and hoses.

Available Colors:

Gray

Specs

Model:

Will This Fit My Skid Steer?

Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!

CLICK HERE >

SBC
Product FamilySwing Boom Brush Cutter
ProductSBC
DescriptionSWING BOOM BRUSH CUTTER 14-20 GPM (NO CASE DRAIN REQUIRED)
MotorHigh Torque Motor w/ built in relief valve
Case DrainNot Required
Flow Requirement (GPM)14-20 GPM
Cylinder Size3" x 16" tilt cylinder
Wiring Harness OptionsUniversal, 7 pin, 8 pin, or 14 pin
Working Width44"
Weight1400
Cutting Capacity3"
Blades5/8" AR400
NotesMaximum supply pressure of 4000 PSI & Can be used as a side cutter

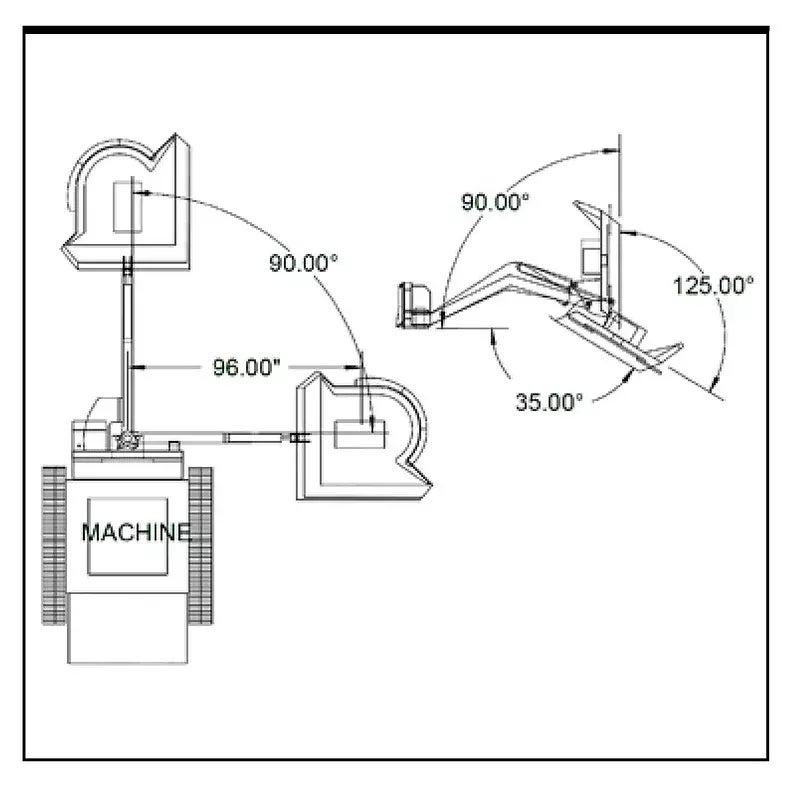

Diagram:


Diagram of product
