X-Treme

Rotary Tiller Attachment

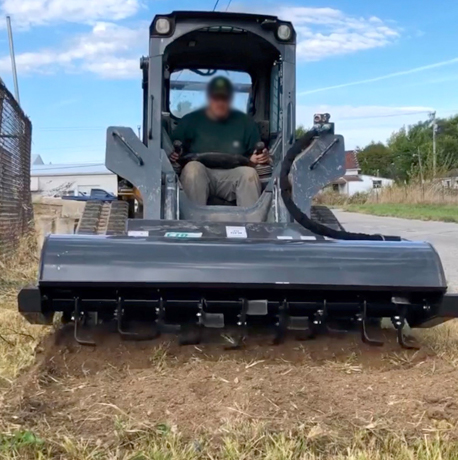

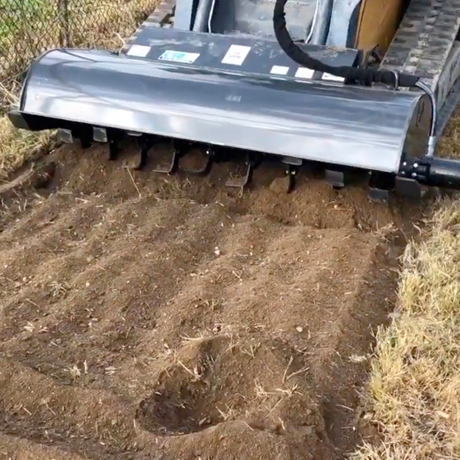

The X-treme Rotary Tiller is a perfect attachment for tilling gardens and small fields. It’s also great for deer hunters to use to make food plots. This tiller has a bidirectional rotation and can till ground up to 6”deep. We manufacture two configurations of rotary tillers. We make a low flow single motor tiller that runs between 14 -20 GPM. We also make a high flow tiller with a dual motor system that runs 20-40 GPM.

Available Colors:

Gray

Hard work

Get's an Upgrade

Specs

Model:

Product FamilyX-Treme Skidsteer Rotary Tiller
ProductXTLF72
DescriptionX-TREME 14-20 GPM ROTARY TILLER, 72”
Plate Thickness1/4" Plate ( Rolled Housing)
MotorSingle Parker Motor w/ internal relief valve
Flow Requirement (GPM)14-20 GPM
Working Width72"
NotesBolt on replaceable tines, 3/8" sides with 3/8" thick shoes

Diagram:


Diagram of product
Product FamilyX-Treme Skidsteer Rotary Tiller
ProductXTHF72
DescriptionX-TREME 20-40 GPM ROTARY TILLER, 72”
Plate Thickness1/4" Plate ( Rolled Housing)
MotorDual Parker Motors w/ internal relief valves
Flow Requirement (GPM)20-40 GPM
Hoses3/4" Machine Hoses
Working Width72"
NotesBolt on replaceable tines, 3/8" sides with 3/8" thick shoes

Diagram:


Diagram of product
Product FamilyX-Treme Skidsteer Rotary Tiller
ProductXTHF84
DescriptionX-TREME 20-40 GPM ROTARY TILLER, 84”
Plate Thickness1/4" Plate ( Rolled Housing)
MotorDual Parker Motors w/ internal relief valves
Flow Requirement (GPM)20-40 GPM
Hoses3/4" Machine Hoses
Working Width84"
NotesBolt on replaceable tines, 3/8" sides with 3/8" thick shoes

Diagram:


Diagram of product
