X-Treme

Swing Arm Backhoe Attachment

Our X-treme Swing Arm Backhoe is an excellent tool for digging ditches, removing stumps and digging footings. It uses an electric over hydraulic control to operate both the bucket and swing cylinder from one auxiliary valve on your machine. This allows a 110 degree swing right or left.

With the option of adding a thumb, you can move logs, chunks of cement or just about anything else. Buckets come in sizes of 8″, 12″, 16″, 20″ and 24″. The bucket is powered by an American made 3″ x 16″ boom cylinder and 3″ x 6″ swing cylinder. With 7′ of digging depth and 14,000 lbs of ripping force, it is an aggressive digging machine.

Available Colors:

Gray

Specs

Model:

Product FamilyBackhoe
ProductXBHSWA
DescriptionSwing Arm Backhoe
Digging Depth7"
Degree of Swing110 Degrees
Bucket Sizes8" to 24"
Cylinder SizeBoom - 3" x 16" Swing - 3" x 6"
Wiring Harness OptionsUniversal, 8 Pin, or 14 Pin

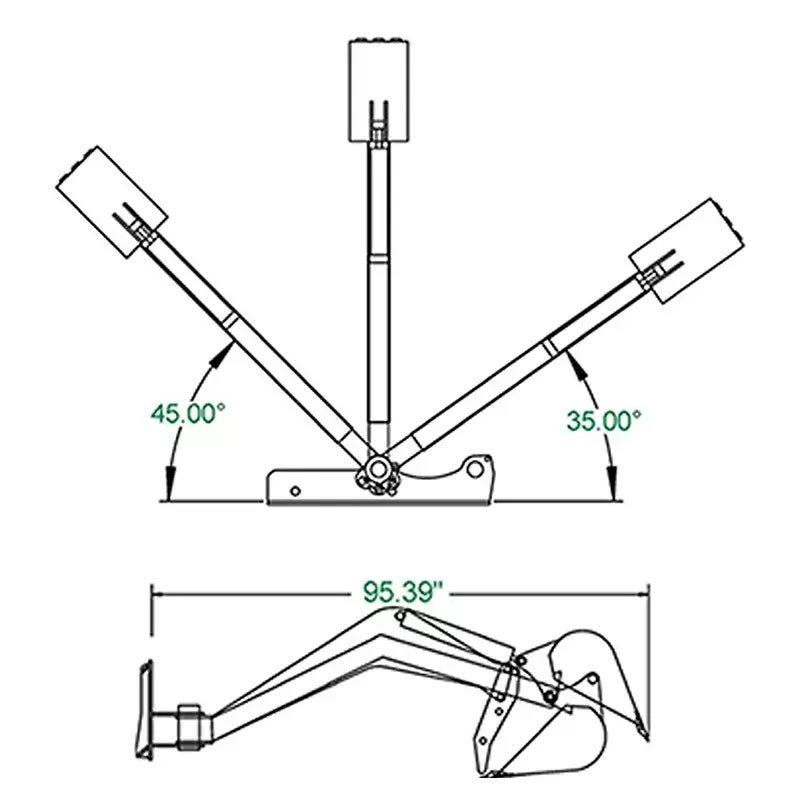

Diagram:


Diagram of product
