Skid Steer & Loader
Attachments
Skid Steer
Grapple Buckets Attachment
Our Grapple Buckets are very versatile attachments. They’re all great choices for anyone who owns a skid steer. Available in a wide range of sizes, they easily pick up logs, rocks, left over building supplies or any other type of debris.
Up to 45 HP on standard duty.
Up to 65 HP on heavy duty.
All of our grapple buckets have 2″ bore by 10″ stroke cylinders, with all hydraulic lines routed inside the tubing to prevent tears. They are also built with top quality steel, oversized points and bushings, with grease fittings at every pivot point. Every unit exceeds the lifting capacity of the skid steer machine it is attached to.
Available Colors:
Gray
Specs
Model:
Will This Fit My Skid Steer?
Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!
CLICK HERE >
| Product Family | Compact Tractor Grapple Bucket |
| Product | CTGB48 |
| Description | CT SINGLE CYL. GRAPPLE BUCKET, 48” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 35 HP |
| Working Width | 48" |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |

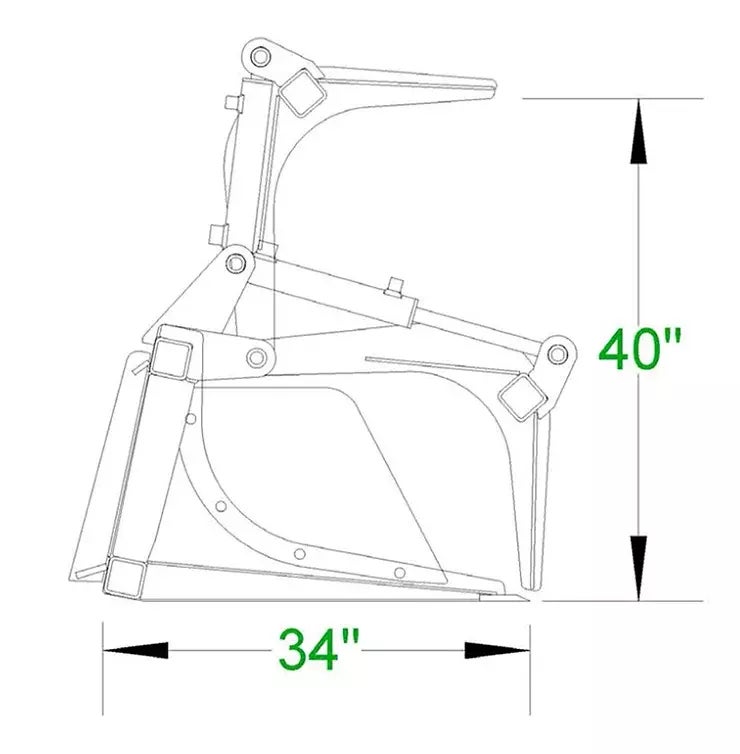

Diagram:
| Product Family | Compact Tractor Grapple Bucket |
| Product | CTGB54 |
| Description | CT SINGLE CYL. GRAPPLE BUCKET, 54” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 35 HP |
| Working Width | 54" |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Compact Tractor Grapple Bucket |
| Product | CTGB60 |
| Description | CT SINGLE CYL. GRAPPLE BUCKET, 60” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 35 HP |
| Working Width | 60" |
| Weight | 506 |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Compact Tractor Grapple Bucket |
| Product | CTGB66 |
| Description | CT SINGLE CYL. GRAPPLE BUCKET, 66” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 35 HP |
| Working Width | 66" |
| Weight | 541 |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Compact Tractor Grapple Bucket |
| Product | CTGB72 |
| Description | CT SINGLE CYL. GRAPPLE BUCKET, 72” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 35 HP |
| Working Width | 72" |
| Weight | 568 |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Standard Duty Grapple Bucket |
| Product | SGB63 |
| Description | STANDARD GRAPPLE BUCKET, 63” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 45 HP |
| Working Width | 63" |
| Weight | 632 |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Standard Duty Grapple Bucket |
| Product | SGB66 |
| Description | STANDARD GRAPPLE BUCKET, 66” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 45 HP |
| Working Width | 66" |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Standard Duty Grapple Bucket |
| Product | SGB72 |
| Description | STANDARD GRAPPLE BUCKET, 72” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 45 HP |
| Working Width | 72" |
| Weight | 727 |
| Notes | Grease fittings at every pivot point, Optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Heavy Duty Grapple Bucket |
| Product | HDGB63 |
| Description | HEAVY DUTY GRAPPLE BUCKET, 63” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 65 HP |
| Working Width | 63" |
| Weight | 744 |
| Notes | Grease fittings at every pivot point, bolt on sides standard, optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Heavy Duty Grapple Bucket |
| Product | HDGB66 |
| Description | HEAVY DUTY GRAPPLE BUCKET, 66” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 65 HP |
| Working Width | 66" |
| Weight | 775 |
| Notes | Grease fittings at every pivot point, bolt on sides standard, optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Heavy Duty Grapple Bucket |
| Product | HDGB72 |
| Description | HEAVY DUTY GRAPPLE BUCKET, 72” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 65 HP |
| Working Width | 72" |
| Weight | 804 |
| Notes | Grease fittings at every pivot point, bolt on sides standard, optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Heavy Duty Grapple Bucket |
| Product | HDGB78 |
| Description | HEAVY DUTY GRAPPLE BUCKET, 78” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 65 HP |
| Working Width | 78" |
| Weight | 850 |
| Notes | Grease fittings at every pivot point, bolt on sides standard, optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
| Product Family | Heavy Duty Grapple Bucket |
| Product | HDGB81 |
| Description | HEAVY DUTY GRAPPLE BUCKET, 81” |
| Cylinder Size | 2" x 10" 4,000 PSI |
| RPM | Recommended for tractors up to 65 HP |
| Working Width | 81" |
| Weight | 866 |
| Notes | Grease fittings at every pivot point, bolt on sides standard, optional weld on teeth, bolt on cylinder rod cover kit, and bolt on edge |
Diagram:
