Skid Steer & Loader
Attachments
IronCraft

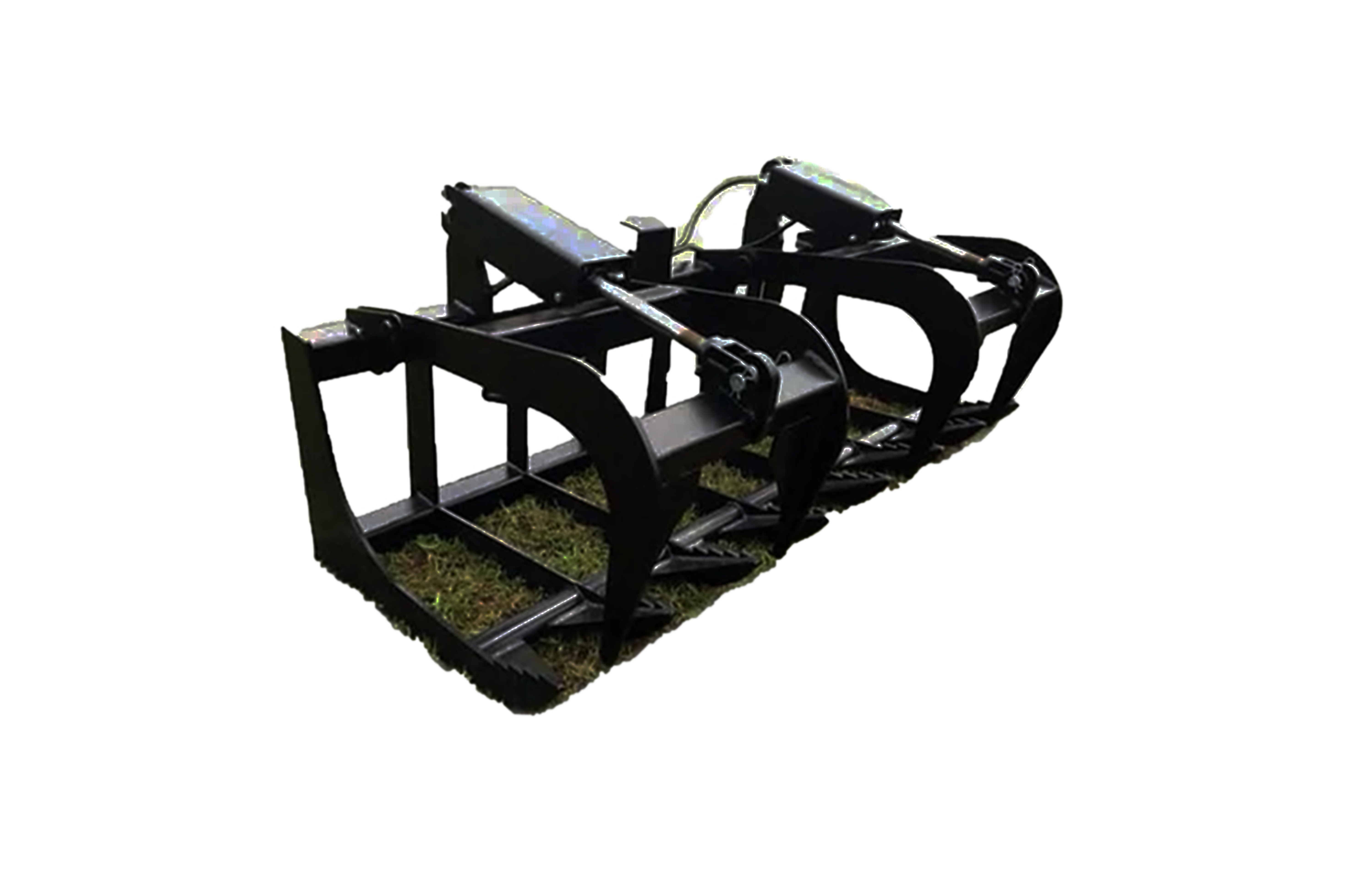

Economy Root Grapple Attachment
Our economy single and dual cylinder grapples are ideal for moving small logs, brush, rocks, or just about any type of debris. It leaves the dirt behind, which makes it an essential tool for clearing lots, as well as for storm damage clean up at job sites. The economy dual cylinder grapple is designed for tractors, allowing owners to get the full potential from their tractors. Dual grapples allow the operator the ability to handle uneven and odd-shaped material.
All of our grapples are manufactured with top quality steel and will exceed the lifting capacity of the tractors that they are used with. They come standard with twin 2” bore by 8″ stroke cylinders and are available in 60”, 66”, 72”, and 78” widths. The Economy Root Grapple 60″ – 72″ opens to 26″, and the 78″ opens to 29″.
Available Colors:
Specs
Will This Fit My Skid Steer?
Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!
CLICK HERE >
Model:
| ERG60 | ERG66 | ERG72 | ERG78 | SERG48 | SERG60 | SERG66 | SERG72 | |
|---|---|---|---|---|---|---|---|---|
| Product Family | Economy Dual Cylinder Root Grapple | Economy Dual Cylinder Root Grapple | Economy Dual Cylinder Root Grapple | Economy Dual Cylinder Root Grapple | Economy Single Cylinder Root Grapple | Economy Single Cylinder Root Grapple | Economy Single Cylinder Root Grapple | Economy Single Cylinder Root Grapple |
| Product | ERG60 | ERG66 | ERG72 | ERG78 | SERG48 | SERG60 | SERG66 | SERG72 |
| Description | Economy Dual Cylinder Root Grapples, 60" | Economy Dual Cylinder Root Grapples, 66" | Economy Dual Cylinder Root Grapples, 72" | Economy Dual Cylinder Root Grapples, 78" | Economy Single Cylinder Root Grapples, 48" | Economy Single Cylinder Root Grapples, 60" | Economy Single Cylinder Root Grapples, 66" | Economy Single Cylinder Root Grapples, 72" |
| Mount Options | John Deere Optional | John Deere Optional | John Deere Optional | John Deere Optional | John Deere & Yanmar Optional | John Deere & Yanmar Optional | John Deere Optional | John Deere Optional |
| HP Required | 45 Max | 45 Max | 45 Max | 45 Max | 45 Max | 45 Max | 45 Max | 45 Max |
| Weight (lbs) | 450 | 477 | 509 | 562 | 291 | 350 | 377 | 409 |
| Diagram |
