Skid Steer & Loader

Attachments

IronCraft

Low Profile Bucket Attachment

The Heavy Duty Low Profile Bucket is ideal for moving, digging and grading dirt or gravel. It’s made for up to 65 HP track machines and up to 70 HP on wheel machines. X-treme Duty package option is made for up to 110 HP machines.

Available Colors:

Gray

Specs

Model:

Product FamilyLow Profile Bucket
ProductLPB63
DescriptionLP BUCKET, 63”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width63"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

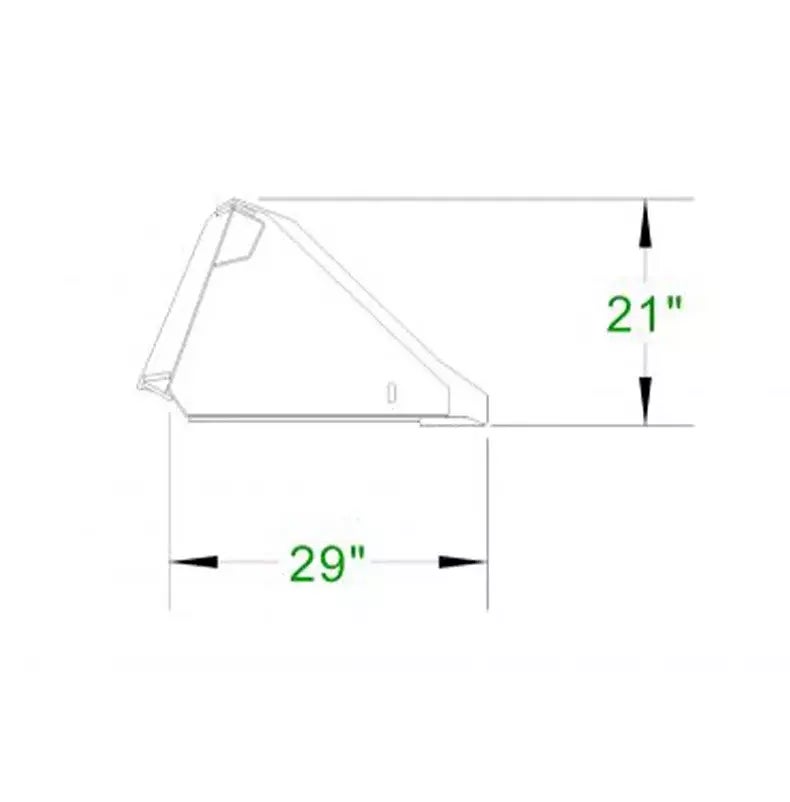

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB66
DescriptionLP BUCKET, 66”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width66"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB72
DescriptionLP BUCKET, 72”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width72"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB74
DescriptionLP BUCKET, 74”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Package available for machines up to 110 HP.
Working Width74"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB78
DescriptionLP BUCKET, 78”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width78"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB81
DescriptionLP BUCKET, 81”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width81"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB84
DescriptionLP BUCKET, 84”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width84"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB96
DescriptionLP BUCKET, 96”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width96"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB90
DescriptionLP BUCKET, 90”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width90"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
Product FamilyLow Profile Bucket
ProductLPB96
DescriptionLP BUCKET, 96”
Bucket Wrap3/16"
Wear Bars & Side Edge3/8"
RPMRecommended for track machines up to 65 HP and wheel machines up to 70 HP. X-treme Duty Package available for machines up to 110 HP.
Working Width96"
Cutting Edges3/4" x 6"
NotesOptional bolt on edge and weld on teeth

Diagram:


Diagram of product
