3-Point Tractor
Attachments
20-60 PTO

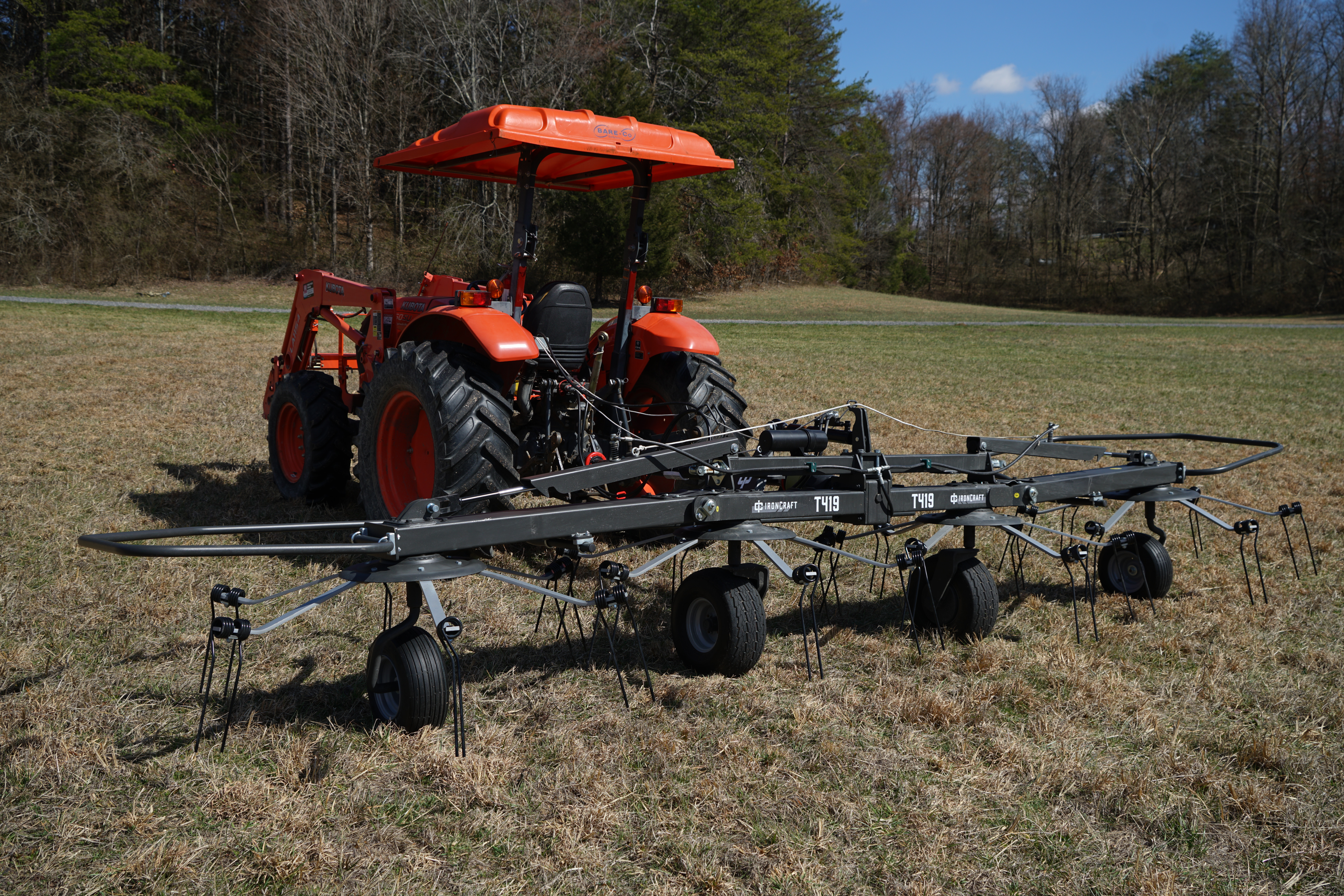

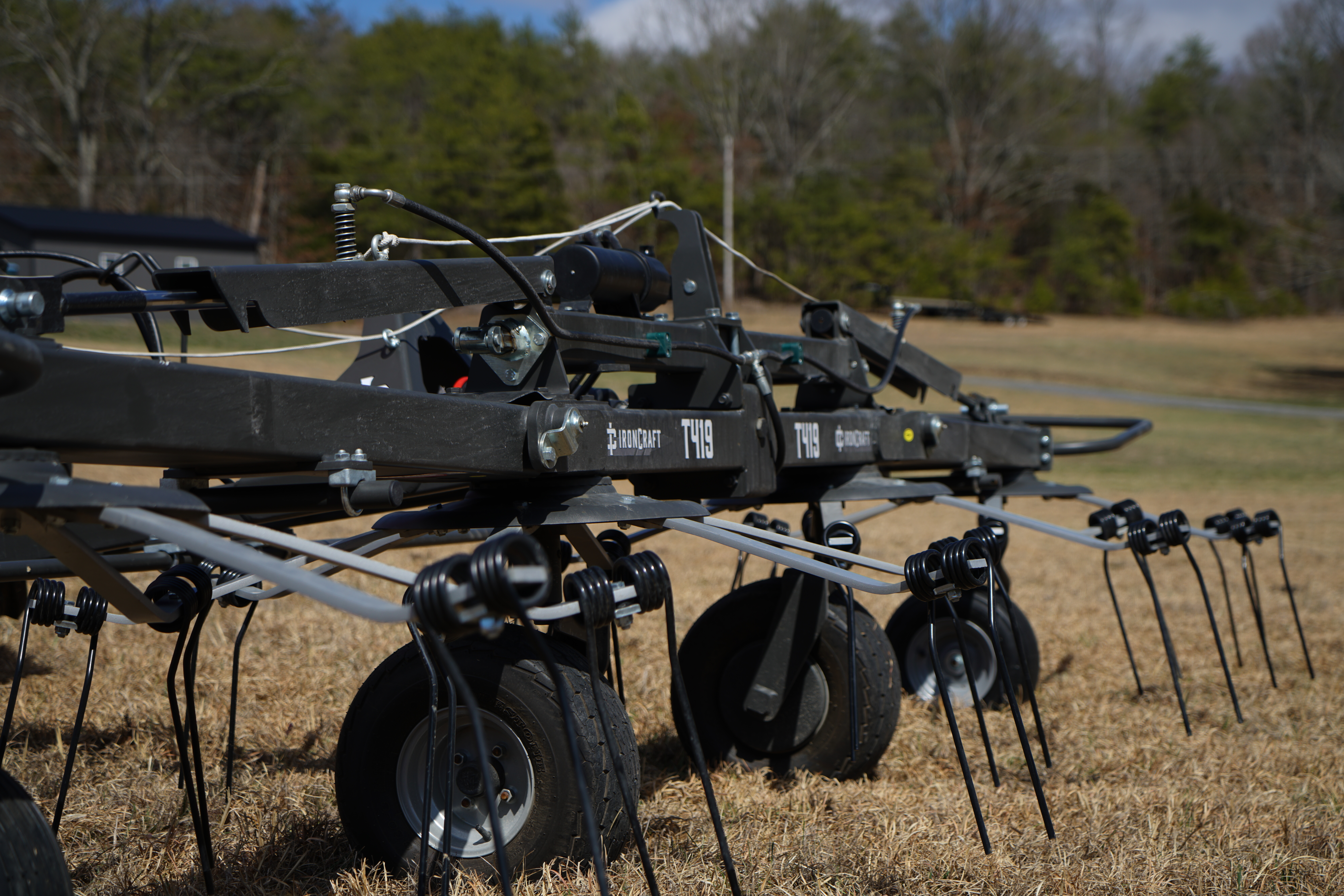

Pull-Type Hay Tedders
IronCraft tedders are equipped with independent rotors that can easily adapt to various ground conditions. They are available in 4 different working widths and come with a pull-type hitch. Depending on the model, the working angle can be adjusted either hydraulically or mechanically. These tedders are designed to be user-friendly and easy to transport, ensuring efficient forage distribution for quick and uniform drying.
- Recommended for 20-60 PTO
- Ground adaptation through independent rotors with articulated frame sections and large diameter wheels.
Available Colors:
Gray
Model:
| T210 | T417 | T419 | T624 | |
|---|---|---|---|---|
| Product Family | HayTedders | HayTedders | HayTedders | HayTedders |
| Product | T210 | T417 | T419 | T624 |
| Description | TWO BASKET MANUAL LEVELING TEDDER - 10 FT | FOUR BASKET MANUAL LEVELING TEDDER - 17 FT | FOUR BASKET HYDRAULIC LEVELING TEDDER - 19 FT | SIX BASKET HYDRAULIC LEVELING TEDDER - 24 FT |
| HP Required | 20 HP | 50 HP | 50 HP | 50 - 60 HP |
| Working Width | 10.2' | 17' | 19' | 24' |
| Transport Width | 10.5' | 9.8' | 10.5' | 9.8' |
| Transport Height | 3.6' | 8.7' | 9.4' | 12.1' |
| Transport Length | 7.5' | 9' | 9.5' | 9' |
| Number of Rotors | 2 | 4 | 4 | 6 |
| Tine Arms Per Rotor | 6 | 6 | 6 | |
| Rotor Tire | 2 x 15 x 6.0-6 | 4 x 16 x 6.5-8 | 2 x 16 x 6.5-8 2 x 18.5 x 8.5-8 | 8 x 16 x 6.5-8 (Walking Tandem Wheels) |
| Road Signaling Kit | N/A | N/A | N/A | Standard |
| Working Angle Adjustment | N/A | Mechanical (Optional Hydraulic Kit) | Hydraulic | Hydraulic |
| Wing Fold | Fixed | Hydraulic | Hydraulic | Hydraulic |
| Rear Remotes Required | 1 | 1 | 2 | 2 |
| Weight (lbs) | 425 lbs | 1,080 lbs | 1,157 lbs | 1,740 lbs |
| Diagram |
