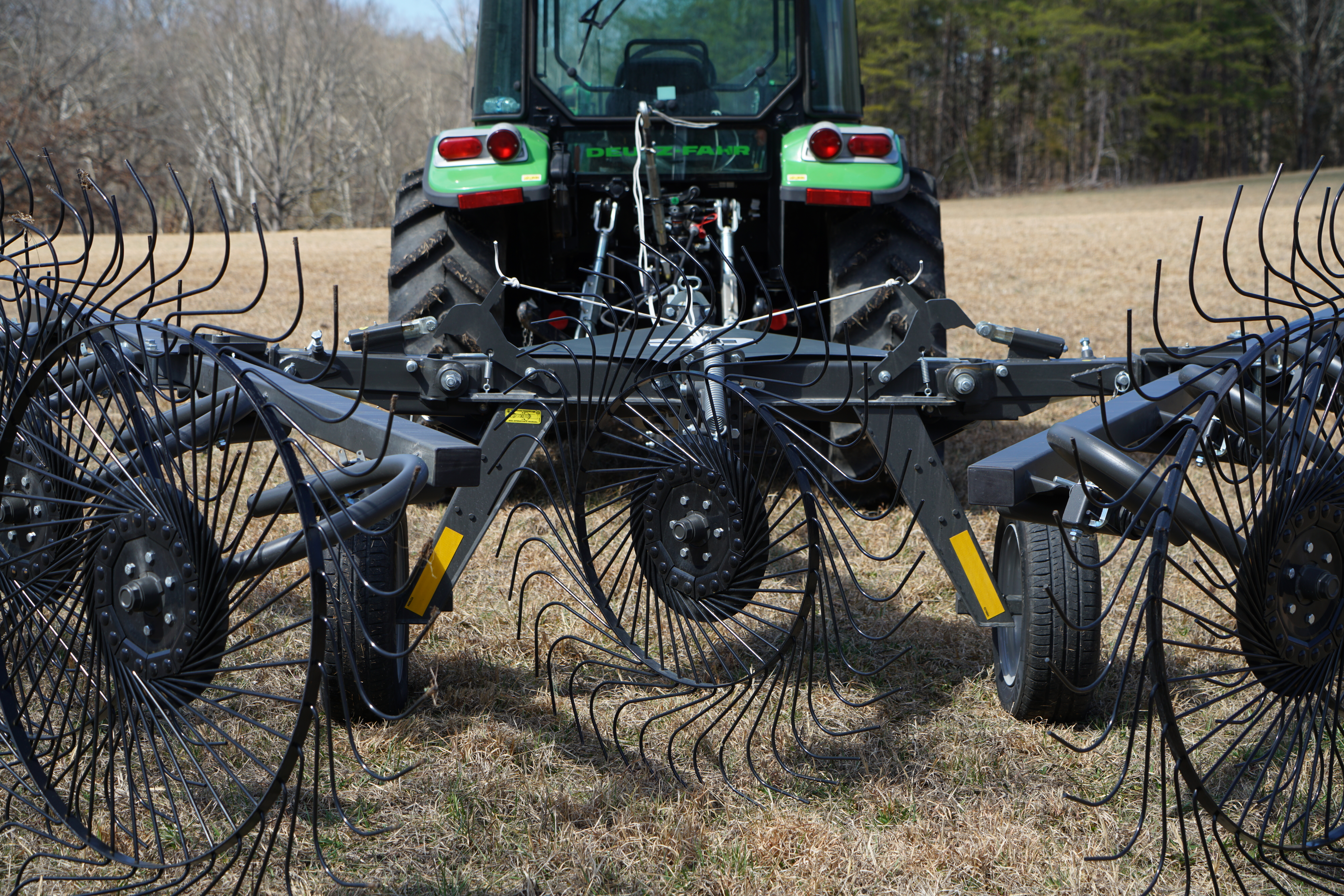

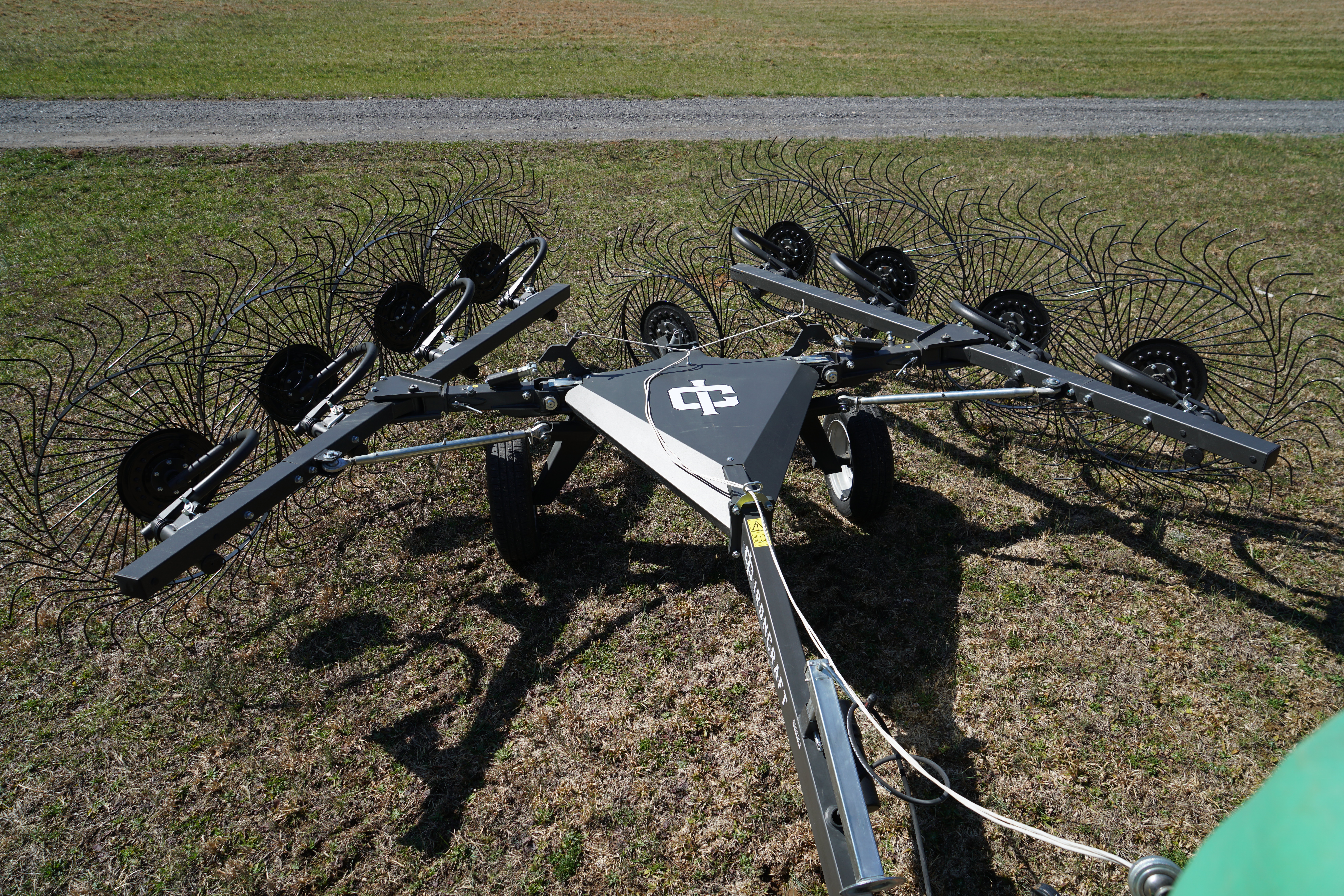

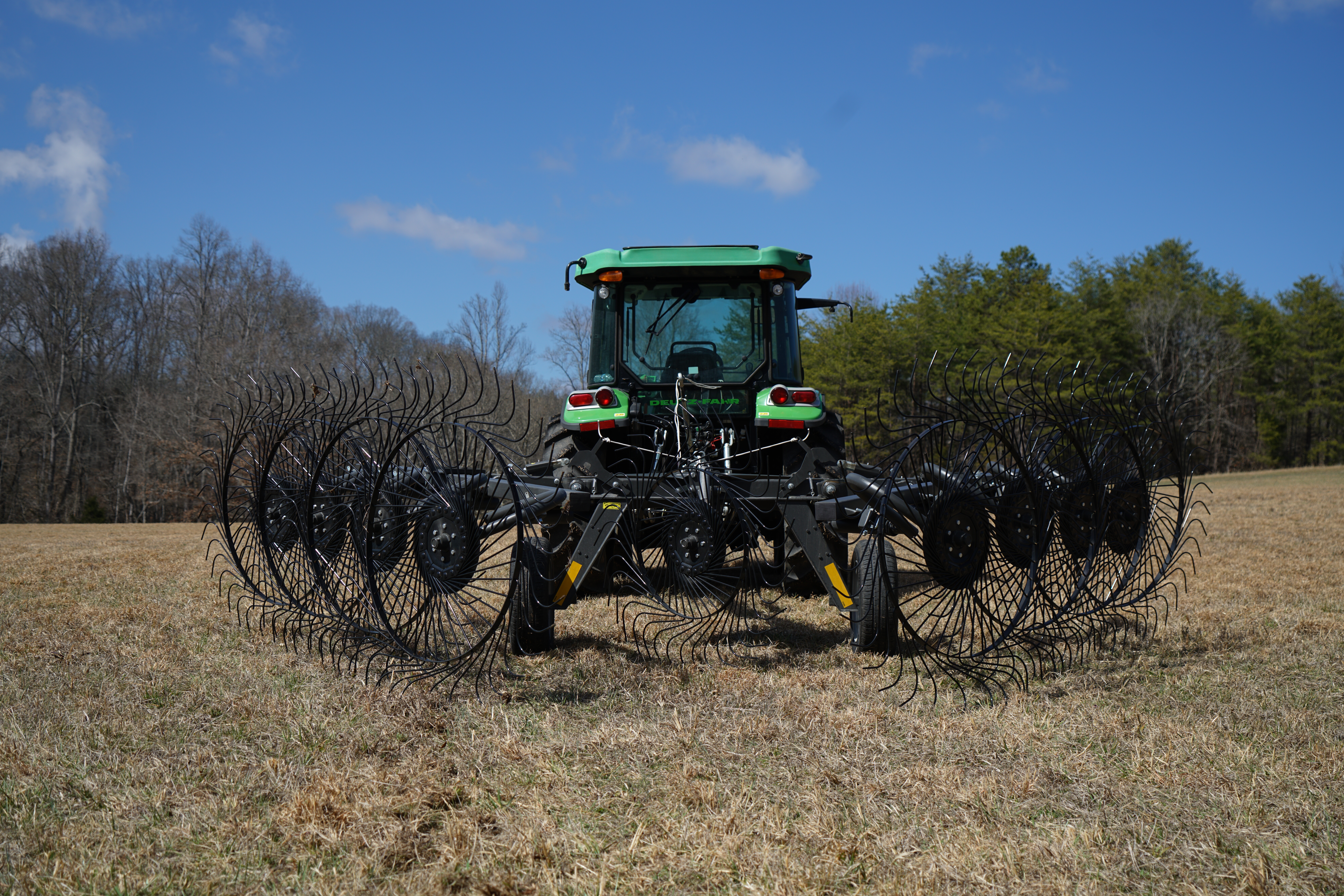

Pull Type Hay Rakes

The IronCraft pull-type rakes offer versatility on different terrains with simple windrow adjustments and independent rake wheel suspension. Requiring low maintenance and no PTO, they are the perfect choice for a wheel rake!

Recommended for 40 -50 horsepower tractors.
Independent rake wheels equipped with a torsion spring
Optional center wheel kit

View Literature

Available Colors:

Gray

Model:

We've Got You Covered.

Find a Dealer near you to get started.

Dealer Locator

Become a Dealer

Product Family	HayRakes
Product	BR8
Description	V-FRAME BAT RAKE - 8 WHEEL 16.4 - 18.4 FT - MECHANICAL WIDTH
HP Required	40 HP
Working Width	16.4' to 18.4'
Number of Rake Wheels	8
Adjustable Windrow Width	1.6' to 6.6'
Windrow Adjustment	Hydraulic
Rake Wheel Dimensions	4.9'
Tine Thickness	75 MM / 0.295"
Tines Per Wheel	40
Center Wheel Kit	Optional
Weight (lbs)	1,500 lbs

Product Family	HayRakes
Product	BR10
Description	V-FRAME BAT RAKE - 10 WHEEL 18.4 - 21.7 FT- MECHANICAL WIDTH
HP Required	50 HP
Working Width	18.4' to 21.7'
Number of Rake Wheels	10
Adjustable Windrow Width	1.6' to 6.6'
Windrow Adjustment	Hydraulic
Rake Wheel Dimensions	4.9'
Tine Thickness	75 MM / 0.295"
Tines Per Wheel	40
Center Wheel Kit	Optional
Weight (lbs)	1,620 lbs

Product Family	HayRakes
Product	BR12
Description	V-FRAME BAT RAKE - 12 WHEEL 19.7 - 24.3 FT - MECHANICAL WIDTH
HP Required	50 HP
Working Width	19.7' to 24.3'
Number of Rake Wheels	12
Adjustable Windrow Width	1.6' to 6.6'
Windrow Adjustment	Hydraulic
Rake Wheel Dimensions	4.9'
Tine Thickness	75 MM / 0.295"
Tines Per Wheel	40
Center Wheel Kit	Optional
Weight (lbs)	1,960 lbs
