Skid Steer & Loader

Attachments

IronCraft

4-N-1 Power Rake Attachment

The IronCraft 4-N-1 Power Rake is an innovative landscape tool that combines a 4N1 bucket along with a power rake. No longer will you have to change attachments to finish preparing the soil bed. You can now use your rake for back dragging, digging, and grappling. Offered in various widths and sizes for full size machines to mini skid steer. The Multi-Purpose Power Rake comes stock with a  smooth edge, with the option for a Bolt on Edge or welded teeth.

Available Colors:

Gray

Specs

Model:

Product Family4-N-1 Power Rake
ProductMPPR66
DescriptionMULTI-PURPOSE POWER RAKE, 66”
Drum Size7-1/2" w/ carbide roller tips (10-1/4" tip to tip)
MotorDirect Drive Motor
Flow Requirement (GPM)15-25 GPM
Cylinder Size2-1/2" x 8" dual cylinders
Wiring Harness OptionsUniversal, 7pin, 8pin or 14pin
Working Width60"
Notes1-1/4" Pivot Pins & Side Cutters Standard

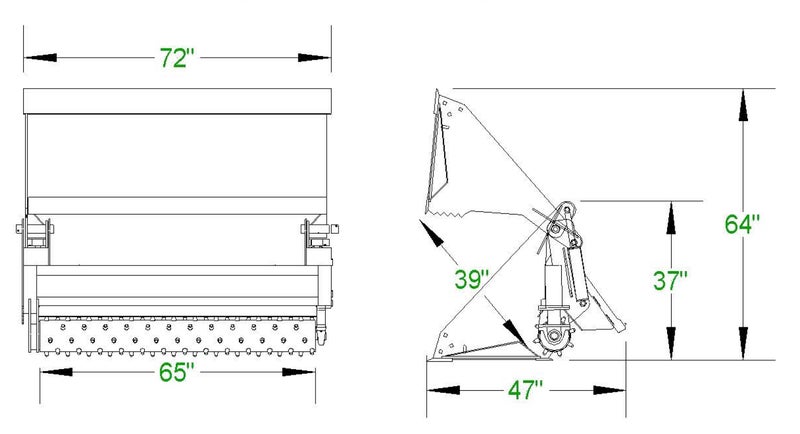

Diagram:


Diagram of product
Product Family4-N-1 Power Rake
ProductMPPR72
DescriptionMULTI-PURPOSE POWER RAKE, 72”
Drum Size7-1/2" w/ carbide roller tips (10-1/4" tip to tip)
MotorDirect Drive Motor
Flow Requirement (GPM)15-25 GPM
Cylinder Size2-1/2" x 8" dual cylinders
Wiring Harness OptionsUniversal, 7pin, 8pin or 14pin
Working Width72"
Notes1-1/4" Pivot Pins & Side Cutters Standard

Diagram:


Diagram of product
Product Family4-N-1 Power Rake
ProductMPPR78
DescriptionMULTI-PURPOSE POWER RAKE, 78”
Drum Size7-1/2" w/ carbide roller tips (10-1/4" tip to tip)
MotorDirect Drive Motor
Flow Requirement (GPM)15-25 GPM
Cylinder Size2-1/2" x 8" dual cylinders
Wiring Harness OptionsUniversal, 7pin, 8pin or 14pin
Working Width78"
Notes1-1/4" Pivot Pins & Side Cutters Standard

Diagram:


Diagram of product
Product Family4-N-1 Power Rake
ProductMPPR84
DescriptionMULTI-PURPOSE POWER RAKE, 84”
Drum Size7-1/2" w/ carbide roller tips (10-1/4" tip to tip)
MotorDirect Drive Motor
Flow Requirement (GPM)15-25 GPM
Cylinder Size2-1/2" x 8" dual cylinders
Wiring Harness OptionsUniversal, 7pin, 8pin or 14pin
Working Width84"
Notes1-1/4" Pivot Pins & Side Cutters Standard

Diagram:


Diagram of product
