Skid Steer & Loader
Attachments
IronCraft
Hydraulic Pallet Forks & Frame
Anyone that owns a skid steer should have a set of forks on hand. Forks are ideal for lifting pallets, loading lumber or just about anything else. Our forks are 1-3/8 inches thick, 4 inches wide and 48 inches long. They are completely heat treated and rated to carry 4,000 lbs. We put a step on both sides of our frames so the operator can easily climb into the cab. Euro Style and John Deere mounts are available.
Available Colors:
Gray
Specs
Will This Fit My Skid Steer?
Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!
CLICK HERE >
Model:
| HHDFF-S | HHDFF5500-S | |
|---|---|---|
| Product Family | Hydraulic Heavy Duty Pallet Forks | Hydraulic Heavy Duty Pallet Forks |
| Product | HHDFF-S | HHDFF5500-S |
| Description | HYDRAULIC HD CLASS II FORKS & FRAME | HYDRAULIC HD CLASS II FORKS & FRAME |
| Notes | Steps on both sides of frame | Steps on both sides of frame |
| Fork Tine Length | 48" | 48" |
| Fork Material | Heat Treated | Heat Treated |
| Mount Options | SSL | SSL |
| Load Capacity | 4,000 lbs | 5,500 lbs |
| Cylinder Size | 1-1/2" x 16" | 1-1/2" x 16" |
| Weight (lbs) | 411 | 411 |

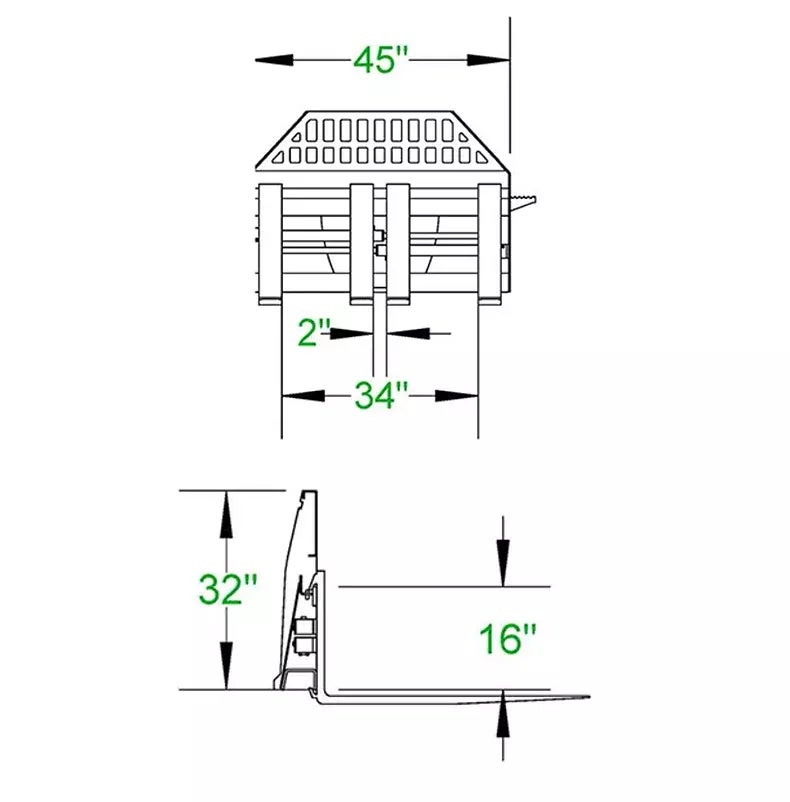

| Diagram | ![]() | ![]() |
