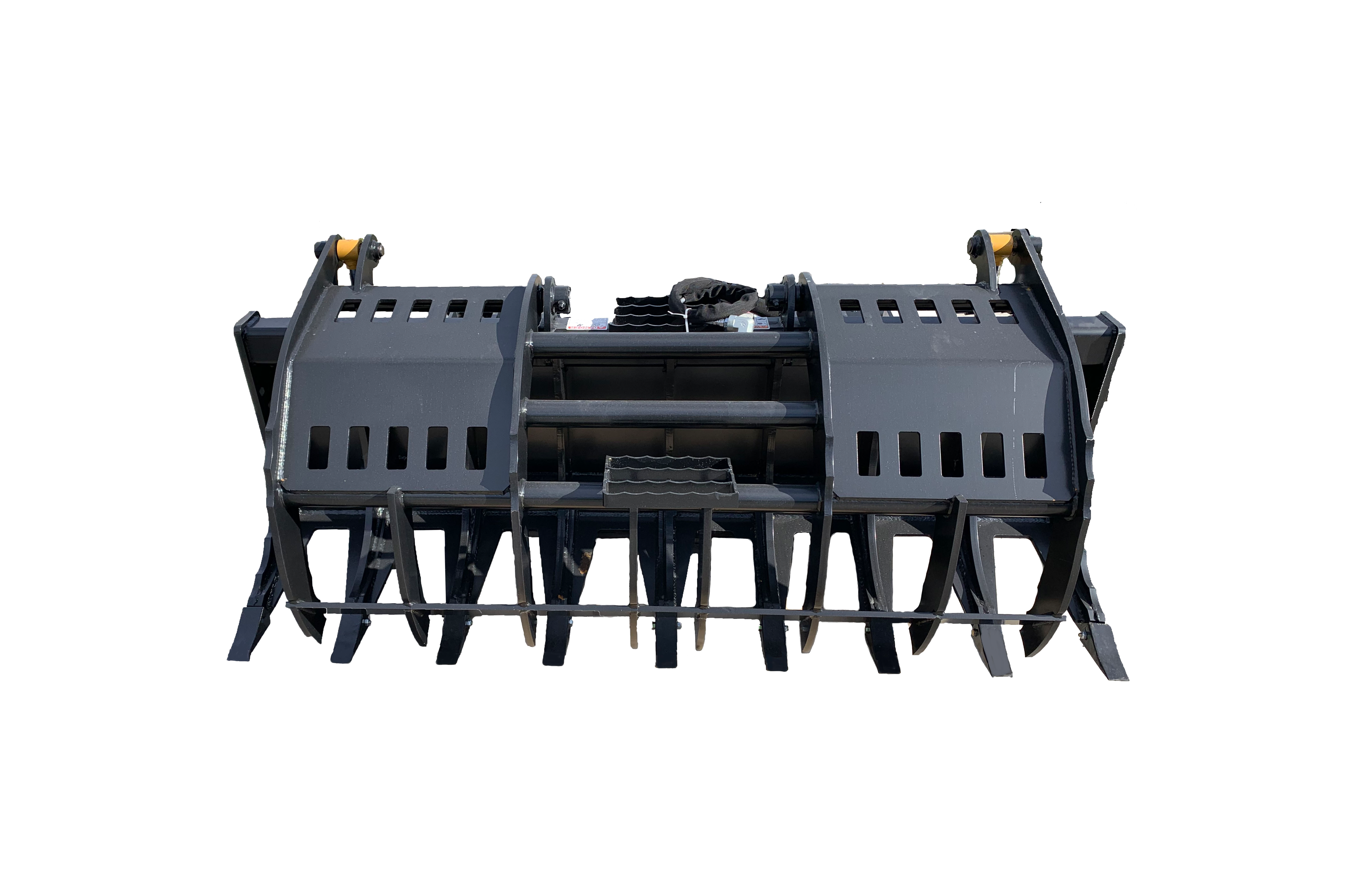

Grapple Rake Attachment
Our Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight places. We use American-made cylinders, rated at 4,000 psi, to handle the toughest jobs.
Our Heavy Duty Rakes are built with ½” top-quality steel and are rated for 50-70 HP machines.
Available Colors:
Gray
Specs
Will This Fit My Skid Steer?
Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!
CLICK HERE >
Model:
| HDGR66-S | HDGR72-S | HDGR78-S | HDGR84-S | HDGR96-S | |
|---|---|---|---|---|---|
| Product Family | Heavy Duty Grapple Rake | Heavy Duty Grapple Rake | Heavy Duty Grapple Rake | Heavy Duty Grapple Rake | Heavy Duty Grapple Rake |
| Product | HDGR66-S | HDGR72-S | HDGR78-S | HDGR84-S | HDGR96-S |
| Description | HEAVY DUTY GRAPPLE RAKE, 66” | HEAVY DUTY GRAPPLE RAKE, 72” | HEAVY DUTY GRAPPLE RAKE, 78” | HEAVY DUTY GRAPPLE RAKE, 84” | HEAVY DUTY GRAPPLE RAKE, 96” |
| Notes | Unique design makes it easy to roll debris into tight piles. | Unique design makes it easy to roll debris into tight piles. | Unique design makes it easy to roll debris into tight piles. | Unique design makes it easy to roll debris into tight piles. | Unique design makes it easy to roll debris into tight piles. |
| Mount Options | SSL | SSL | SSL | SSL | SSL |
| Cylinder Size | 2" x 10" 4,000 PSI | 2" x 10" 4,000 PSI | 2" x 10" 4,000 PSI | 2" x 10" 4,000 PSI | 2" x 10" 4,000 PSI |
| RPM | Recommended for 50-70 HP machines | Recommended for 50-70 HP machines | Recommended for 50-70 HP machines | Recommended for 50-70 HP machines | Recommended for 50-70 HP machines |
| Working Width | 66" | 72" | 78" | 84" | 96" |
| Weight (lbs) | 814 | 874 | 888 | 955 | 1056 |
| Diagram |  | | | | |
