3-Point Tractor
Attachments
35 - 70 PTO HP
FMH Series Standard-Duty Flail Mower

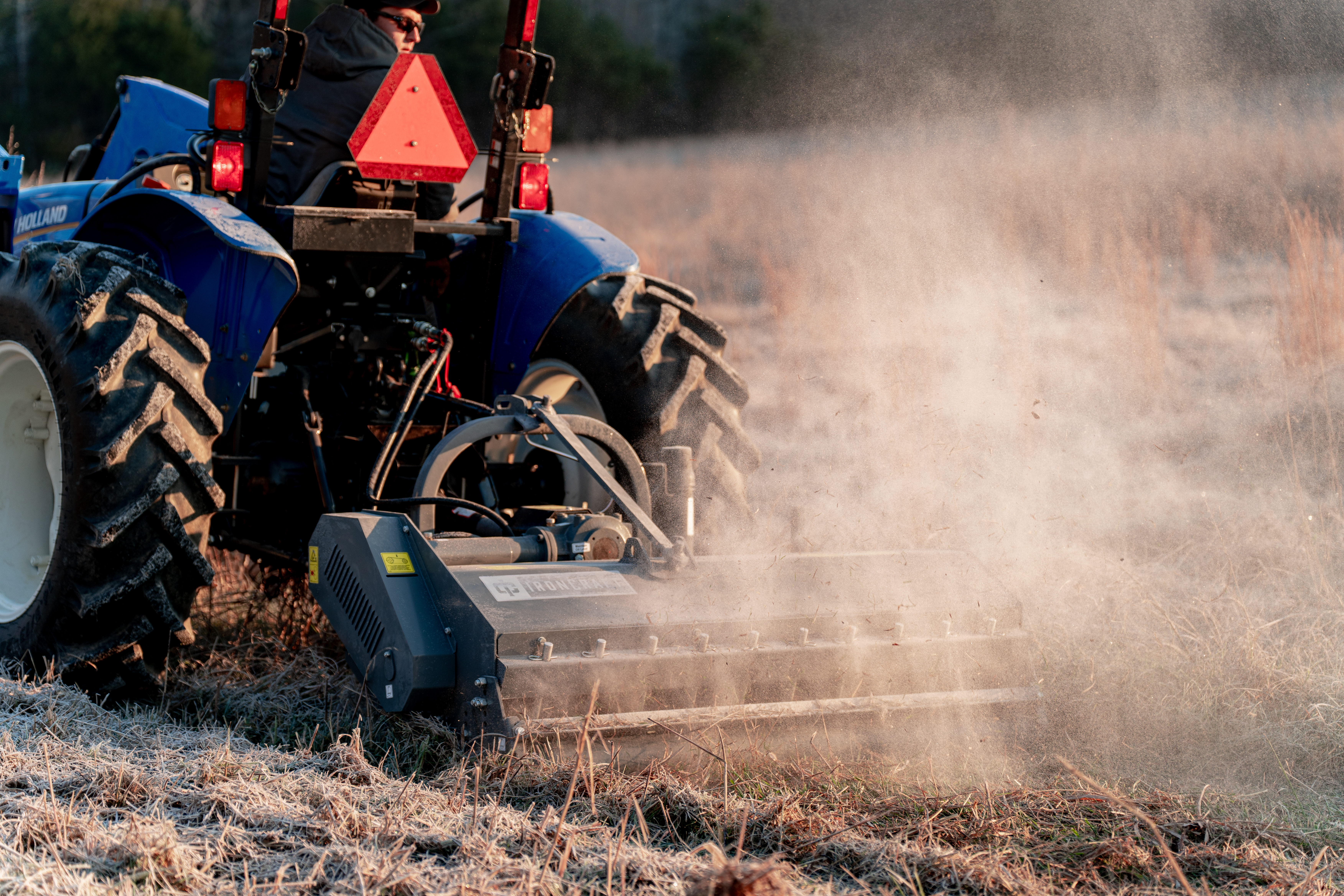

The FMH Series Flail Mower is built for tractors with 35 to 70 horsepower and a Category 1 hitch. With up to an 86″ working width and hydraulic side shift, it gives you greater control when working along edges, fence lines, or uneven terrain. Standard features include hammer flails for mowing grass and brush up to 1.5″ thick, a rear roller, and rakes for a clean, even cut. Knife blades are also available for finer finish work.
Available Colors:
Gray
Specs
Model:
| FMH-160 | FMH-175 | FMH-205 | FMH-220 | |
|---|---|---|---|---|
| Product Family | FMH Series | FMH Series | FMH Series | FMH Series |
| Product | FMH-160 | FMH-175 | FMH-205 | FMH-220 |
| Description | 63" Standard Duty Flail Mower | 69" Standard Duty Flail Mower | 80.7" Standard Duty Flail Mower | 86-1/2" Standard Duty Flail Mower |
| Notes | Hammers Standard / Knives Optional | Hammers Standard / Knives Optional | Hammers Standard / Knives Optional | Hammers Standard / Knives Optional |
| HP Required | 35 - 70 | 40 - 70 | 45 - 70 | 50 - 70 |
| Working Width | 63" | 69" | 80.7" | 86-1/2" |
| # of Hammers | 20 | 22 | 26 | 28 |
| # of Belts | 4 | 4 | 4 | 4 |
| Hydraulic Offset | 12" | 12" | 12" | 12" |
| Overall Width | 69" | 75-1/2" | 87.4" | 93" |
| Rear Remotes Required | 2 | 2 | 2 | 2 |
| Weight (lbs) | 908 lbs | 957 lbs | 1063 lbs | 1116 lbs |
| Hitch | Cat 1 | Cat 1 | Cat 1 | Cat 1 |
| Diagram |
