Grapple Rake Attachment

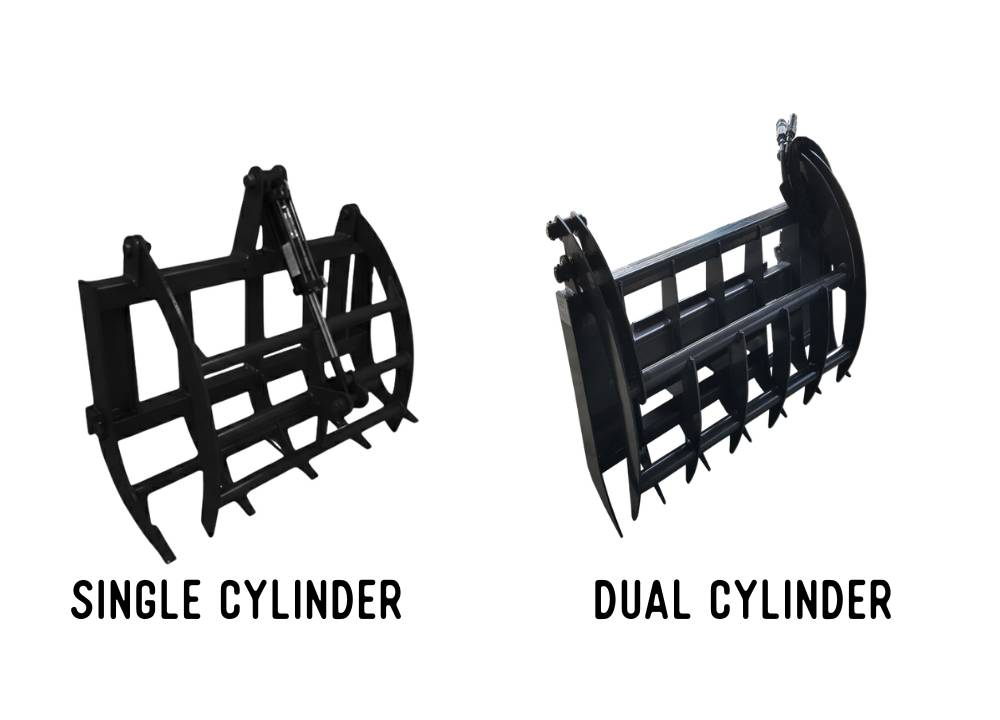

Our Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight places. A single grapple or two independent grapples are available. We use American-made cylinders, rated at 4,000 psi, to handle the toughest jobs.

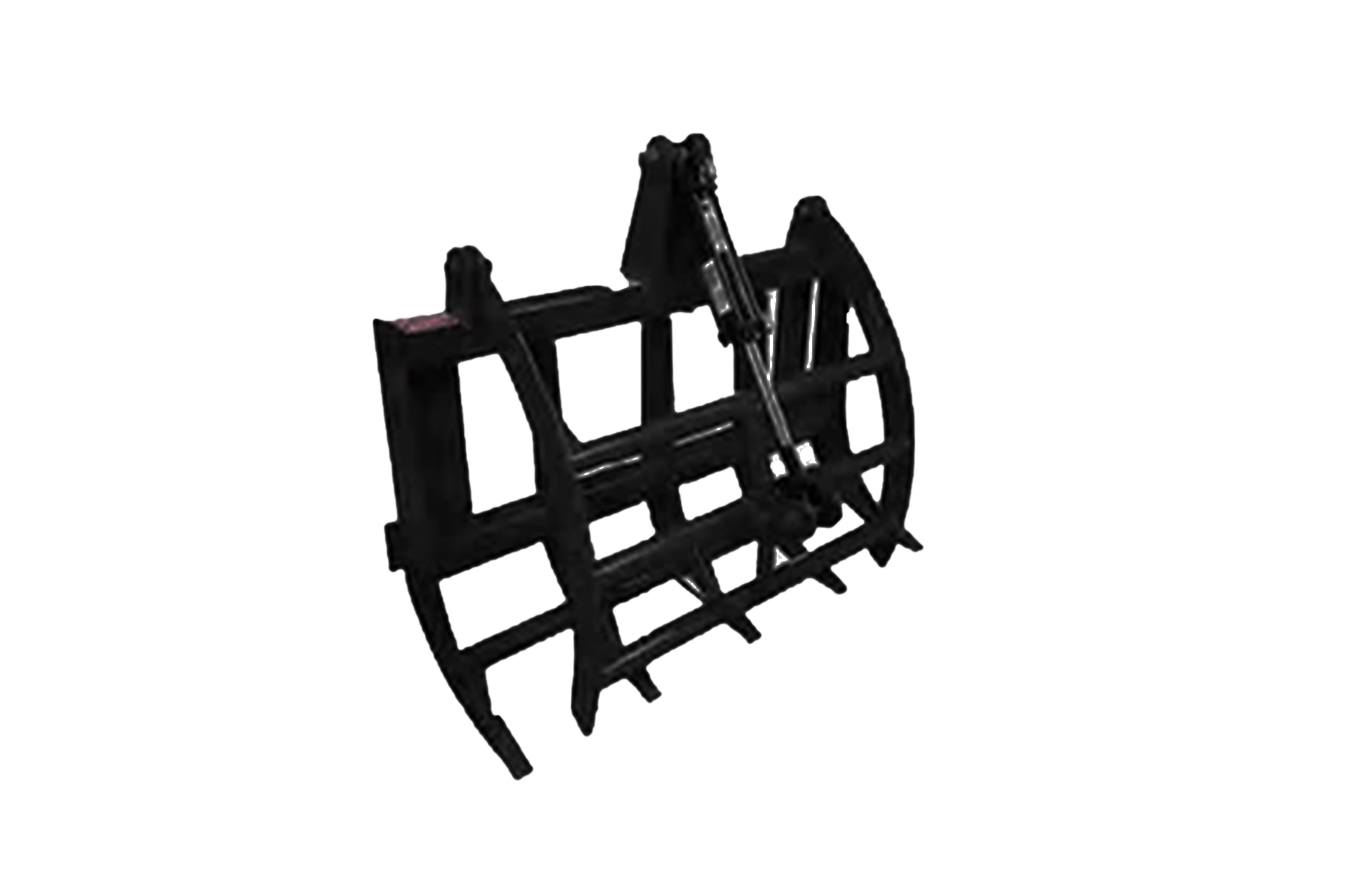

Our Compact Tractor Grapple Rake is for use on tractors less than 40 HP and is built heavy enough for rigorous use, but light enough for compact tractors.
Available Colors:
Gray
Specs
Will This Fit My Skid Steer?
Unsure of what your skid steer hydraulic specs are? Click to look up your skid steer model and find your specs!
CLICK HERE >
Model:
| CTGR48 | CTGR60 | CTGR66 | CTGRDC60-PNR | CTGRDC66-PNR | CTGRDC72-PNR | |
|---|---|---|---|---|---|---|
| Product Family | Compact Tractor Grapple Rake | Compact Tractor Grapple Rake | Compact Tractor Grapple Rake | Compact Tractor Grapple Rake | Compact Tractor Grapple Rake | Compact Tractor Grapple Rake |
| Product | CTGR48 | CTGR60 | CTGR66 | CTGRDC60-PNR | CTGRDC66-PNR | CTGRDC72-PNR |
| Description | COMPACT TRACTOR GRAPPLE RAKE, 48” | COMPACT TRACTOR GRAPPLE RAKE, 60” | COMPACT TRACTOR GRAPPLE RAKE, 66” | COMPACT TRACTOR DUAL CYL GRAPPLE RAKE, 60” | COMPACT TRACTOR DUAL CYL GRAPPLE RAKE, 66” | COMPACT TRACTOR DUAL CYL GRAPPLE RAKE, 72" |
| Notes | Unique design makes it easy to roll debris into tight piles | Unique design makes it easy to roll debris into tight piles | Unique design makes it easy to roll debris into tight piles | Unique design makes it easy to roll debris into tight piles | Unique design makes it easy to roll debris into tight piles | Unique design makes it easy to roll debris into tight piles |
| Mount Options | SSL, John Deere, & Yanmar | SSL, John Deere, & Yanmar | SSL & John Deere | SSL & John Deere | SSL & John Deere | SSL & John Deere |
| Cylinder Size | 2" x 6" 4,000 PSI American Made | 2" x 6" 4,000 PSI American Made | 2" x 6" 4,000 PSI American Made | 2" x 6" 4,000 PSI American Made | 2" x 6" 4,000 PSI American Made | 2" x 6" 4,000 PSI American Made |
| RPM | Recommended for tractors 40 HP or less | Recommended for tractors 40 HP or less | Recommended for tractors 40 HP or less | Recommended for tractors 40 HP or less | Recommended for tractors 40 HP or less | Recommended for tractors 40 HP or less |
| Working Width | 48" | 60" | 66" | 60" | 66" | 72" |
| Weight (lbs) | 277 | 334 | 342 | 335 | 373 | |
| Diagram |  | | | | | |
