4500 Series Heavy-Duty Grader Blades

These Heavy-Duty Grader Blades are our toughest grader blades. These models will easily meet all of your land grading, leveling, or backfilling needs. Designed for 50 to 75 hp tractors, they feature a five-position angle adjustment, three-position tilt adjustment, utilize a ratchet jack for the offset adjustment, and are Category I & II quick hitch compatible. Three models provide working widths from 72” to 96”.

Available Colors:

Gray

Specs

Model:

Product Family4500 Series
Product4506
Description6' Heavy Duty Grader Blade
HP Required45 - 75
Working Width72"
Height17"
Angle Adjustment5 position, Forward and Reverse
Tilt Adjustment3 Position

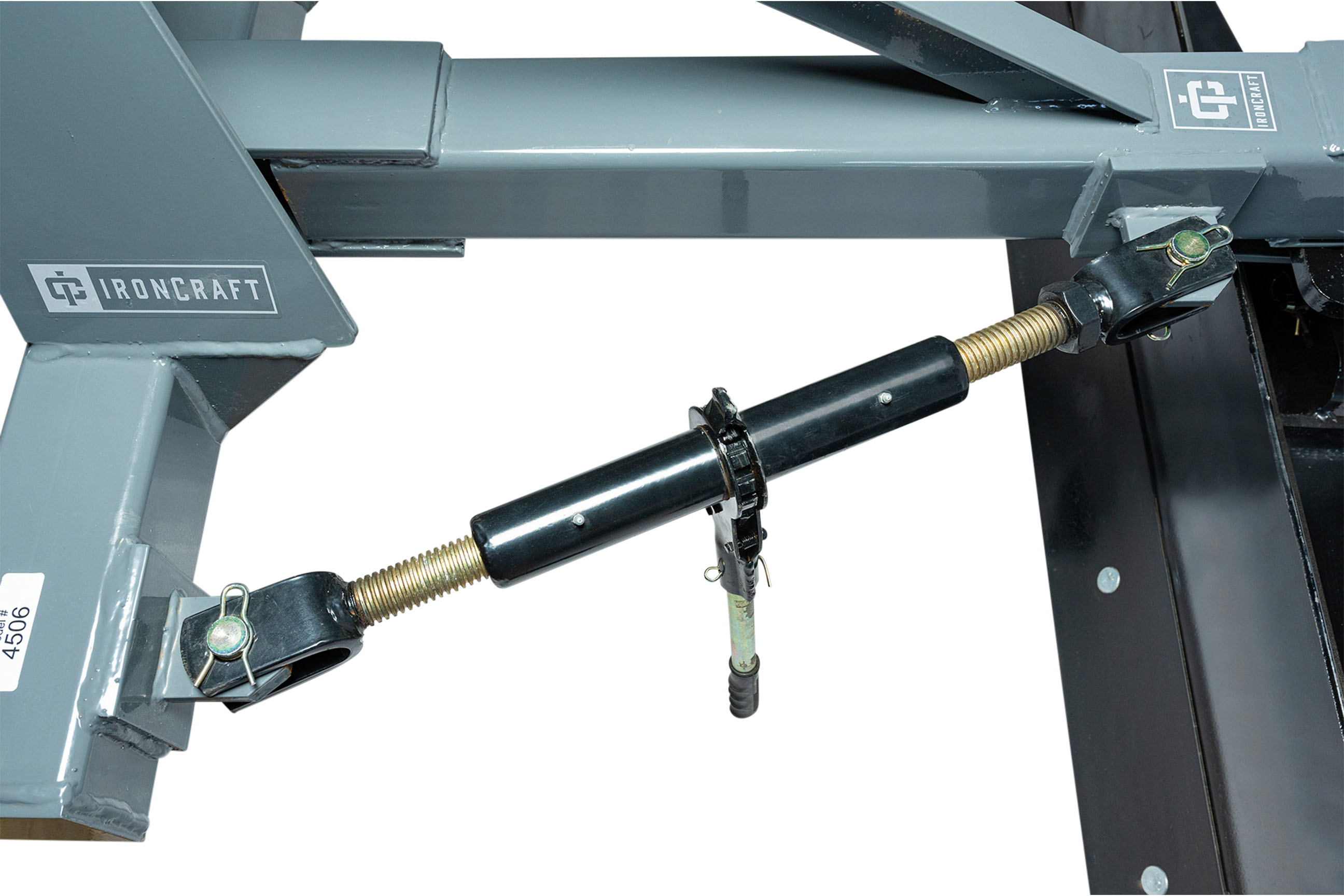

Offset AdjustmentRatchet Jack
A-frame Material3/8"
Cutting Edges6"
Weight439 lbs
HitchCat 1 & 2
Product Family4500 Series
Product4507
Description7' Heavy Duty Grader Blade
HP Required50 - 75
Working Width84"
Height17"
Angle Adjustment5 position, Forward and Reverse
Tilt Adjustment3 Position
Offset AdjustmentRatchet Jack
A-frame Material3/8"
Cutting Edges6"
Weight469 lbs
HitchCat 1 & 2
Product Family4500 Series
Product4508
Description8' Heavy Duty Grader Blade
HP Required55 - 75
Working Width96"
Height17"
Angle Adjustment5 position, Forward and Reverse
Tilt Adjustment3 Position
Offset AdjustmentRatchet Jack
A-frame Material3/8"
Cutting Edges6"
Weight503 lbs
HitchCat 1 & 2
