3700 Series Dual Edge Graders

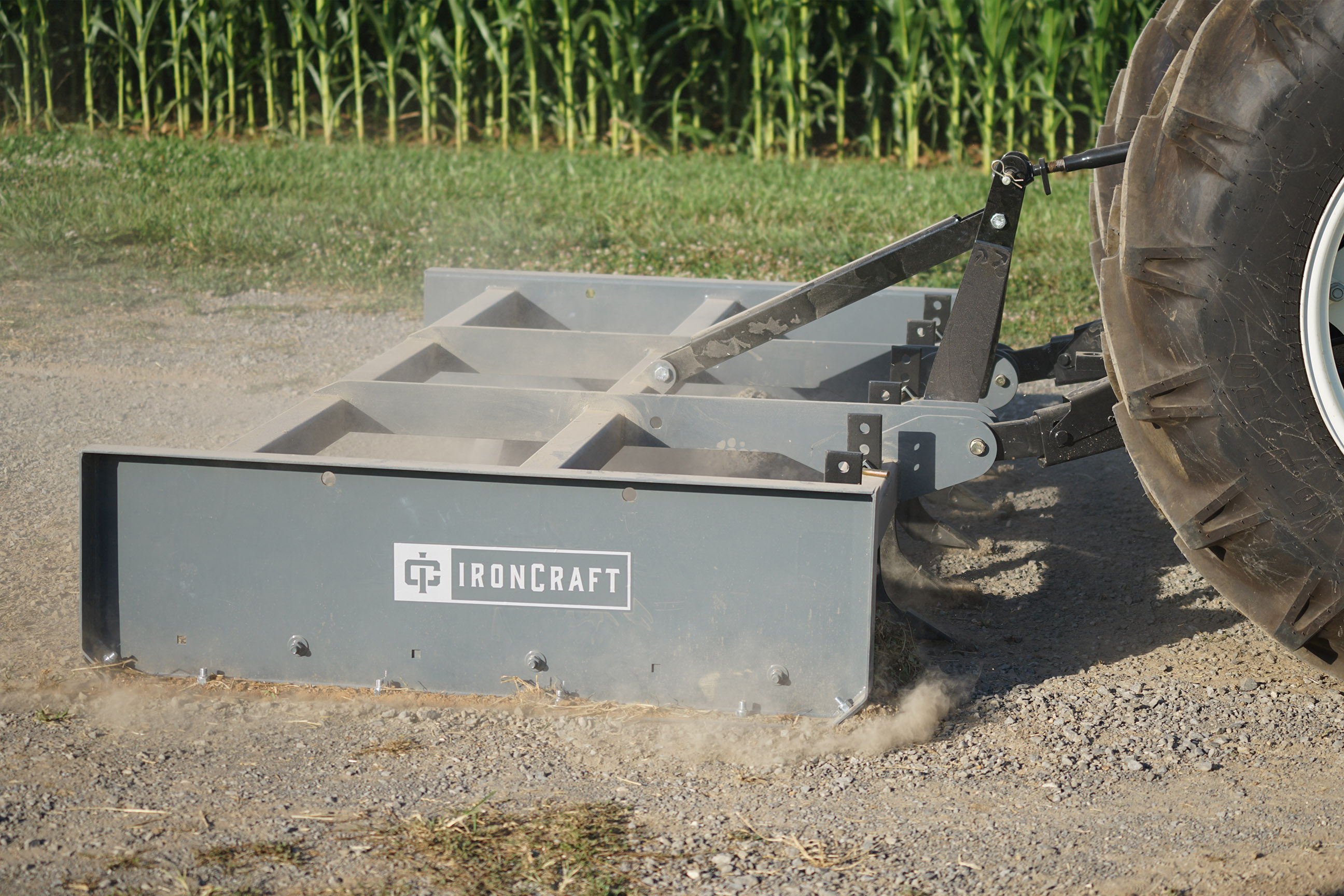

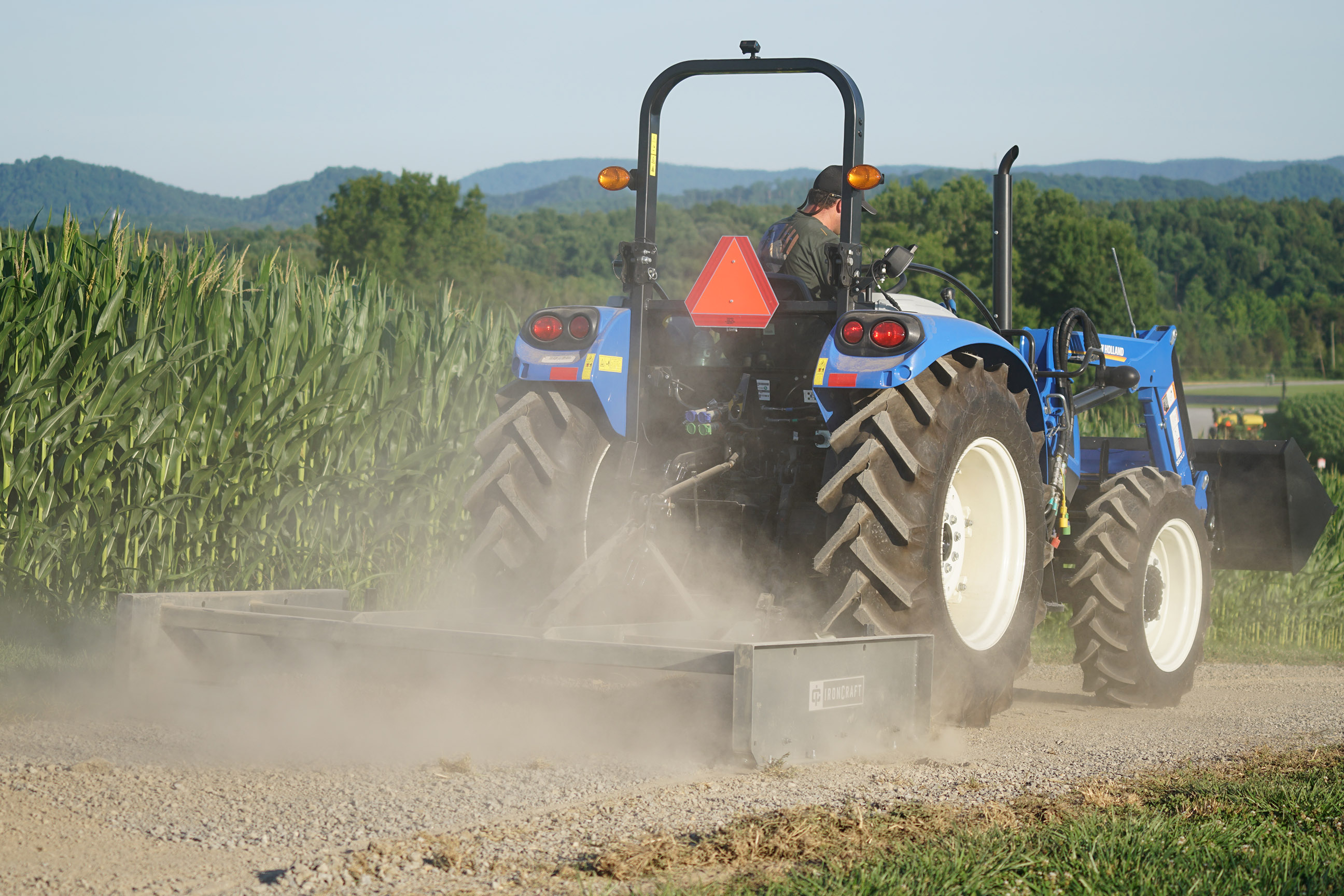

IronCraft’s 3700 dual-edge graders can be used to maintain gravel driveways, level a garden plot, and smooth dirt areas including horse arenas and barn floors. It is designed with an adjustable cutting depth, making the shanks optional.

The 3700 dual-edge graders feature replaceable skid shoes, reversible blades, adjustable blade height, and adjustable shanks.

Designed to work with 40 to 80 hp tractors, the 3700 Graders accommodate a Category I quick hitch, Category II 3-Point and Category II Quick Hitch if applicable. The 3700 dual-edge graders are available in two working widths from 84” to 96”.

View Specs

View Literature

View Manual

Available Colors:

Gray

Specs

Model:

We've Got You Covered.

Find a Dealer near you to get started.

Dealer Locator

Become a Dealer

Product Family	3700 Series
Product	3707
Description	7' Heavy Duty Dual Edge Grader
HP Required	40 - 80
Working Width	84"
Height	33-3/4"
Overall Width	89-5/8"
Overall Length	58-1/2"
# of Shanks	6

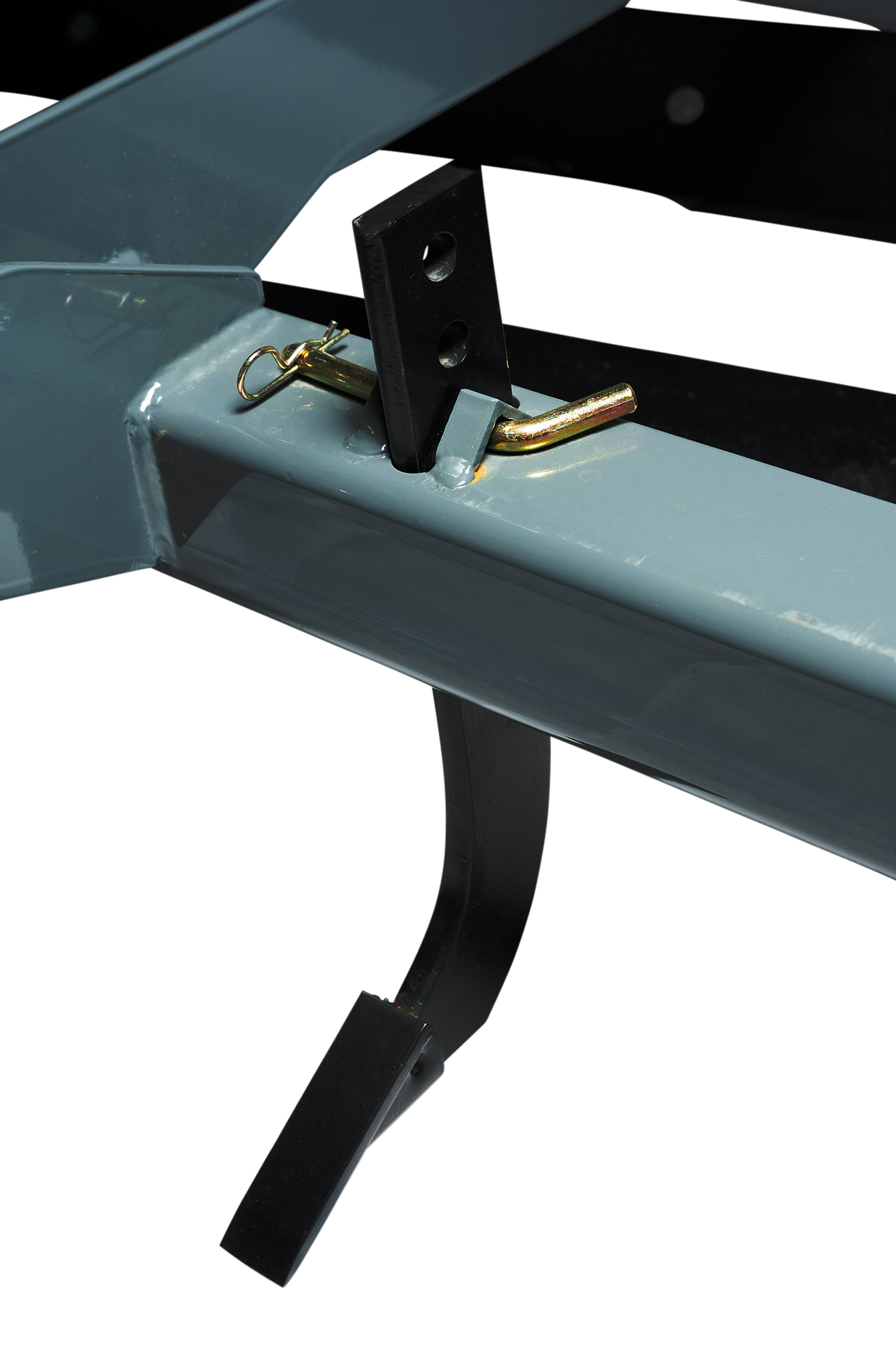

Scarifier Shank Construction	3 Position Heat Treated shank with dimpled on hardened tips
Shank Adjustment	At grade level, 1-1/2" and 3" below grade level
A-frame Material	3/8"
Weight (lbs)	700 lbs
Side Panel Thickness	3/16"
Side Panel Height	15-11/16"
Side Panel Length	52-3/8"
Scarifier Support Tube Construction	4/" x 4" x 1/4"
Rear Beam Construction	Two Beams 3" x 3" x 3/16" spaced 21-1/8" apart
Skid Shoes	Replaceable 3/16" x 2-3/4" x 53-9/16"
Hitch Type	Clevis Type
Hitch	Cat 1 & 2

Product Family	3700 Series
Product	3708
Description	8' Heavy Duty Dual Edge Grader
HP Required	50 - 80
Working Width	96"
Height	33-3/4"
Overall Width	101-5/8"
Overall Length	58-1/2"
# of Shanks	6
Scarifier Shank Construction	3 Position Heat Treated shank with dimpled on hardened tips
Shank Adjustment	At grade level, 1-1/2" and 3" below grade level
A-frame Material	3/8"
Weight (lbs)	740 lbs
Side Panel Thickness	3/16"
Side Panel Height	15-11/16"
Side Panel Length	52-3/8"
Scarifier Support Tube Construction	4/" x 4" x 1/4"
Rear Beam Construction	Two Beams 3" x 3" x 3/16" spaced 21-1/8" apart
Skid Shoes	Replaceable 3/16" x 2-3/4" x 53-9/16"
Hitch Type	Clevis Type
Hitch	Cat 1 & 2

Machine Width:	N/A
Machine Height:	N/A
Machine Length:	N/A
Wheelbase:	N/A
Operating Weight:	N/A
Tipping Load:	N/A
Operating Capacity:	N/A
Operating Capacity (50%):	N/A
Hydraulic Horsepower (Standard Flow):	N/A
Hydraulic Horsepower (High Flow):	N/A

3-Point Tractor

40 - 80 Engine HP
