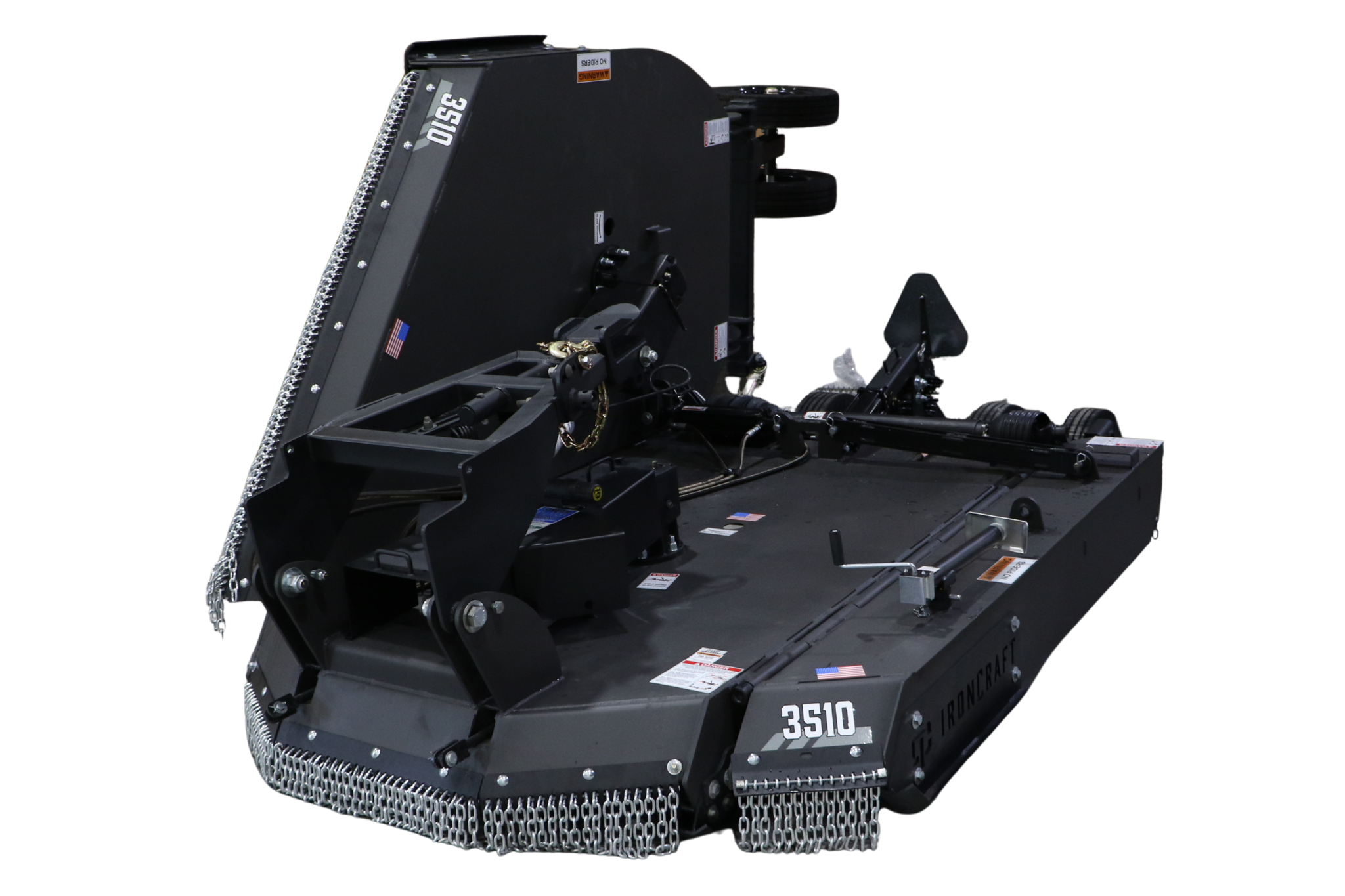

3510 Series Heavy-Duty 10' Single-Wing Flex-Wing Cutter
The 3510 Single-Wing Flex-Wing Cutter is built for heavy-duty mowing applications where a smaller cutting width and increased wing movement are needed. With a 126″ working width and 3-1/2″ cutting capacity, the 3510 is designed for tractors with a minimum of 60 PTO horsepower.

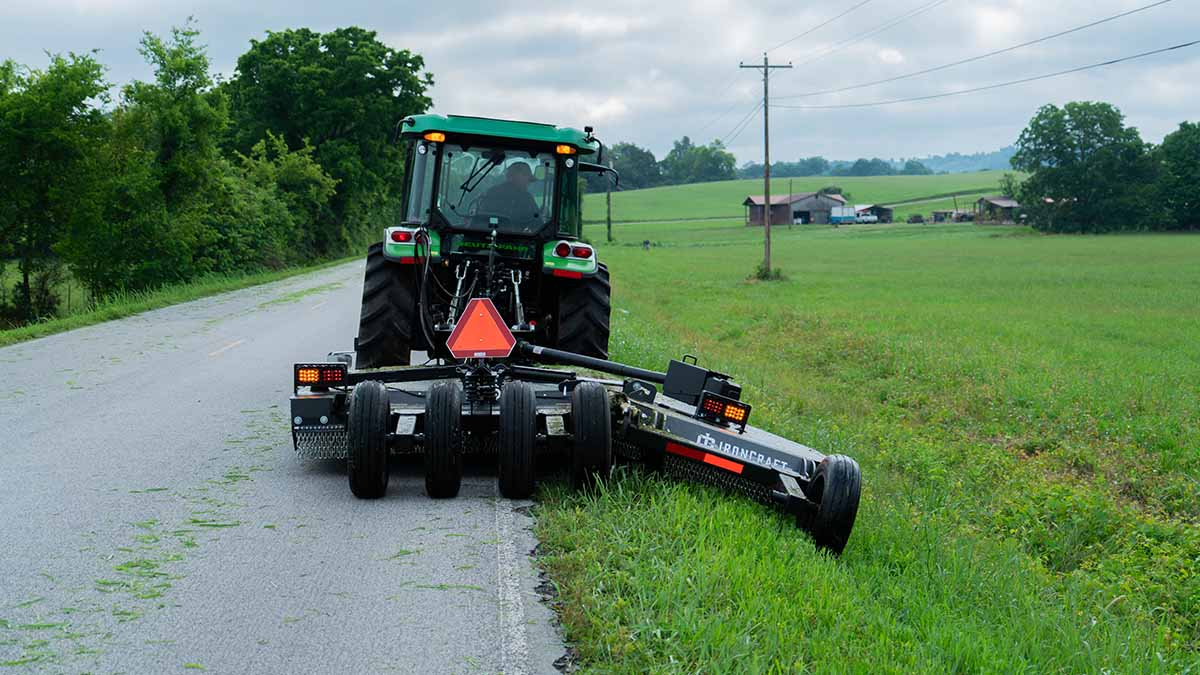

The single-wing design provides 22 degrees of downward flex and up to 100 degrees of upward flex to follow uneven terrain, slopes, and roadside areas. Two heavy-duty springs positioned on the center tailwheel axle provide suspension, while the swivel-pivot self-leveling hitch helps the cutter adjust as ground conditions change.
The 3510 features a 10-gauge deck, 1/4″ x 13-1/2″ side bands, 1/2″ x 4″ uplift blades, and replaceable skid shoes. Slip-clutch driveline protection helps protect drivetrain components during operation. A 90″ transport width keeps the cutter narrow when moving between jobs.
Available Colors:
Model:
| 3510 | |
|---|---|
| Product Family | 3510 Series |
| Product | 3510 |
| Description | 10' Offset Heavy Duty Flex-Wing |
| RPM | 540 or 1000 RPM |
| HP Required | 60 minimum PTO |
| Working Width | 126" |
| Overall Width | 142.5" |
| Overall Length | 200" |
| Transport Width | 90" |
| Transport Height | 83" - 87" |
| Tongue Weight | 1650 lbs |
| Weight (lbs) | 5000 lbs w/ 5- 26" laminated tires |
| Cutting Height | 2" to 15" |
| Cutting Capacity | 3-1/2" |
| Deck Thickness | 10 GA |
| Side Bands | 1/4" x 13-1/2" |
| Suspension | 2 Heavy Duty Springs Positioned on the center tailwheel axle |
| Skid Shoes | Replaceable |
| PTO Drive Shaft | ASAE CAT 6 |
| Wing Drive PTO | ASAE CAT 4 |
| Driveline Protection | Slip Clutch |
| Blade Holder | Round Pan |
| Gearbox Rating | 235 HP |
| Outboard Gearbox Rating | 190 HP |
| Wing Flex | 22 Degrees Down to 100 Degrees Up |
| Wing Free Float | 22 Degrees Down to 45 Degrees Up |
| Blades | 1/2" x 4" Uplift |
| Blade Overlap | 6" |
| Wheel Type | 20" or 26" Laminated, 27" Aircraft, or 27" Foam Filled |
| Hitch Type | Swivel Pivot - Self Leveling |
| Guarding Options | Single Row Chains Standard |
| FPM | 17135 |
| Diagram |
