3-Point Tractor
Attachments
32 - 90 PTO HP

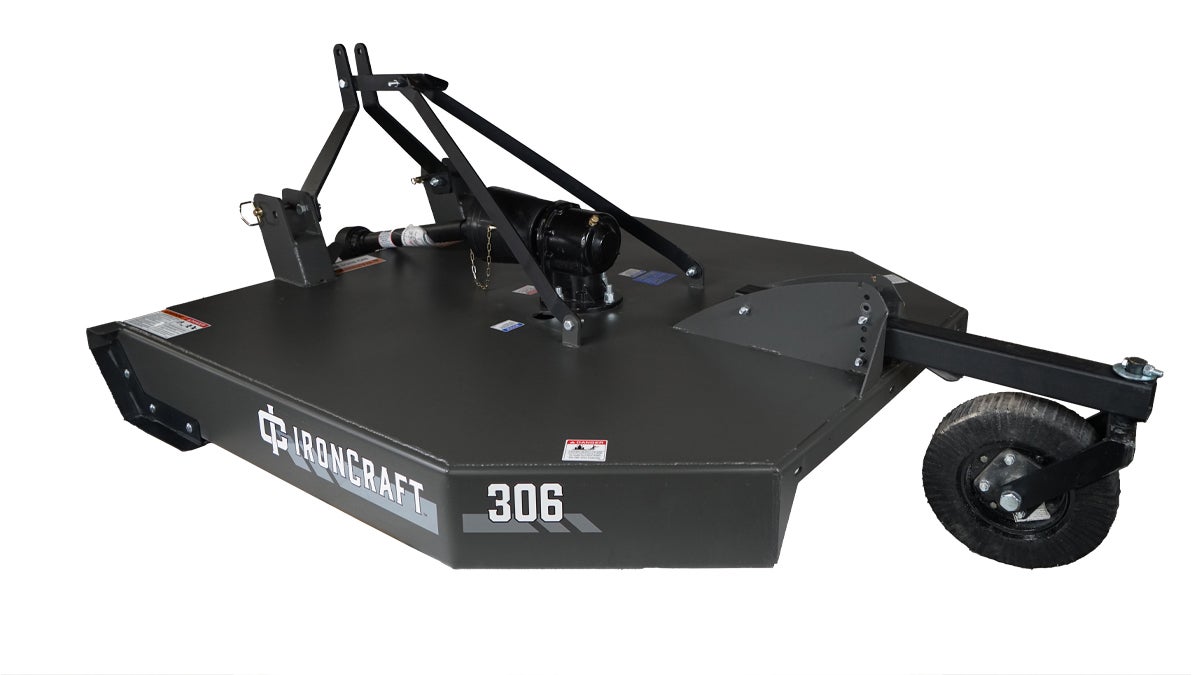

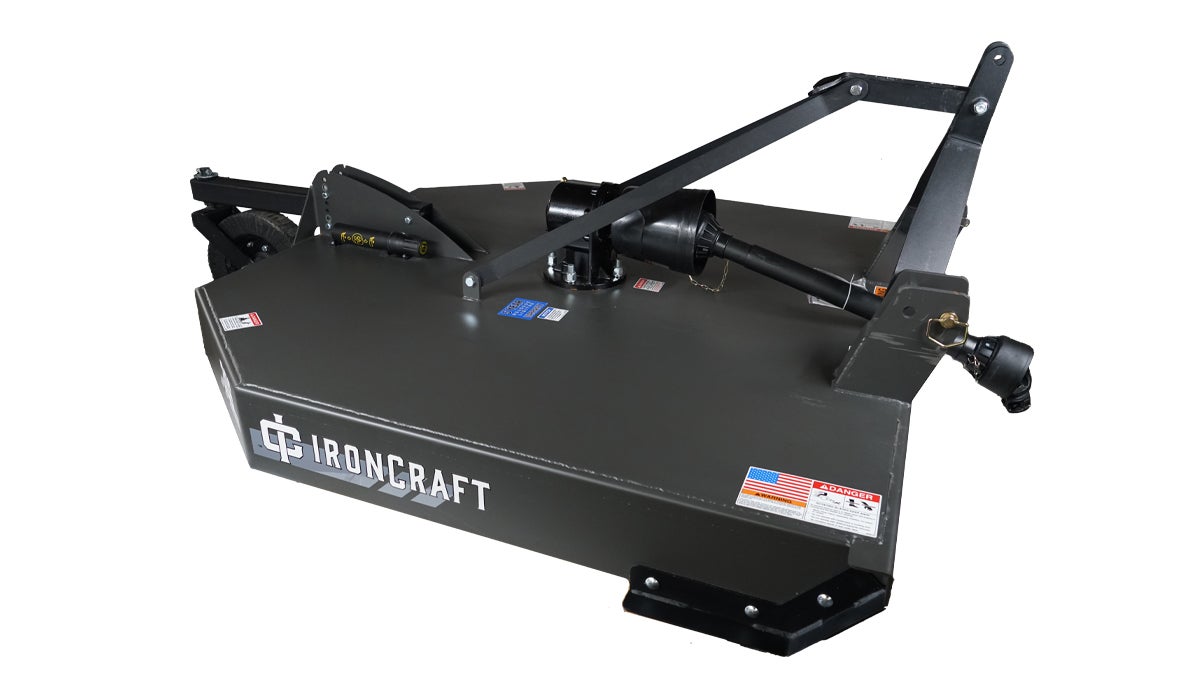

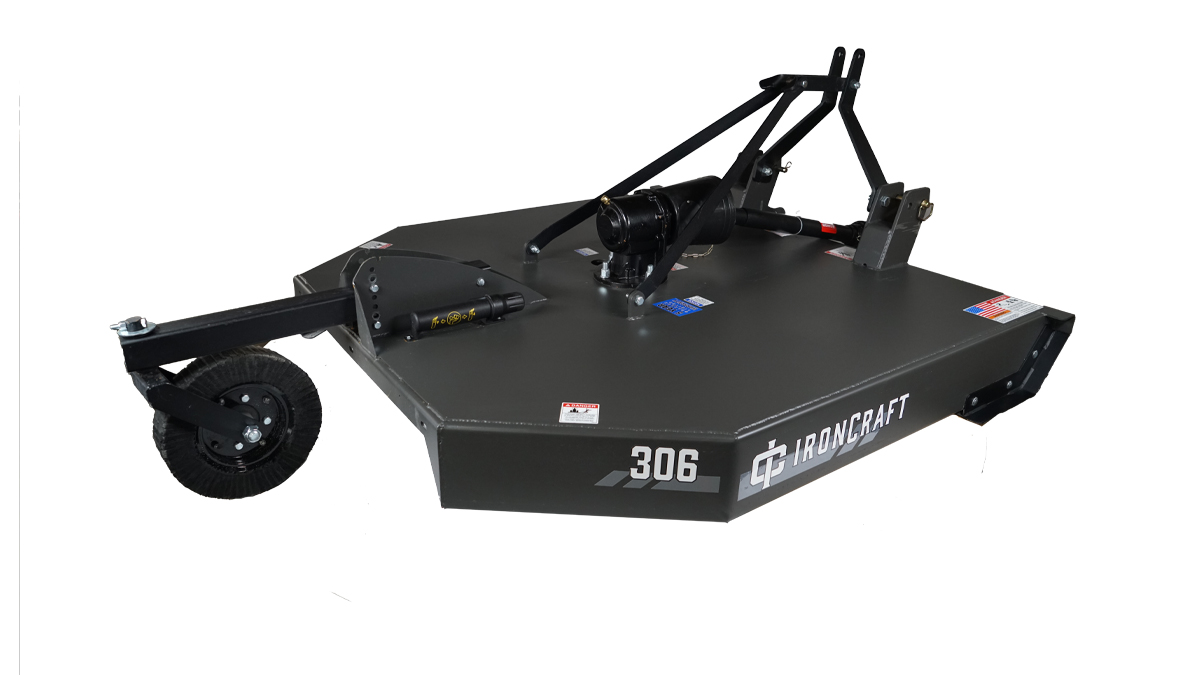

300 Series Smooth-Top Cutters
These smooth-top cutters are designed for medium/heavy-duty applications such as weeds, grass, and brush up to 2” diameter. These cutters are designed to work with 32 to 90 horsepower tractors, and are available in 60” and 72” widths.
These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields are optional.
Available Colors:
Gray
, Orange
, Red
, Green
, Blue
Specs
Model:
| 305 | 306 1 TW | 306 2 TW | |
|---|---|---|---|
| Product Family | 300 Series | 300 Series | 300 Series |
| Product | 305 | 306 1 TW | 306 2 TW |
| Description | 5' Smooth Top Cutter | 6' Smooth Top Cutter - Single Tailwheel | 6' Smooth Top Cutter - Dual Tailwheel |
| RPM | 540 | 540 | 540 |
| HP Required | 32 - 90 PTO | 45 - 90 PTO | 47 - 90 PTO |
| Working Width | 60" | 72" | 72" |
| Weight (lbs) | 640 lbs | 740 lbs | 740 lbs |

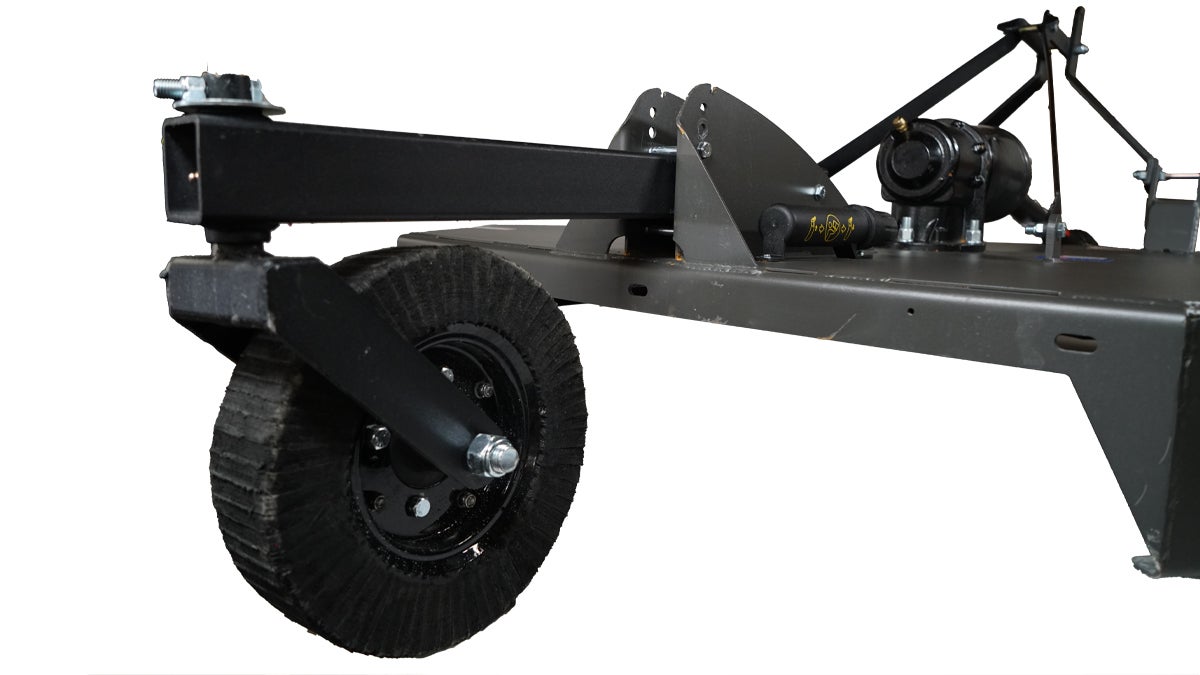

| Number of Tailwheels | 1 | 1 | 2 |
| Cutting Height | 2" Minimum | 2" Minimum | 2" Minimum |
| Cutting Capacity | 2" | 2" | 2" |
| Deck Thickness | 10 GA | 10 GA | 10 GA |
| Side Bands | 8-1/2" | 8-1/2" | 8-1/2" |

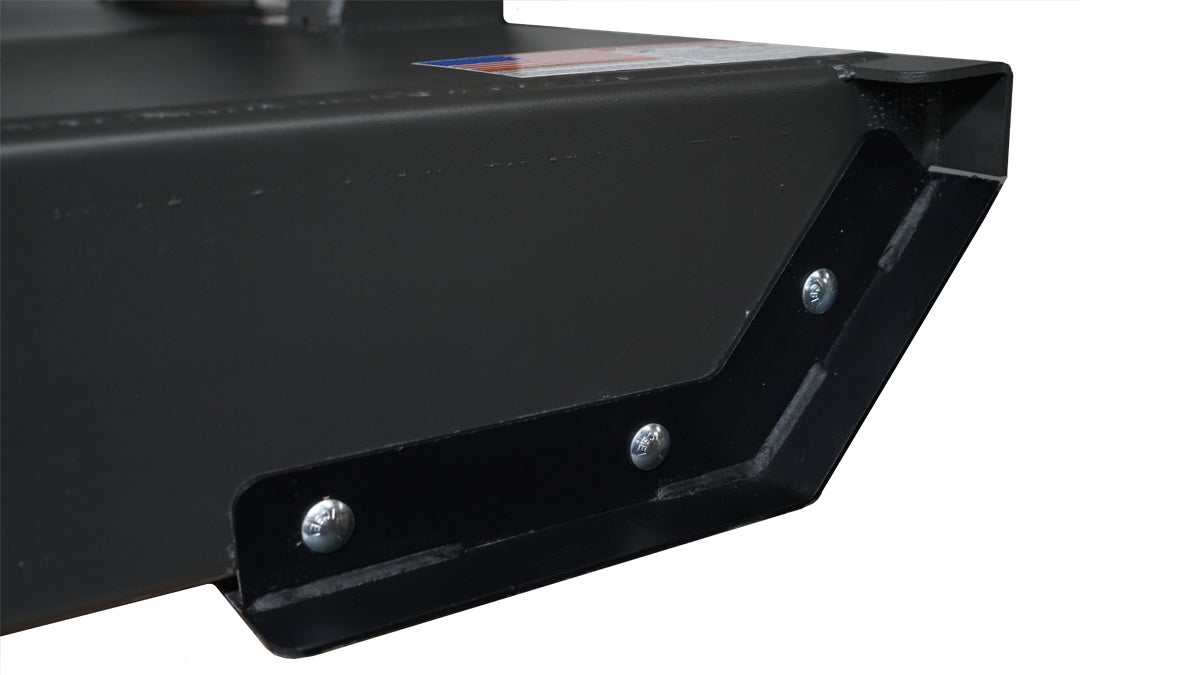

| Skid Shoes | Replaceable | Replaceable | Replaceable |
| PTO Drive Shaft | Series 4 | Series 4 | Series 4 |
| Driveline Protection | Slip Clutch | Slip Clutch | Slip Clutch |
| Blade Holder | 1/2" Plate | 1/2" Plate | 1/2" Plate |

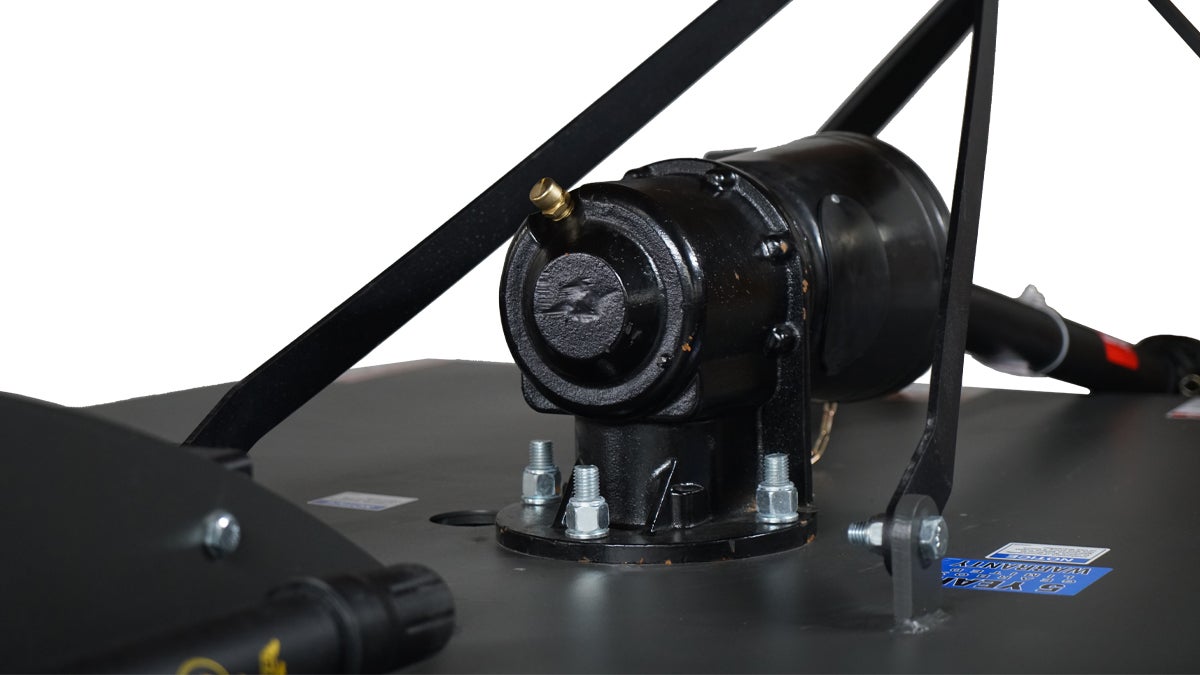

| Gearbox Rating | 100 HP | 100 HP | 100 HP |
| Blades | 1/2" x 3" | 1/2" x 3" | 1/2" x 3" |
| Wheel Type | 15" Laminated | 15" Laminated | 15" Laminated |
| Hub Type | Greaseable | Greaseable | Greaseable |
| Hitch | Cat 1 | Cat 1 | Cat 1 |
| Gearbox Warranty | 5 year limited | 5 year limited | 5 year limited |
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains | Rubber Guards or Chains |
| FPM | 13,000 FPM | 14,500 FPM | 14,500 FPM |
| Diagram |
