3-Point Tractor

Attachments

30-70 HP

No Till Seeder

The IronCraft 3-Point No-Till Seeder prepares, plants, and covers seed in one pass with minimal soil disturbance. Establish food plots, pasture grasses, and conservation plantings with consistent seed placement and improved seed-to-soil contact.

Key Features

  • 60-, 72-, and 84-inch working widths

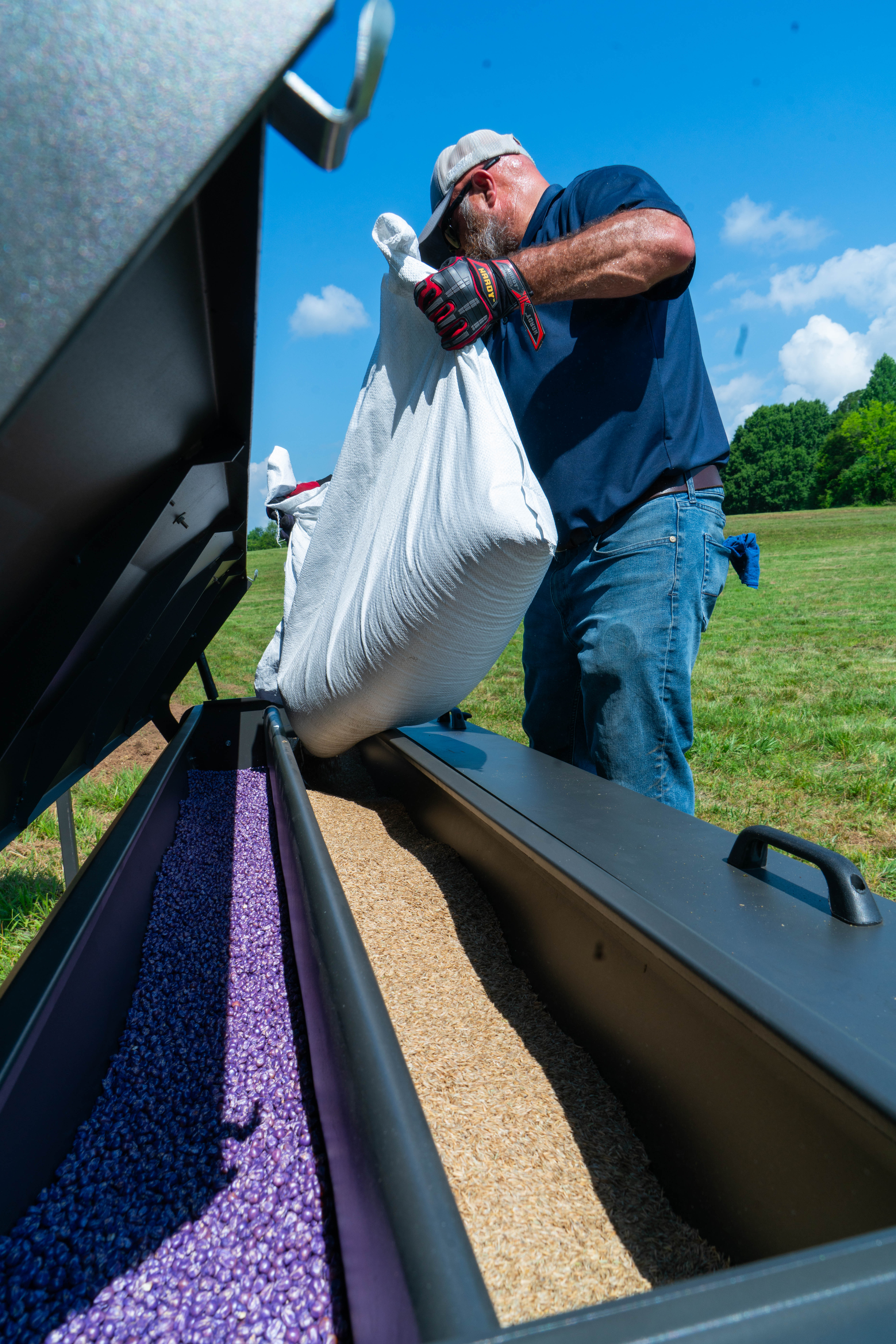

  • Three independent seed boxes
  • Ground-driven planting system
  • Spring-ride suspension for uneven terrain
  • Adjustable cultipacker for improved seed-to-soil contact
  • Category 1 and Category 2 hitch compatibility
  • Greaseable bearings and easy-access rear deck plate

Available Colors:

Gray

Model:

NTS60NTS72NTS84
Product FamilyNTS SeederNTS SeederNTS Seeder
ProductNTS60NTS72NTS84
Description60" No Till Seeder72" No Till Seeder84" No Till Seeder
HP Required30 PTO Minimum50 PTO Minimum70 PTO Minimum
Working Width60"72"84"
Overall Width88"100"112"
Overall Length63"63"63"
Weight (lbs)1950 lbs2150 lbs2460 lbs
Seedbox Volume (1) (Bushel)2.232.723.22
Seedbox Volume (2) (Bushel)2.232.723.22
Seedbox Volume (3) (Bushel)1.321.61.9
Seedbox Length69"84"99.5"
Drive Wheel Size16"16"16"
Wheel TypePneumaticPneumaticPneumatic
Hitch TypeCat 1 & 2Cat 1 & 2Cat 1 & 2
Overall Height50"50"50"
Diagram
