3-Point Tractor
Attachments
50 PTO HP

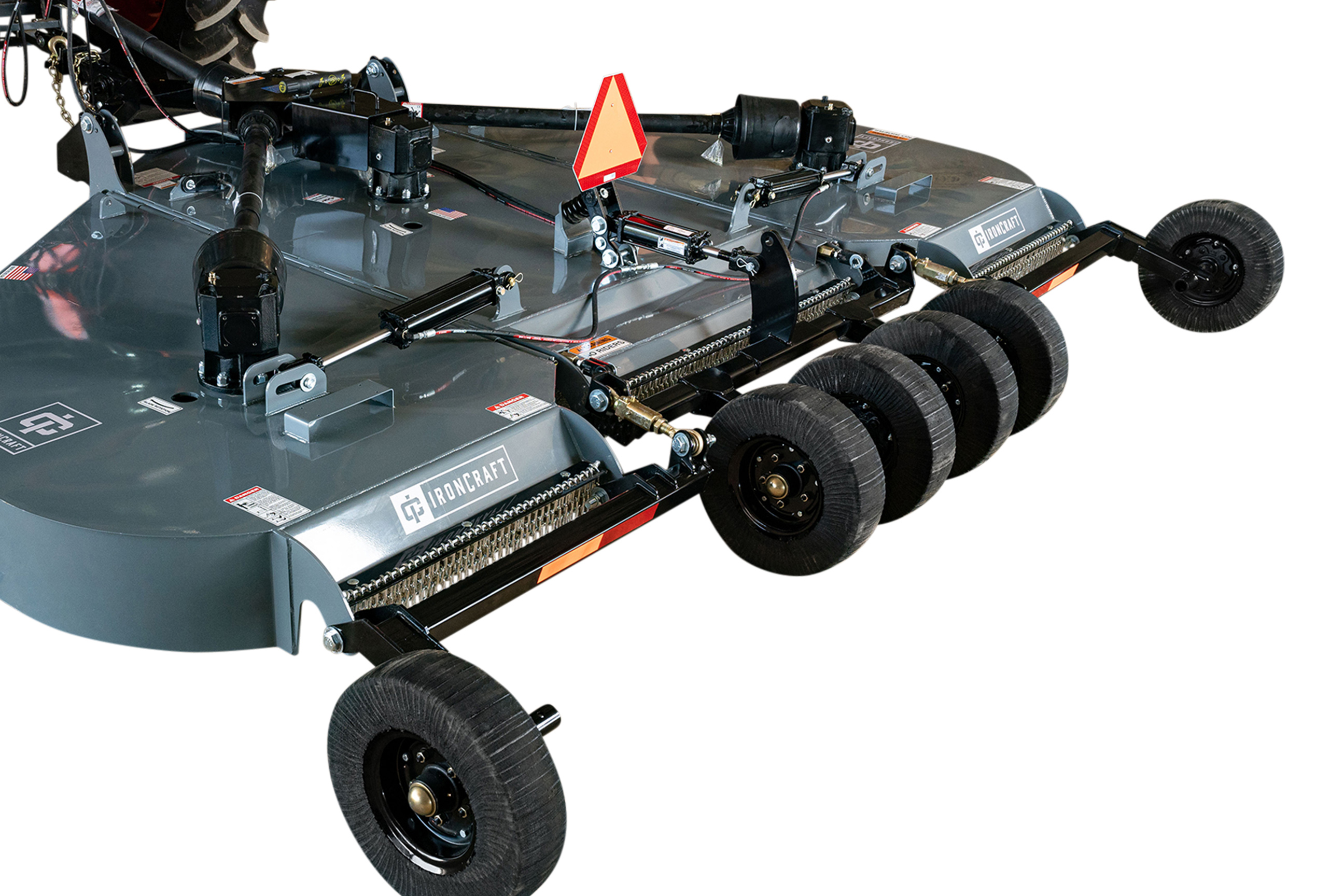

2515 Series Medium-Duty 15' Flex-Wing Cutters
Utilizing a smooth-top deck and spring suspension, the 2515 will make quick work of tough jobs. Designed for use with tractors with a 50 horsepower minimum, this medium-duty Flex-Wing requires only one hydraulic remote. For its 180” cut width, the cutter uses three spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields, clutch shields, chain discharge shields and a safety tow chain.
Available Colors:
Gray
, Orange
, Red
, Green
, Blue
Specs
Model:
| Product Family | 2515 Series |
| Product | 2515 |
| Description | 15' Medium Duty Flex Wing Rotary Cutter |
| RPM | 540 or 1000 |
| HP Required | 50 minimum PTO |
| Working Width | 180" |
| Overall Width | 188" |
| Overall Length | 186" |
| Transport Width | 90" |
| Transport Height | 83" - 87" |
| Tongue Weight | 1500 lbs |
| Weight | 4500 lbs. w/ 6-26" laminated tires |
| Cutting Height | 2" to 15" |
| Cutting Capacity | 2-1/2" |
| Deck Thickness | 10 GA |

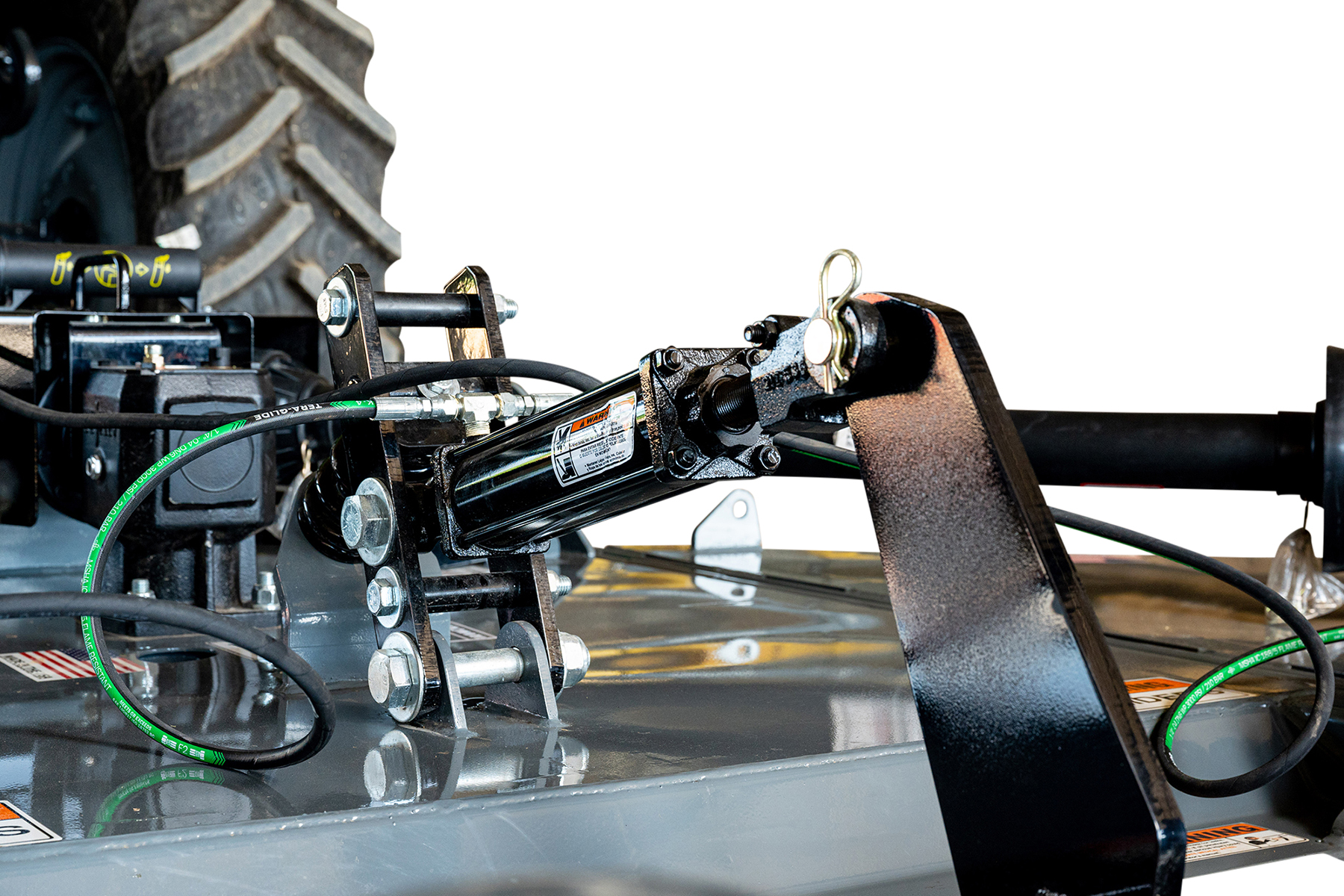

| Height Adjustment | Hydraulic Cylinder |
| Wing Adjustments | Heavy DutyTurnbuckle |
| Jack Stand | Standard |
| Side Bands | 1/4" x 13-1/2" |
| Suspension | 1 Heavy Duty Spring |
| Skid Shoes | Replaceable |
| PTO Drive Shaft | ASAE CAT 6 |
| Wing Drive PTO | ASAE CAT 4 |
| Driveline Protection | Slip Clutch |
| Blade Holder | Round Pan |
| Gearbox Rating | 235 HP |
| Outboard Gearbox Rating | 190 HP |

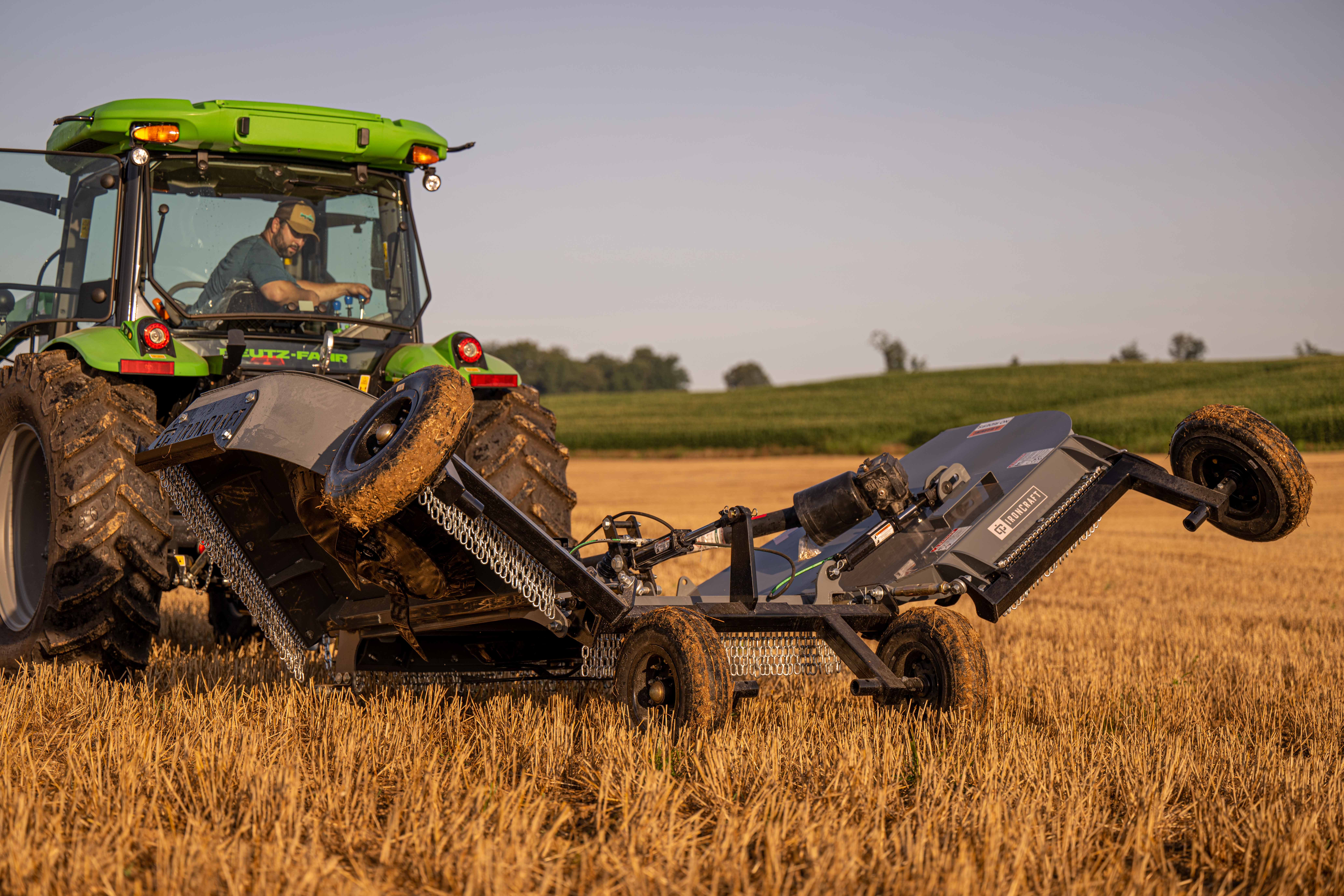

| Wing Flex | 22 Degrees Down to 88 Degrees Up |
| Wing Free Float | 22 Degrees Down to 45 Degrees Up |
| Blades | 1/2" x 4" Uplift |
| Blade Overlap | 6" |
| Output Shaft Diameter | 2" |
| Wheel Type | 20" or 26" Laminated, 26" Foam Filled, or 29" Pneumatic |
| Hitch Type | Swivel Pivot Self Leveling |
| Gearbox Warranty | 5 year limited |
| Safety Tow Chain | Standard |
| Guarding Options | Single Row Chains Standard |
| FPM | 17135 |
