3-Point Tractor
Attachments
47 - 100 PTO HP

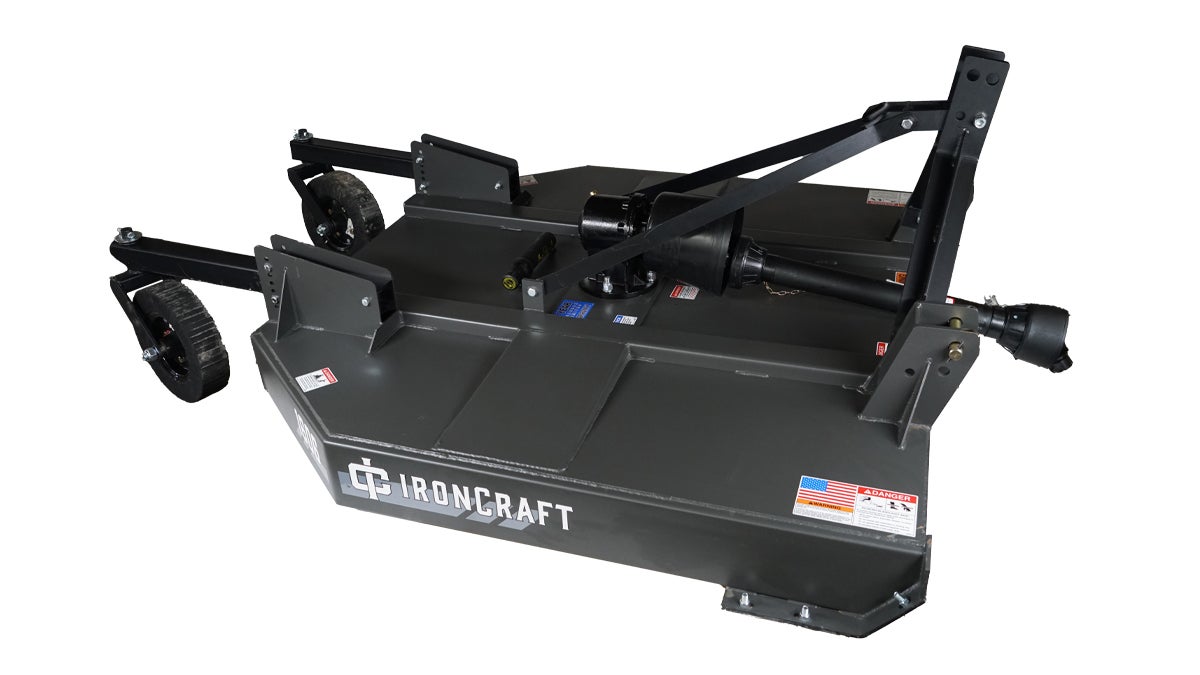

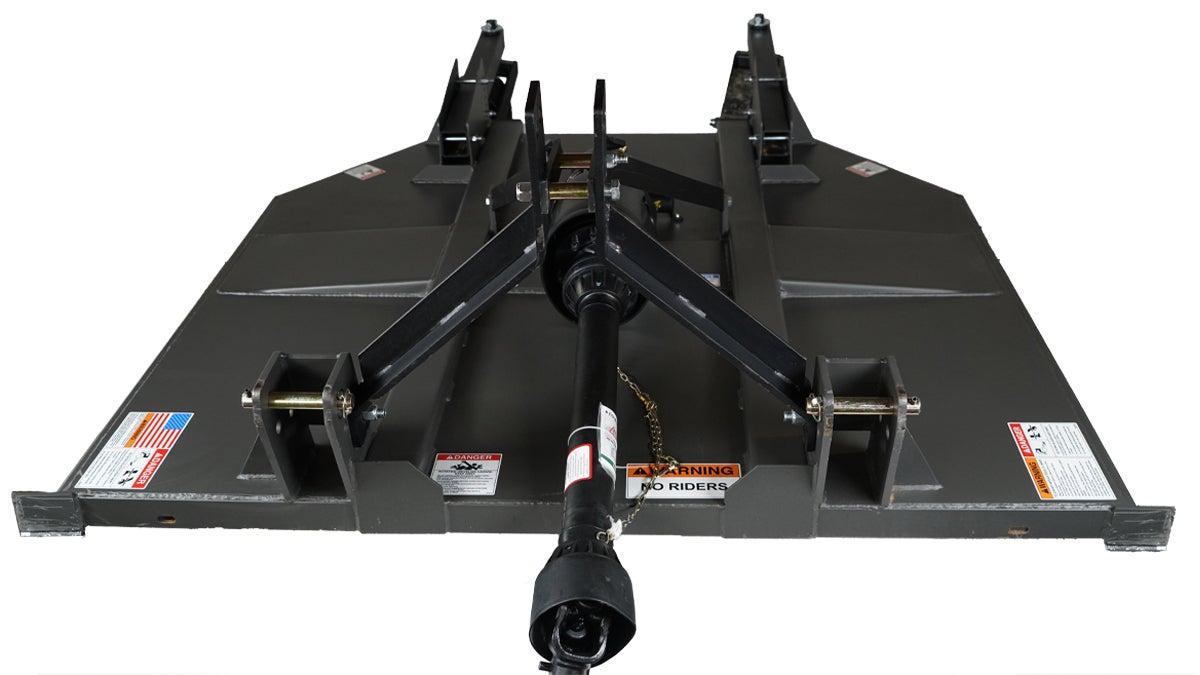

1600 Series Heavy-Duty Cutters
These Heavy-Duty Cutters are designed for heavy-duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with 47 to 100 hp tractors, and are available in 72” and 84” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain and rubber discharge shields are available.
Available Colors:
Gray
, Orange
, Red
, Green
, Blue
Specs
Model:
| 1606 | 1607 | |
|---|---|---|
| Product Family | 1600 Series | 1600 Series |
| Product | 1606 | 1607 |
| Description | 6' Heavy Duty Cutter | 7' Heavy Duty Cutter |
| RPM | 540 or 1000 | 540 or 1000 |
| HP Required | 47 - 100 PTO | 55 - 100 PTO |
| Working Width | 72" | 84" |
| Weight (lbs) | 1205 lbs | 1375 lbs |
| Cutting Capacity | 3" | 3" |
| Deck Thickness | 7 GA | 7 GA |
| Side Bands | 8" | 8" |
| PTO Drive Shaft | Series 5 | Series 5 |
| Blade Holder | 1/2" | 5/8" |
| Gearbox Rating | 100 HP | 100 HP |
| Wheel Type | Laminated | Laminated |
| Hub Type | Greaseable | Greaseable |
| Hitch | Cat 1 & 2 | Cat 1 & 2 |
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains |
| Diagram |
