3-Point Tractor
Attachments
35 - 95 PTO HP
1500 Series Roundback Cutters

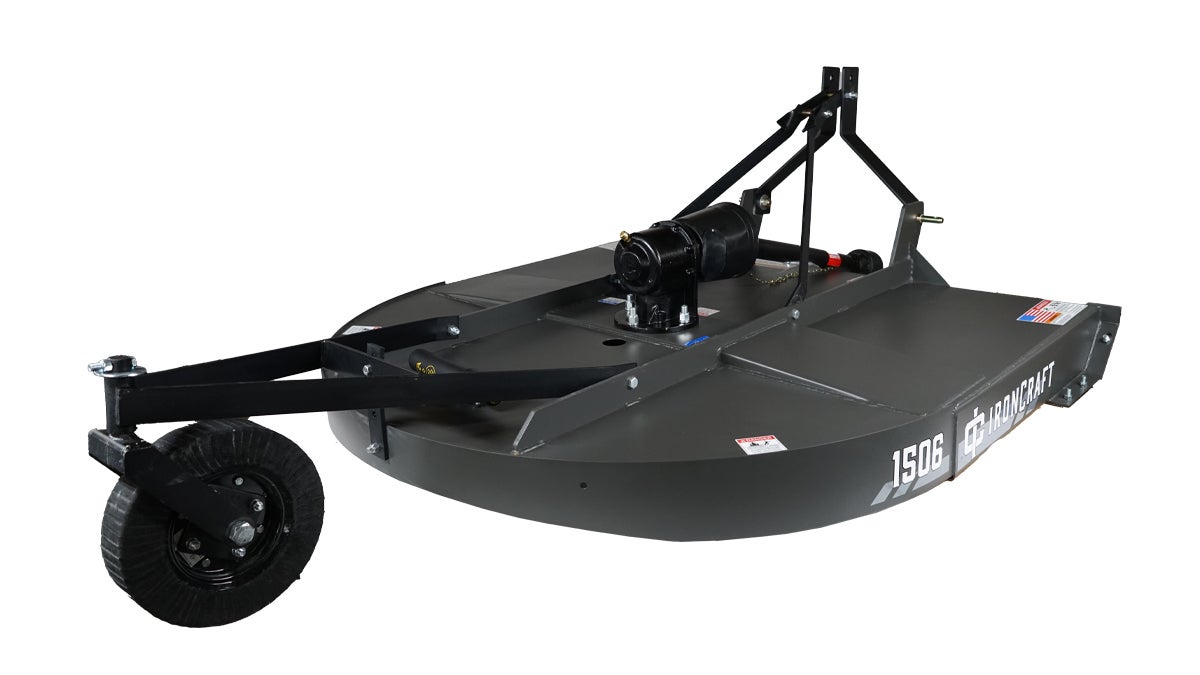

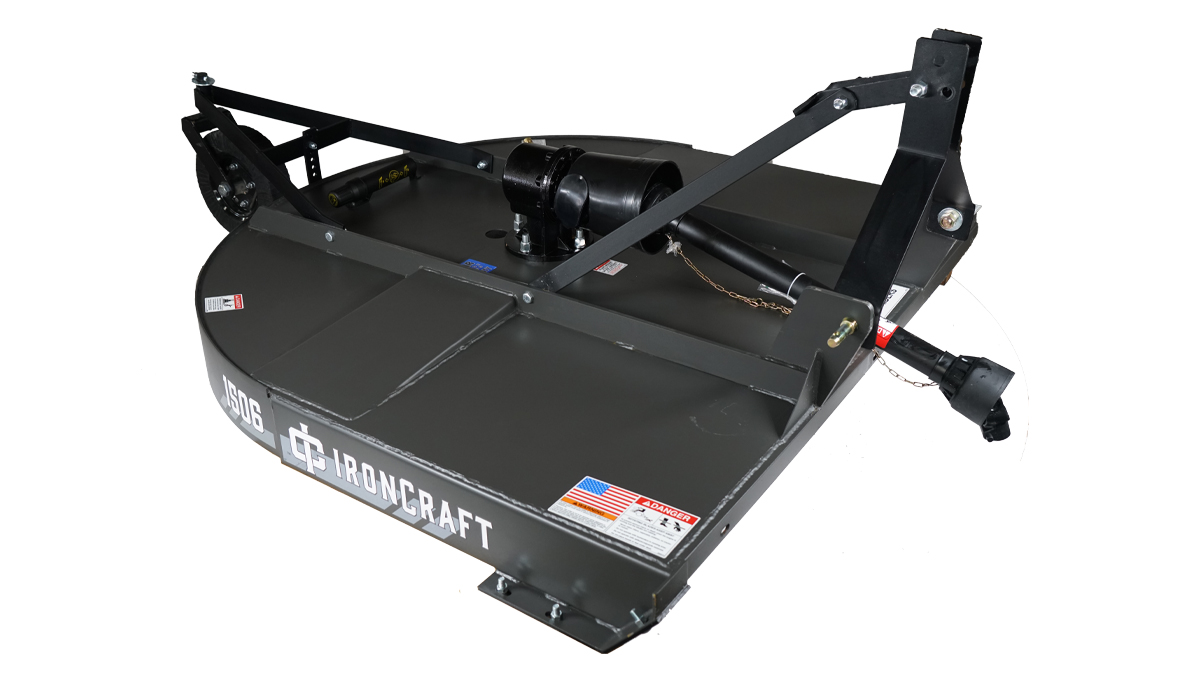

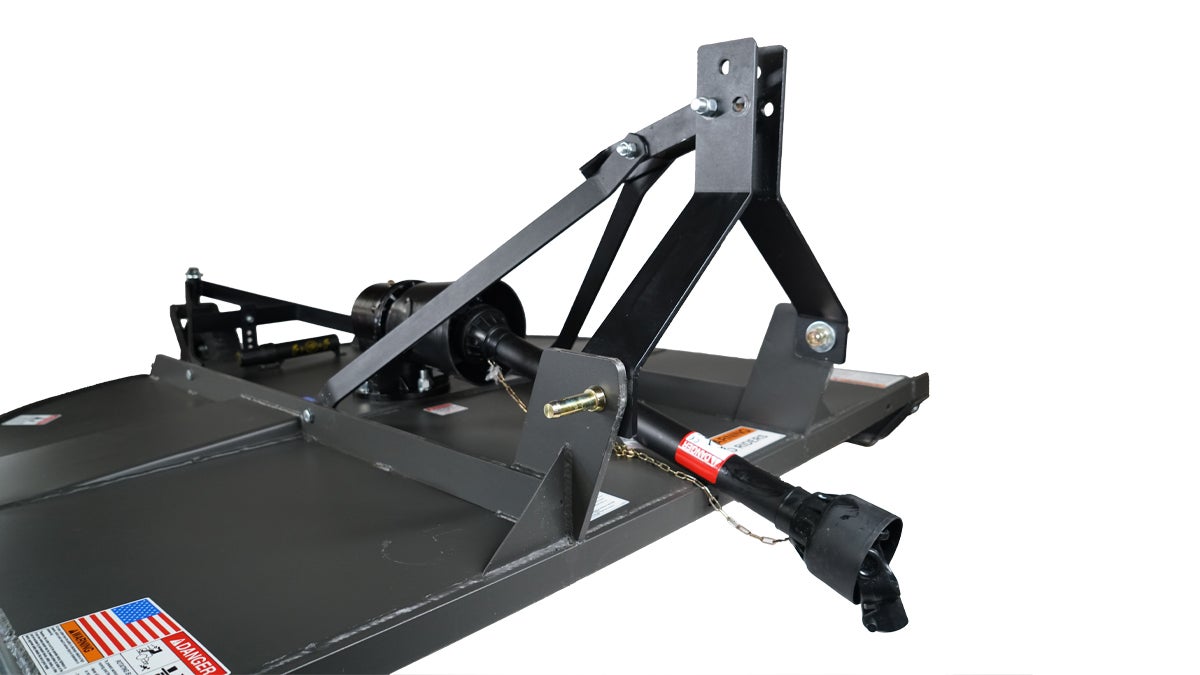

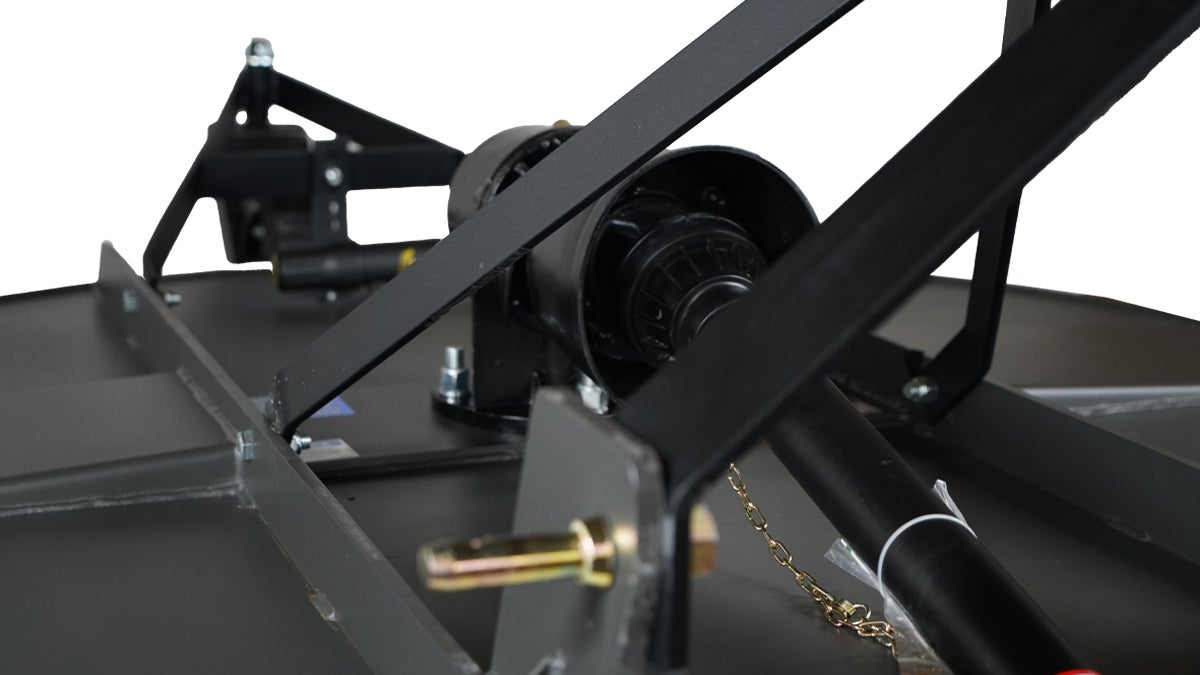

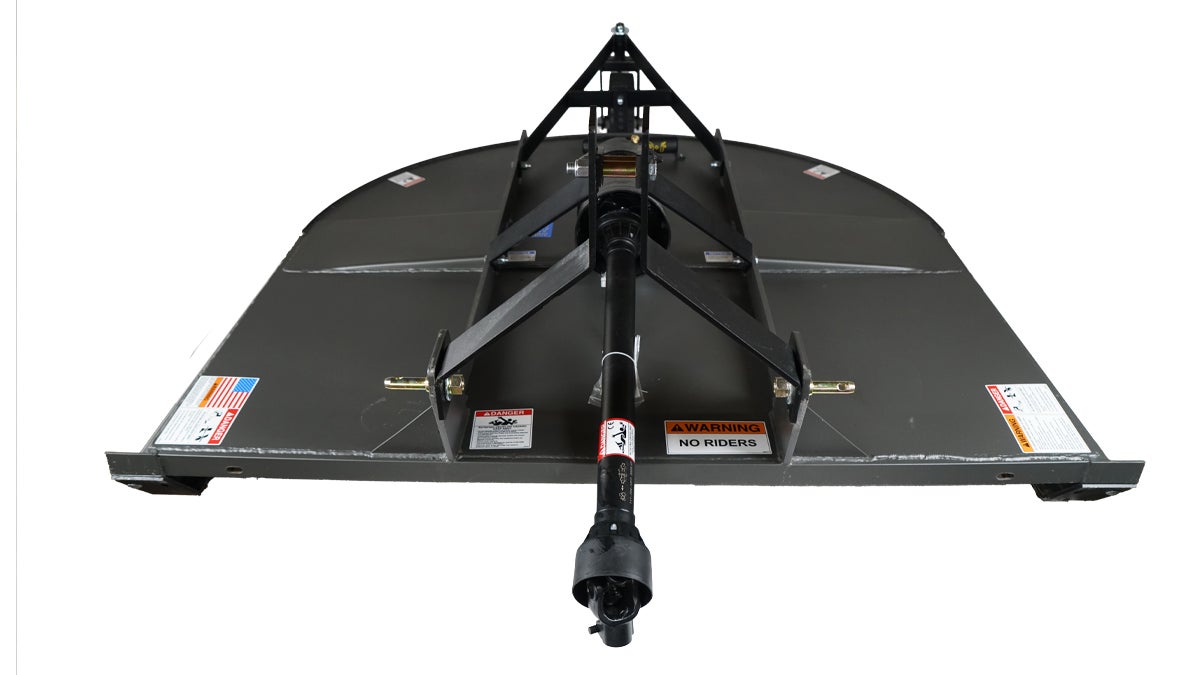

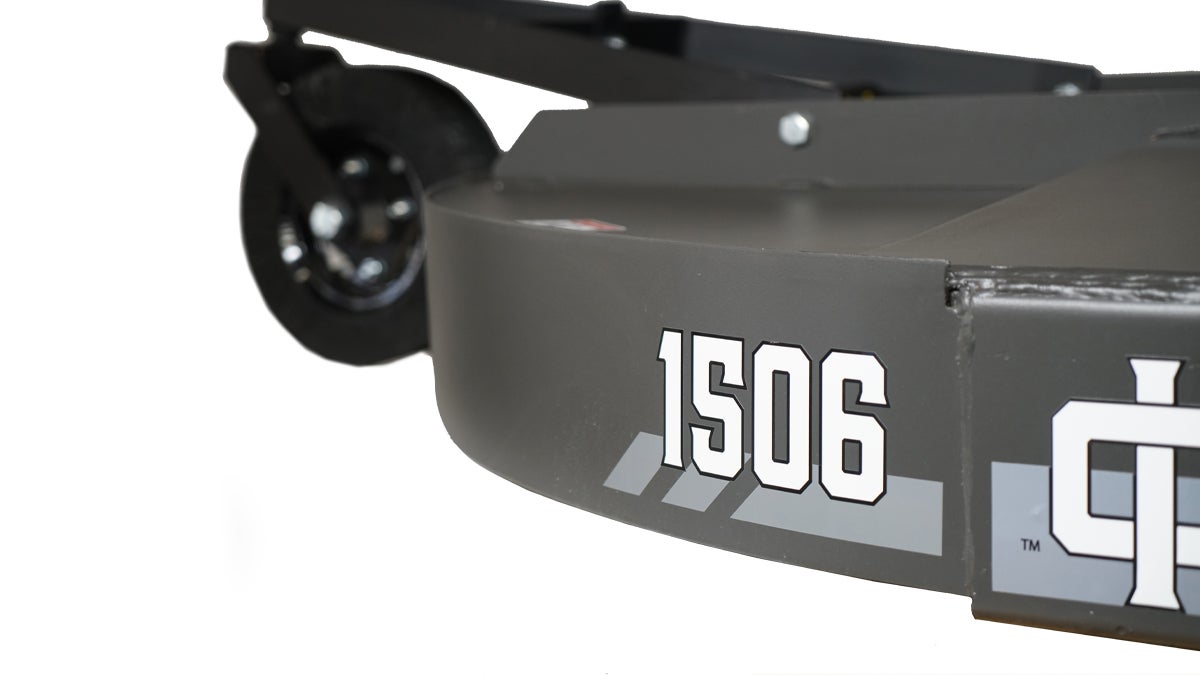

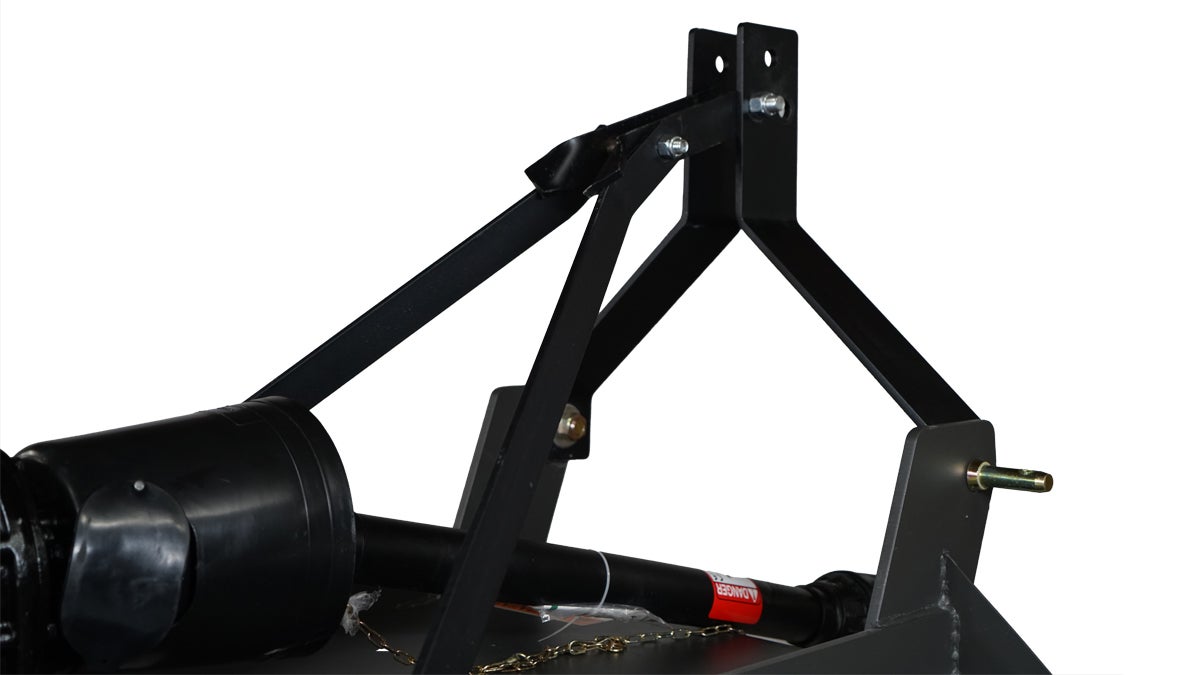

These Roundback Cutters are designed for heavy-duty applications such as weeds, grass, and brush up to 2.5” or 3” diameter, depending on model. These cutters are designed to work with 35 to 95 hp tractors, and are available in 60”, 72”, and 84” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch, if equipped, protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain and rubber discharge shields are available.
Available Colors:
Gray
, Orange
, Red
, Green
, Blue
Specs
Model:
| 1505 | 1506 | 1507 | |
|---|---|---|---|
| Product Family | 1500 Series | 1500 Series | 1500 Series |
| Product | 1505 | 1506 | 1507 |
| Description | 5' Heavy Duty Roundback Cutter | 6' Heavy Duty Roundback Cutter | 7' Heavy Duty Roundback Cutter |
| RPM | 540 | 540 | 540 |
| HP Required | 35 - 80 PTO | 40 - 80 PTO | 55 - 95 PTO |
| Working Width | 60" | 72" | 84" |
| Weight (lbs) | 745 lbs | 900 lbs | 1305 lbs |
| Cutting Capacity | 2-1/2" | 2-1/2" | 3" |
| Deck Thickness | 10 GA | 10 GA | 10 GA |
| Side Bands | 7" | 7" | 8" |
| PTO Drive Shaft | Series 4 | Series 4 | Series 6 |
| Blade Holder | 1/2" Plate | 1/2" Plate | 1/2" Plate |
| Gearbox Rating | 100 HP | 100 HP | 150 HP |
| Wheel Type | Laminated | Laminated | Laminated |
| Hub Type | Greaseable | Greaseable | Greaseable |
| Hitch | Cat 1 | Cat 1 | Cat 2 |
| Gearbox Warranty | 5 year limited | 5 year limited | 5 year limited |
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains | Rubber Guards or Chains |
| FPM | 12400 | 14800 | 17400 |
| Diagram |
