3-Point Tractor
Attachments
15-65 PTO HP

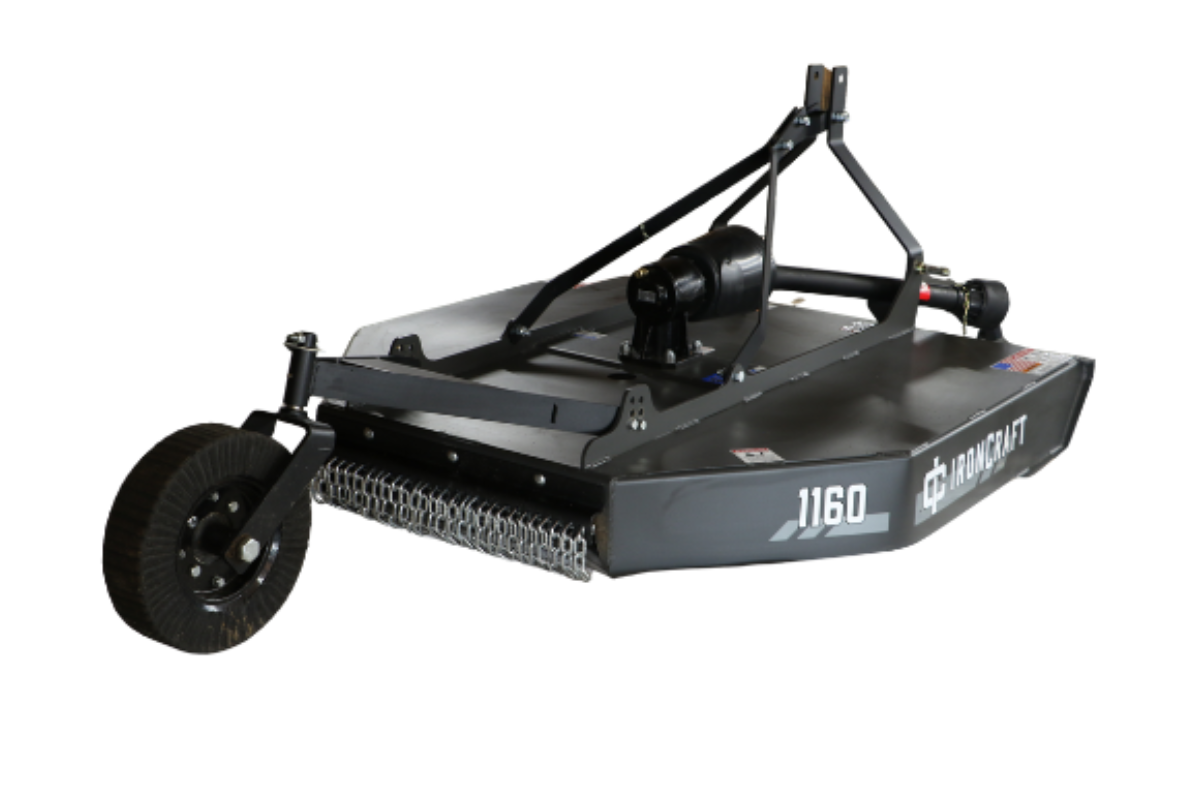

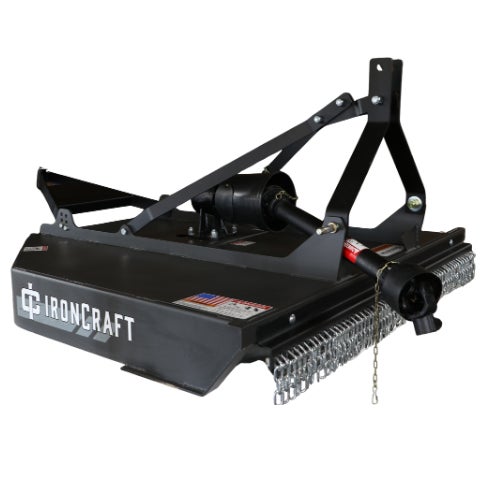

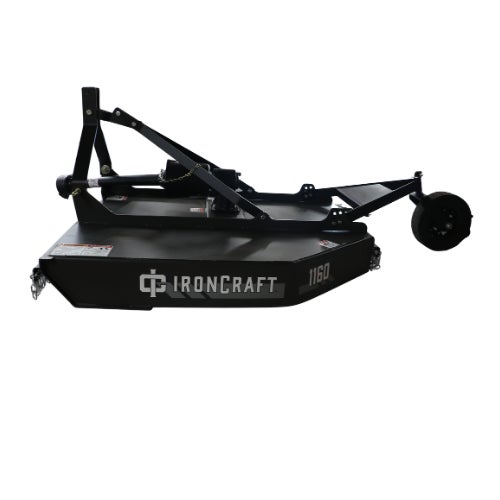

1100 Series Rotary Cutter
The IronCraft 1100 Series Rotary Cutter is an economical, high-performance solution for pastures, fence lines, and general property maintenance. Designed for tractors from 15 to 65 PTO HP, this series delivers dependable cutting power with a 1″ cutting capacity across 48″, 60″, and 72″ working widths.
-
Constructed with an 11-gauge steel deck, integrated skid shoes, and 1/2″ x 3″ blades for maximum durability.
-
Features a 55 HP gearbox backed by a 5-year limited warranty, paired with a Series 4 PTO shaft and Cat 1 hitch.
-

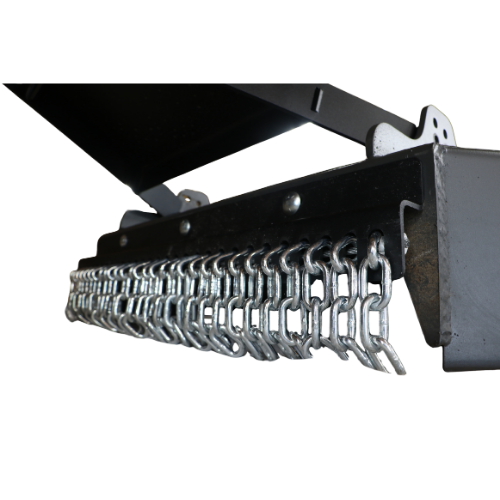

Available with shear pin or slip clutch driveline protection and your choice of rubber guards or safety chains.
-
Equipped with a greaseable laminated tailwheel hub to handle rough terrain with ease.
Available Colors:
Model:
| 1148 | 1160 | 1172 | |
|---|---|---|---|
| Product Family | 1100 Series | 1100 Series | 1100 Series |
| Product | 1148 | 1160 | 1172 |
| Description | 4' Rotary Cutter | 5' Rotary Cutter | 6' Rotary Cutter |
| RPM | 540 | 540 | 540 |
| HP Required | 15-45 PTO | 25-45 PTO | 40-65 PTO |
| Working Width | 48" | 60" | 72" |
| Weight (lbs) | 538 lbs | 596 lbs | 726 lbs |
| Cutting Capacity | 1-1/2" | 1-1/2" | 1-1/2" |
| Deck Thickness | 11 GA | 11 GA | 11 GA |
| Skid Shoes | Replaceable | Replaceable | Replaceable |
| PTO Drive Shaft | Series 4 | Series 4 | Series 4 |
| Driveline Protection | Shear Pin or Slip Clutch | Shear Pin or Slip Clutch | Shear Pin or Slip Clutch |
| Blade Holder | Pan | Pan | Pan |
| Gearbox Rating | 55 HP | 55 HP | 55 HP |
| Blades | 1/2" x 3" | 1/2" x 3" | 1/2" x 3" |
| Wheel Type | Laminated | Laminated | Laminated |
| Hub Type | Greaseable | Greaseable | Greaseable |
| Hitch | Cat 1 | Cat 1 | Cat 1 |
| Gearbox Warranty | 5 year limited | 5 year limited | 5 year limited |
| Guarding Options | Rubber Guards or Chains | Rubber Guards or Chains | Rubber Guards or Chains |
| FPM | 12,232 FPM | 13,000 FPM | 14,500 FPM |
| Diagram |
