Telescopic Boom Pole Attachment
This hydraulically driven pole allows for easy transportation of your items, with the ability to extend your height by 72″. The pole has a 4×4 base with 3/8″ thick walls. The hydraulic extension arm is constructed from 3×3 tubing, and the manual extension from 2×2 tubing. The Arm is rated to carry 1200 lbs, with an angle limitation of 45 degrees. The manual extension arm can be positioned in 2 different height locations, one at 12″ and the other at 24″.
Available Colors:
Gray
Specs
Model:
Product Family | Specialty Equipment |
Product | TBP |
Description | TELESCOPIC BOOM POLE |
Extension Height | Up to 72" |
Load Capacity | 1,200 lbs |
Cylinder Size | 2-1/2" x 48" |
Notes | 16" Extended arm set at 40 degrees, 2-1/2" hole in bracket for strapping chains or hooks |

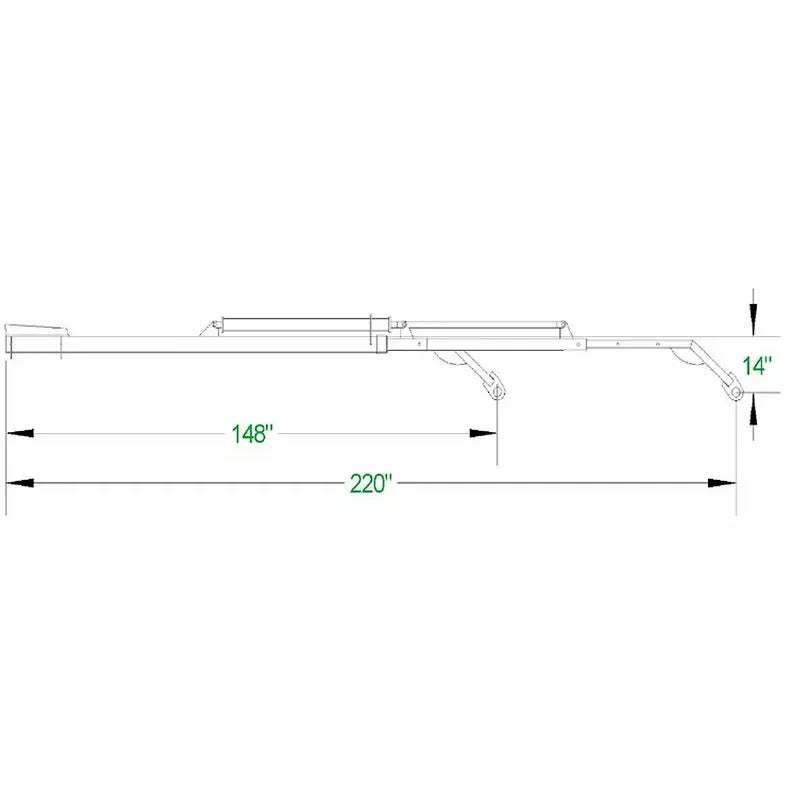

Diagram:
