Skid Steer & Loader
Attachments
Tractor & Skid Steer
Grapple Rake Attachment
Our Grapple Rakes are ideal for raking and loading debris. The shape of the grapple makes it easy to roll debris into tight places. A single grapple or two independent grapples are available. We use American-made cylinders, rated at 4,000 psi, to handle the toughest jobs.
Our Compact Tractor Grapple Rake is for use on tractors less than 40 HP and is built heavy enough for rigorous use, but light enough for compact tractors. Our re-designed Standard Duty Grapple Rakes are constructed from 3/8th AR400 Steel and are rated for machines with 35-60 HP. The new design provides more strength, combined with a lower weight to maximize your grappling power. Our Heavy Duty Rakes are built with ½” top-quality steel and are rated for 50-70 HP machines. Our X-treme Grapple Rakes are built with ½” top-quality steel and are rated for 50-70 HP machines.
Available Colors:
Models
Specs:
Product Family | Compact Tractor Grapple Rake |
Product | CTGR48 |
Description | COMPACT TRACTOR GRAPPLE RAKE, 48” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 48" |
Notes | Unique design makes it easy to roll debris into tight piles |

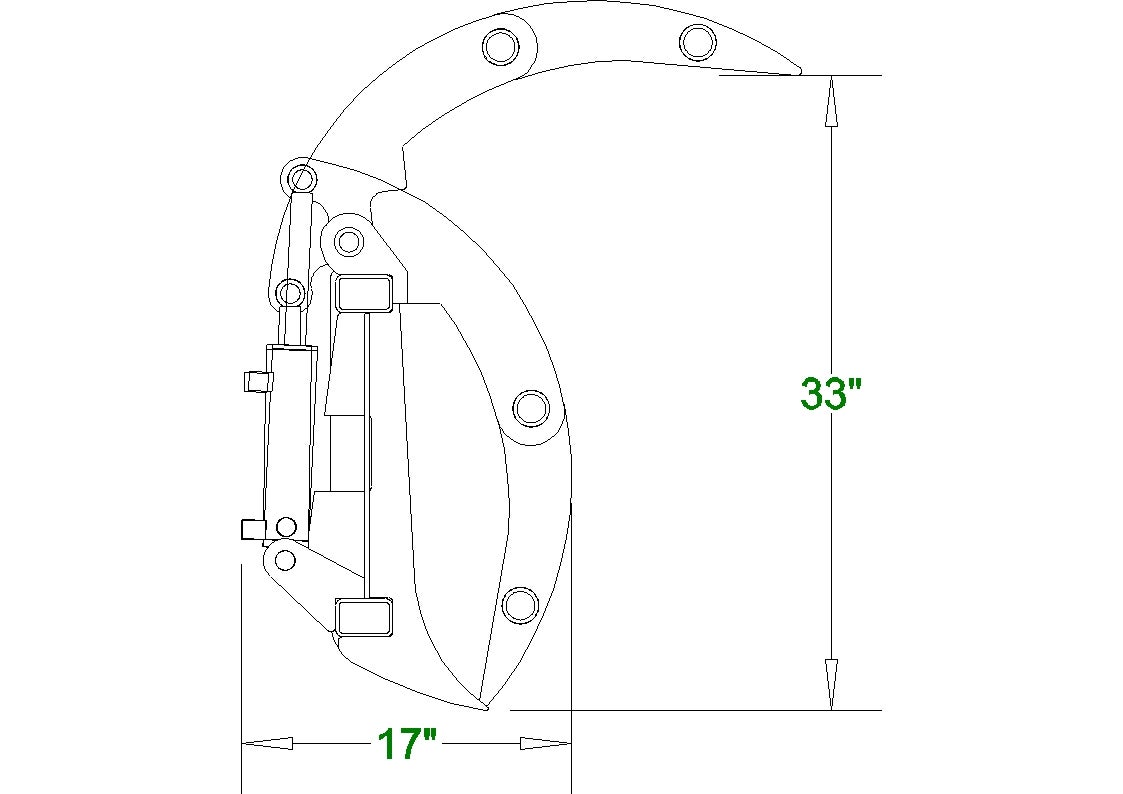

Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGR54 |
Description | COMPACT TRACTOR GRAPPLE RAKE, 54” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 54" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGR60 |
Description | COMPACT TRACTOR GRAPPLE RAKE, 60” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 60" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGR63 |
Description | COMPACT TRACTOR GRAPPLE RAKE, 63” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 63" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGR66 |
Description | COMPACT TRACTOR GRAPPLE RAKE, 66” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 66" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGR72 |
Description | COMPACT TRACTOR GRAPPLE RAKE, 72” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 72" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGRDC60 |
Description | COMPACT TRACTOR DUAL CYL GRAPPLE RAKE, 60” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 60" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGRDC66 |
Description | COMPACT TRACTOR DUAL CYL GRAPPLE RAKE, 66” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 66" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Compact Tractor Grapple Rake |
Product | CTGRDC72 |
Description | COMPACT TRACTOR DUAL CYL GRAPPLE RAKE, 72” |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for tractors 40 HP or less |
Working Width | 72" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Standard Duty Grapple Rake |
Product | ARSGR63 |
Description | STANDARD GRAPPLE RAKE (3/8), 63” |
Material Thickness | 3/8" AR400 Steel |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for machines 35-60 HP |
Working Width | 63" |
Notes | Unique design makes it easy to roll debris into tight piles |

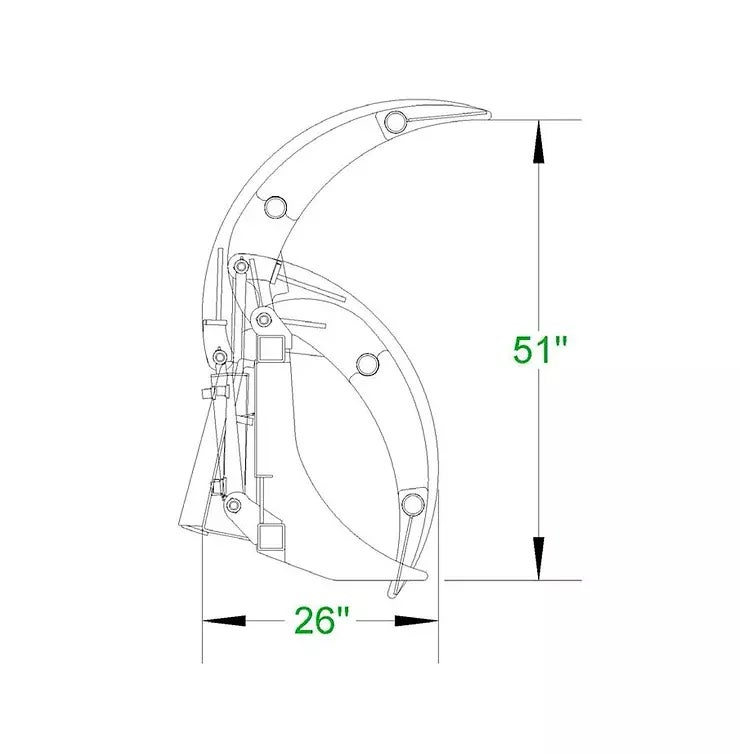

Diagram:

Product Family | Standard Duty Grapple Rake |
Product | ARSGR66 |
Description | STANDARD GRAPPLE RAKE (3/8), 66” |
Material Thickness | 3/8" AR400 Steel |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for machines 35-60 HP |
Working Width | 66" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Standard Duty Grapple Rake |
Product | ARSGR72 |
Description | STANDARD GRAPPLE RAKE (3/8), 72” |
Material Thickness | 3/8" AR400 Steel |
Cylinder Size | 2" x 6" 4,000 PSI American Made |
RPM | Recommended for machines 35-60 HP |
Working Width | 72" |
Notes | Unique design makes it easy to roll debris into tight piles |
Diagram:

Product Family | Heavy Duty Grapple Rake |
Product | HDGR63 |
Description | HEAVY DUTY GRAPPLE RAKE, 63” |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 50-70 HP machines |
Working Width | 63" |
Notes | Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles. |
Diagram:

Product Family | Heavy Duty Grapple Rake |
Product | HDGR66 |
Description | HEAVY DUTY GRAPPLE RAKE, 66” |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 50-70 HP machines |
Working Width | 66" |
Notes | Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles. |
Diagram:

Product Family | Heavy Duty Grapple Rake |
Product | HDGR72 |
Description | HEAVY DUTY GRAPPLE RAKE, 72” |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 50-70 HP machines |
Working Width | 72" |
Notes | Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles. |
Diagram:

Product Family | Heavy Duty Grapple Rake |
Product | HDGR78 |
Description | HEAVY DUTY GRAPPLE RAKE, 78” |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 50-70 HP machines |
Working Width | 78" |
Notes | Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles. |
Diagram:

Product Family | Heavy Duty Grapple Rake |
Product | HDGR81 |
Description | HEAVY DUTY GRAPPLE RAKE, 81” |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 50-70 HP machines |
Working Width | 81" |
Notes | Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles. |
Diagram:

Product Family | Heavy Duty Grapple Rake |
Product | HDGR84 |
Description | HEAVY DUTY GRAPPLE RAKE, 84” |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 50-70 HP machines |
Working Width | 84" |
Notes | Available as a single grapple or two independent grapples. Unique design makes it easy to roll debris into tight piles. |
Diagram:

Product Family | X-Treme Duty Grapple Rake |
Product | XGRT63 |
Description | X-TREME GRAPPLE RAKE W/ TEETH, 63” |
Material Thickness | 1/2" top quality steel |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 65 HP and above machines |
Working Width | 63" |
Notes | 23 Series Teeth Standard and has a full 51" opening |

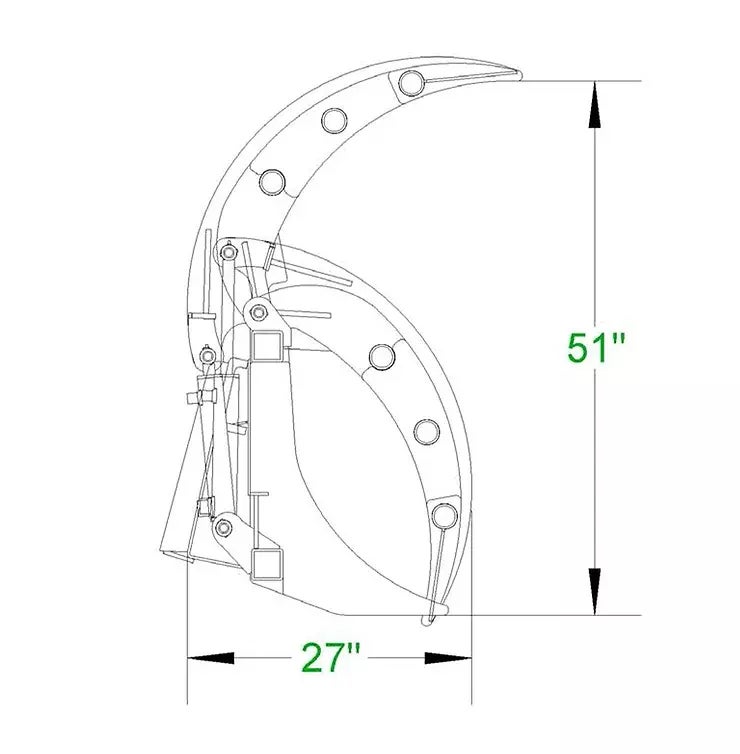

Diagram:

Product Family | X-Treme Duty Grapple Rake |
Product | XGRT66 |
Description | X-TREME GRAPPLE RAKE W/ TEETH, 66” |
Material Thickness | 1/2" top quality steel |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 65 HP and above machines |
Working Width | 66" |
Notes | 23 Series Teeth Standard and has a full 51" opening |
Diagram:

Product Family | X-Treme Duty Grapple Rake |
Product | XGRT72 |
Description | X-TREME GRAPPLE RAKE W/ TEETH, 72” |
Material Thickness | 1/2" top quality steel |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 65 HP and above machines |
Working Width | 72" |
Notes | 23 Series Teeth Standard and has a full 51" opening |
Diagram:

Product Family | X-Treme Duty Grapple Rake |
Product | XGRT78 |
Description | X-TREME GRAPPLE RAKE W/ TEETH, 78” |
Material Thickness | 1/2" top quality steel |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 65 HP and above machines |
Working Width | 78" |
Notes | 23 Series Teeth Standard and has a full 51" opening |
Diagram:

Product Family | X-Treme Duty Grapple Rake |
Product | XGRT81 |
Description | X-TREME GRAPPLE RAKE W/ TEETH, 81” |
Material Thickness | 1/2" top quality steel |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 65 HP and above machines |
Working Width | 81" |
Notes | 23 Series Teeth Standard and has a full 51" opening |
Diagram:

Product Family | X-Treme Duty Grapple Rake |
Product | XGRT84 |
Description | X-TREME GRAPPLE RAKE W/ TEETH, 84” |
Material Thickness | 1/2" top quality steel |
Cylinder Size | 2" x 10" 4,000 PSI |
RPM | Recommended for 65 HP and above machines |
Working Width | 84" |
Notes | 23 Series Teeth Standard and has a full 51" opening |
Diagram:

Product Family | Severe Duty Grapple Rake |
Product | SVGR72 |
Description | SEVERE DUTY GRAPPLE RAKE, 72” |
RPM | Recommended for 80 HP and above machines |
Working Width | 72" |
Notes | Oversized pins and bushings, single or dual grapples available, & oversized step for ease of entering machine |

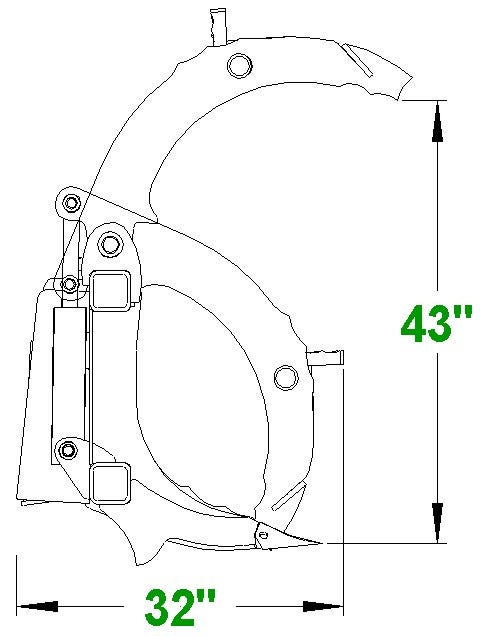

Diagram:

Product Family | Severe Duty Grapple Rake |
Product | SVGR84 |
Description | SEVERE DUTY GRAPPLE RAKE, 84” |
RPM | Recommended for 80 HP and above machines |
Working Width | 84" |
Notes | Oversized pins and bushings, single or dual grapples available, & oversized step for ease of entering machine |
Diagram:
