Skid Steer & Loader
Attachments
Multi-Purpose
Angle Blade Attachment
Our Multi-Purpose Angle Blade is different from most. Our engineers have designed this Multi-Purpose Angle Blade to be used as a snow plow and a angle blade with ease. To use this as a snow plow, simply remove the center pin. This allows the blade to tip when hitting something. Our powerful springs retract the blade into position as soon as the object is cleared.
To use as an angle blade, leave the center pins in, and you are ready to move some earth. This is a 4 way dozer blade, up and down from your skid steer, and side to side from the attachment. Our plows have 1/2″ thick 6″ wide replaceable bolt on cutting edges. The blade comes with two 3″ bore 6″ stroke cylinders, couplings, and hoses so the attachment is ready to use when it is received.
Available Colors:
Specs
Model:
| Product Family | Multi-Purpose Angle Blade |
| Product | MPAB72 |
| Description | MULTI-PURPOSE ANGLE BLADE, 72” |
| Material Thickness | 3/16" Moldboard |
| Cylinder Size | 3" x 6" |
| Working Width | 72" |

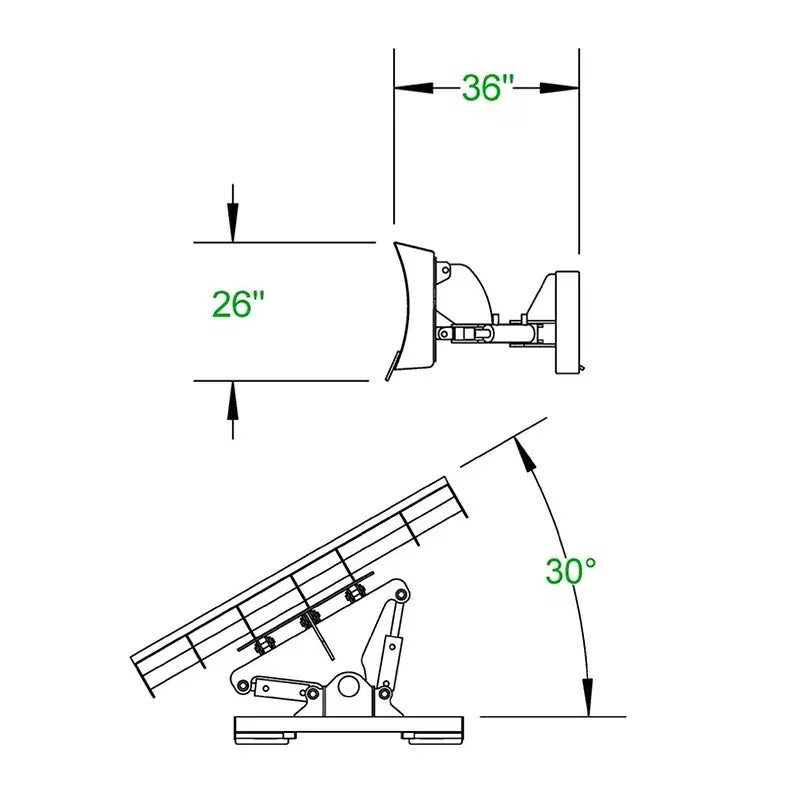

Diagram:
| Product Family | Multi-Purpose Angle Blade |
| Product | MPAB84 |
| Description | MULTI-PURPOSE ANGLE BLADE, 84” |
| Material Thickness | 3/16" Moldboard |
| Cylinder Size | 3" x 6" |
| Working Width | 84" |
Diagram:
| Product Family | Multi-Purpose Angle Blade |
| Product | MPAB96 |
| Description | MULTI-PURPOSE ANGLE BLADE, 96” |
| Material Thickness | 3/16" Moldboard |
| Cylinder Size | 3" x 6" |
| Working Width | 96" |
Diagram:
| Product Family | Multi-Purpose Angle Blade |
| Product | MPAB108 |
| Description | MULTI-PURPOSE ANGLE BLADE, 108” |
| Material Thickness | 3/16" Moldboard |
| Cylinder Size | 3" x 6" |
| Working Width | 108" |
Diagram:
| Product Family | Multi-Purpose Angle Blade |
| Product | MPAB120 |
| Description | MULTI-PURPOSE ANGLE BLADE, 120” |
| Material Thickness | 3/16" Moldboard |
| Cylinder Size | 3" x 6" |
| Working Width | 120" |
Diagram:
